Gamber Johnson Zebra ZQ500 Printer Mount 7160-1053

Gamber Johnson Printer Mount 7160-1053

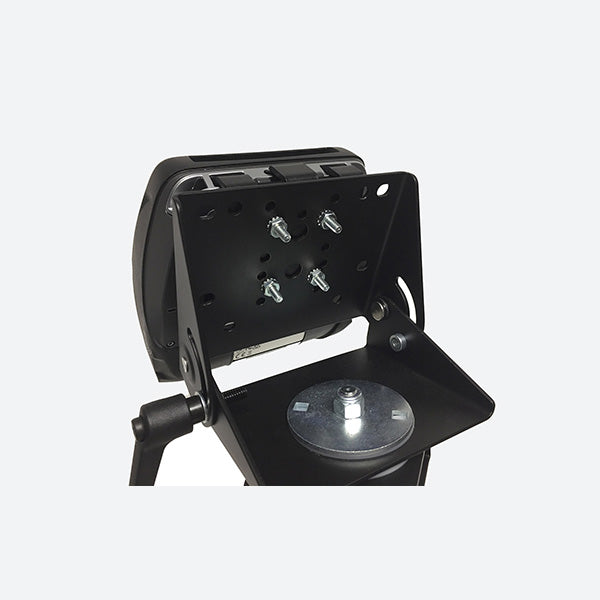

Designed for the Zebra ZQ500 mobile thermal printer series, the Gamber Johnson 7160-1053 printer mount enables the printer to be mounted on a wide range of locations and equipment. Providing 4 PEM studs, the 7160-1053 makes the ZQ500 compatible with with any mounting equipment that features an AMPs hole pattern and installs quickly and easily. Perfect for providing a stable mounting solution in a material handling mobile or static environment, the 7160-1053 is a great accessory to the Zebra printer. If you have any questions about the 7160-1053 or would like a custom quote for a complete printer mounting solution or even the Zebra printer itself, call our sales team at 816-388-0035

7160-1053 Features

• Low profile Mount configurations for AMPS hole pattern

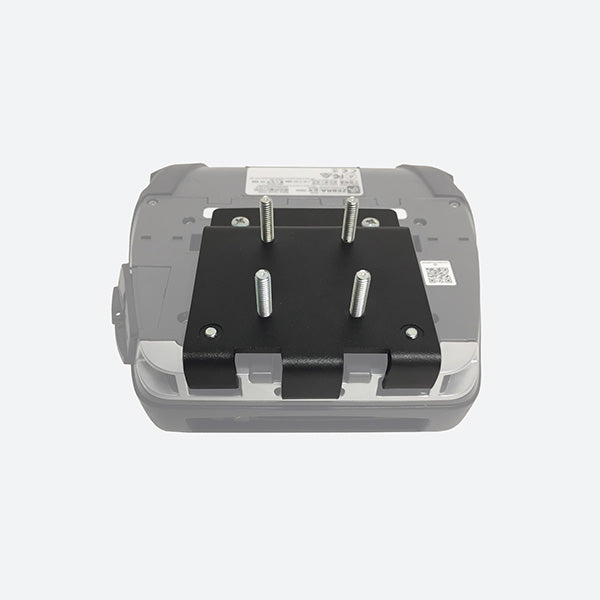

• 4 PEM studs (size 10-32) are part of the bracket for simple attachment

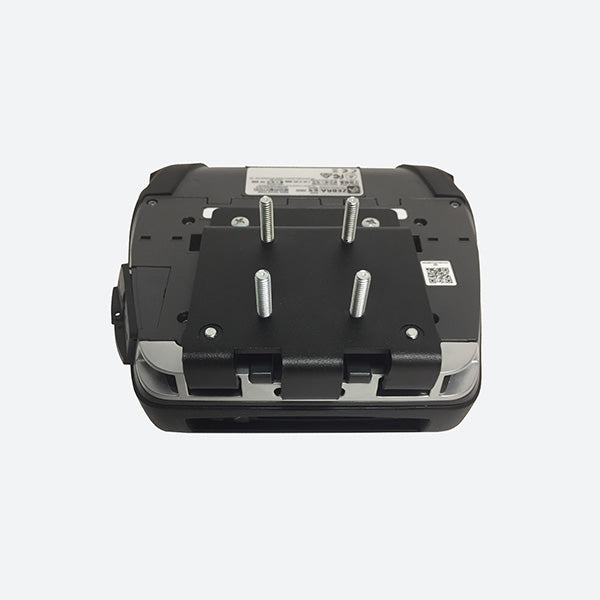

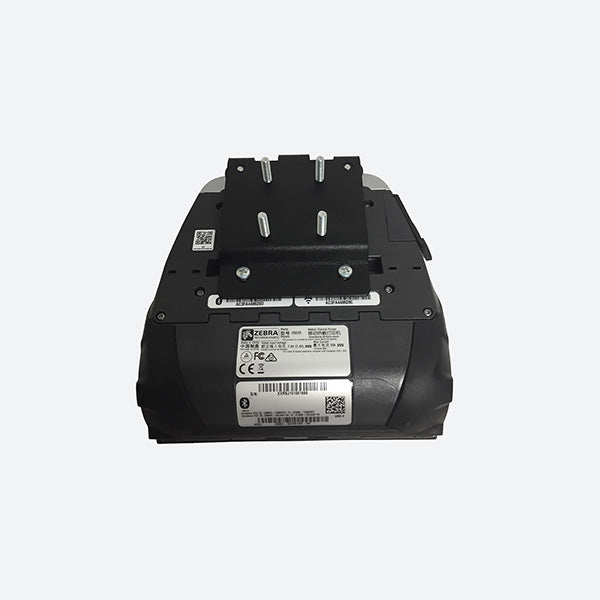

• The three tabs insert into the printer to safely secure your printer
• Compatible with Zebra P/N: P1063406-032 Battery Eliminator Dummy Battery Pack

7160-1053 Specifications

Weight

0.45 lbs. / 0.20 kg

Height

0.84" / 2.13 cm

Width

3.15" / 8.00 cm

Depth

3.70" / 9.40 cm

Compatible the following Zebra printers:

• ZQ510
• ZQ511
• ZQ520
•  ZQ521
