Gamber Johnson Getac K120 Tablet Dock TRI RF 7160-1084-03

Gamber Johnson Dock 7160-1084-03

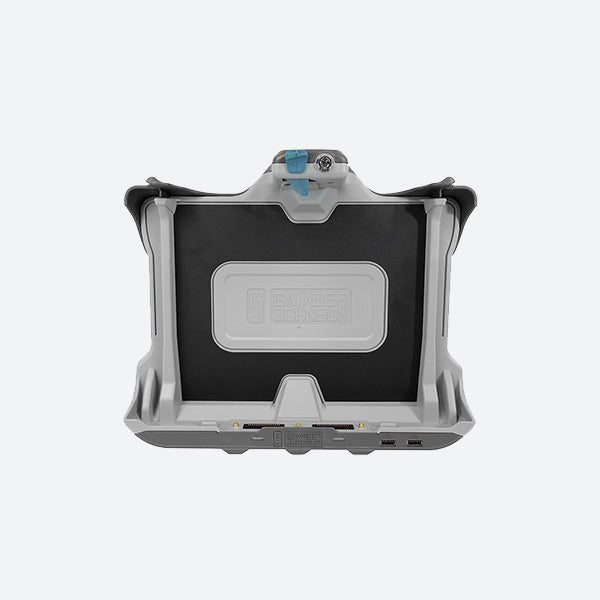

The Gamber Johnson 7160-1084-03 docking station designed for the Getac K120 Tablet features power and port replication with TRI RF pass through. Ports on a Gamber Johnson dock allow a user to interface with the K120 with peripherals, USB sticks, display cables etc. without causing wear and tear or damage to the ports on the tablet itself. Interface options on the 7160-1084-03 include Ethernet, USB 2.0, USB 3.0, VGA, HDMI and RS232 serial ports. With Tri RF pass through the 7160-1084-03 also allows a user to connect external antennas to boost signals in the K120 such as 4G LTE or GPS. The dock is only compatible with the Getac K120 in tablet only mode without the optional keyboard attached. If you have questions or are interested in a quote for the 7160-1084-03 or a complete solution including the Getac K120 rugged tablet itself please send your requirements to sales@ruggedordie.com and our sales team will respond within 1 business day.

7160-1084-03 Features

• Docking station design accommodates tablet's rotating hand strap (sold separately)
• Easy to use one-handed operation:

                -Insert bottom of computer into the docking station, push top of computer against latch button until latch engages

                -To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station

• Access to all tablet control buttons and ports while tablet is docked
• Optional keyed lock for theft deterrence
• Upward-facing I/O ports; integrated cable strain relief and cable management system
• Vesa 75mm mounting pattern
• Rounded edges to enhance personal safety
• TRI-RF SMA

7160-1084-03 Specifications

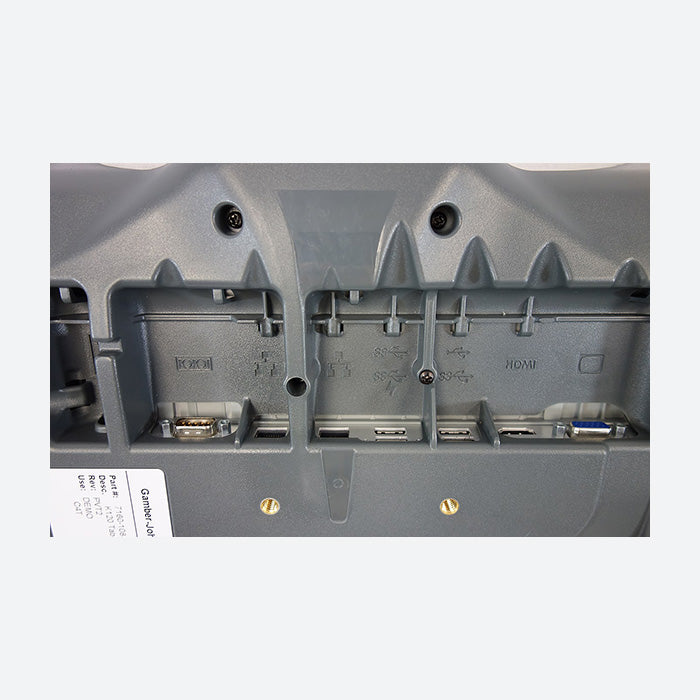

Port Replicators:

Ethernet (2) - RJ45
USB 2.0 (2) - 4 pin forward-facing, fast-charging (1500 mA)
USB 2.0 (1) - 4 pin rear-facing (500 mA)
USB 3.0 (1) - 9 pin fast-charging (1500 mA)
USB 3.0 (2) - 9 pin (900 mA)
VGA (1) - D-sub 9 pin
HDMI (1) - 19 pin
RS232 Serial (1)
Power Input - 19 Vdc

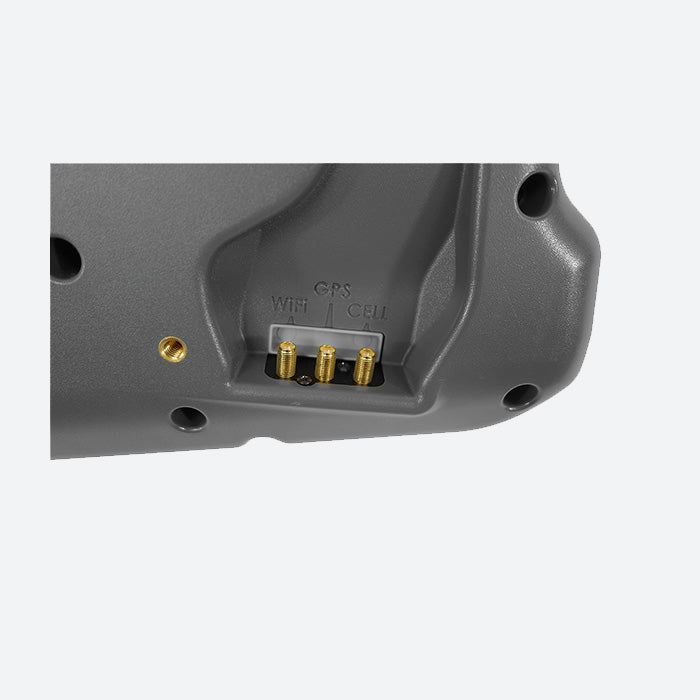

Antenna Pass-through:

Tri RF
