Gamber Johnson Flat Surface Mount 7160-1105

Gamber Johnson Vehicle Base 7160-1105

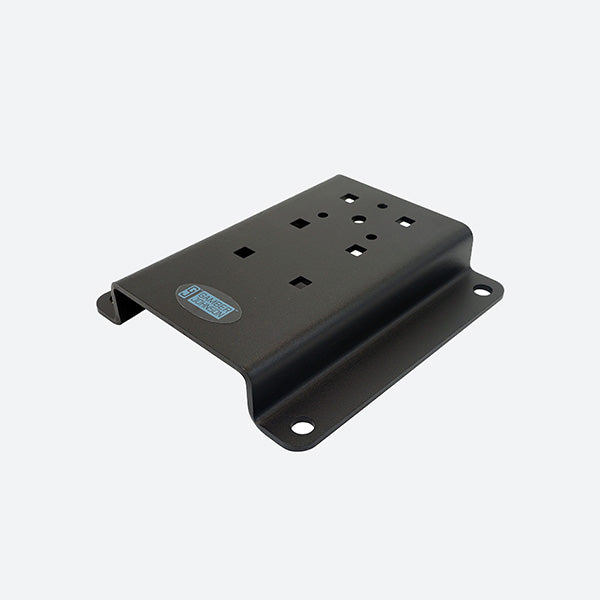

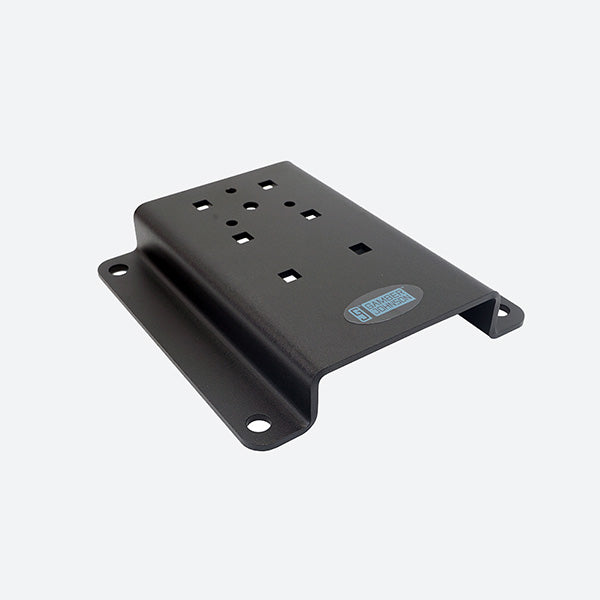

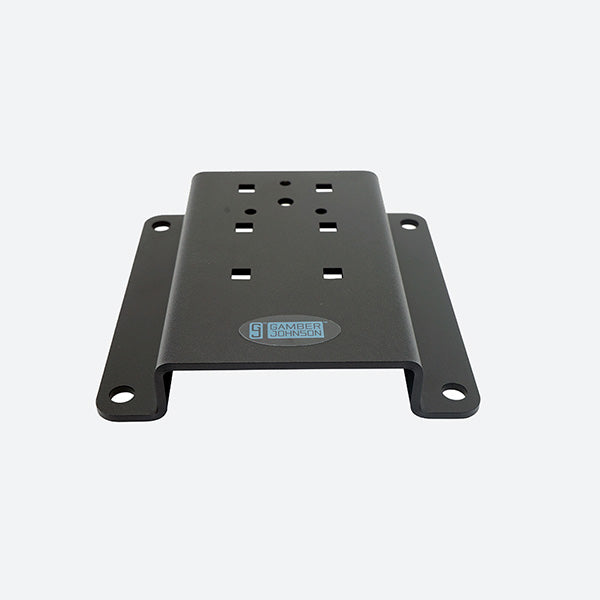

While a vehicle specific mounting base is ideal and will provide easier installation, sometimes those aren't an option. The Gamber Johnson 7160-1105 is a universal base that allows mounting on any flat surface. Specifically designed to mount to a Linde H70 or 80D forklift, the 7160-1105 can be mounted on any stable flat surface with drilling. The 7160-1105 kit includes a backer plate to ensure a stable base for a computer mounting solution. The hole pattern on this universal base is compatible with all Gamber Johnson lower poles to allow for a raised solution or Gamber Johnson motion attachments can attach directly to the flat surface mount. The 7160-1105 can be purchased directly on ruggedordie.com or a Rugged or Die sales rep can help develop a complete in-vehicle mounting solution, call a live agent at 816-388-0035 today!

7160-1105 Features

• Designed for the Linde H70/80D forklift with cab.
• Mounts to the right of the operator.
• Design allows the forklift's engine to be serviced without removing the computer or mount.
• Backer plate is included to provide secure fastening points.
• Compatible with Gamber-Johnson lower poles and motion attachments.
  Mount will work on other flat surfaces as well.

7160-1105 Specifications

Weight

4.7 lbs. / 2.13 kg

Height

1.50" / 3.81 cm

Width

8.00" / 20.32 cm

Depth

7.75" / 19.69 cm
