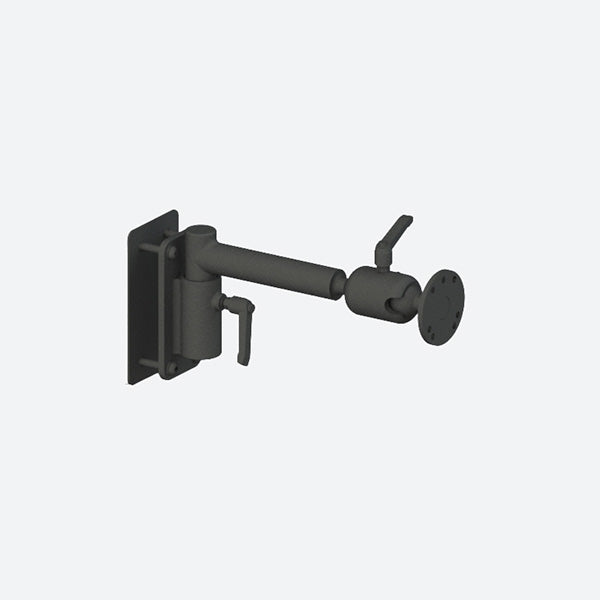

Gamber Johnson Zirkona Pivot Arm w 4 in. Extension and AMPs Plate 7160-1132-02

Gamber Johnson Full Mount 7160-1132-02

Built as a low profile mounting solution for devices or docks with an AMPs hole pattern, the 7160-1132-02 is a fantastic system for both static or mobile vertical device mounting. Ideal for mounting a small device like a tablet or phone, the 7160-1132-02 features a pivoting arm with 4 in. (101 mm) extension bringing the mounted tablet or peripheral moderately closer to the user while also able to pivot and stow flat to the mounting location. The Zirkona joiner allows the included AMPs mounting plate to position the mounted tablet or device to the angle and position. Rugged or Die sales reps can help answer any questions or provide a quote for the 7160-1132-02 or any other Gamber Johnson or in vehicle equipment such as a rugged tablet, email your requirements to sales@ruggedordie.com and we will respond within 1 business day!

7160-1132-02 Features

  • This drilled solution is mounted from the dash and reinforced with a back plate that is secured inside the dash. This helps to dispurse the weight of the device being mounted reducing the risk of damaging the dash.
  • Mount designed with the NEC and AMP's hole patterns to support your tablet or phone mount
  • Designed for mounting in many vehicles
  • Ability to adjust and then secure desired positioning
  • Parts assembled using a thread locking glue at the warehouse
  • Designed to Mount with a Panasonic F1/N1 Cradle, Samsung Dock or Cradle, Getac ZX70

Kit Includes:

  • Rotating Wall Mount (7110-1227)
  • Medium 2-Down Joiner with Brake (7110-1259)
  • Pivot Mount Back Plate (17807)
  • 4"/100mm Extension (14142)
  • Round Plate (14144)
  • Thread Adapter (14145)

7160-1132-02 Specifications

Weight

2.5lbs / 1.18 kg

Height

4.6 in / 11.6 cm

Width

2.3 in / 5.7 cm

Depth

10 in / 25.4 cm

$91.11 USD
$91.11 USD
Shipping calculated at checkout.
