Gamber Johnson Zirkona Pivot Arm w 100mm Extension and VESA 100mm Mounting Plate 7160-1132-05

Gamber Johnson Full Mount 7160-1132-05

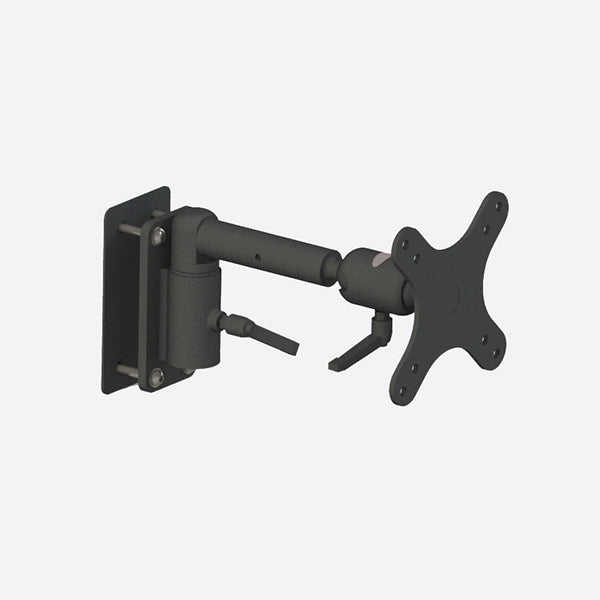

The Gamber Johnson 7160-1132-05 is designed as a universal mounting system for a static or mobile vertical location. Ideal for mounting a small device like a tablet, the 7160-1132-05 features a pivoting arm with 100mm (3.9 inches) extension bringing the mounted tablet or peripheral closer to the user but also able to pivot and stow flat to the mounting wall location. If a longer extension is required for the device mounting solution, please consider the Gamber Johnson 7160-1132-08 kit which includes a 150mm extender. The Zirkona joiner on the 7160-1132-05 allows the included VESA 100mm mounting plate to position the mounted tablet or device to the optimal use angle. The VESA 100mm plate conveniently includes both the 100mm and 75mm mounting patterns for diverse compatibility. Rugged or Die sales reps can help answer any questions or provide a quote for the 7160-1132-05 or any other Gamber Johnson equipment, email your requirements to sales@ruggedordie.com and we will respond within 1 business day!

7160-1132-05 Features

  • This drilled solution is mounted from the dash and reinforced with a back plate that is secured inside the dash. This helps to disperse the weight of the device being mounted reducing the risk of damaging the dash.
  • Mount designed with the NEC and AMP's hole patterns to support your tablet or phone mount.
  • Designed for mounting in many vehicles.
  • Ability to adjust and then secure desired positioning.
  • Parts assembled using a thread locking glue at the warehouse.

Kit Includes:

  • Rotating Wall Mount (7110-1227)
  • Medium 2-Down Joiner With Brake (7110-1259)
  • Pivot Mount Back Plate (17807)
  • 4"/100mm Extension (14142)
  • VESA 75/100 Plate (14140)
  • Thread Adapter (14145)

7160-1132-05 Specifications

Weight

2.45 lbs / 1.11 kg

Height

4.6 in / 11.68 cm

Width

2.3 in / 5.84 cm

Depth

10 in / 25.4 cm

$91.11 USD
$91.11 USD
Shipping calculated at checkout.
