Gamber-Johnson

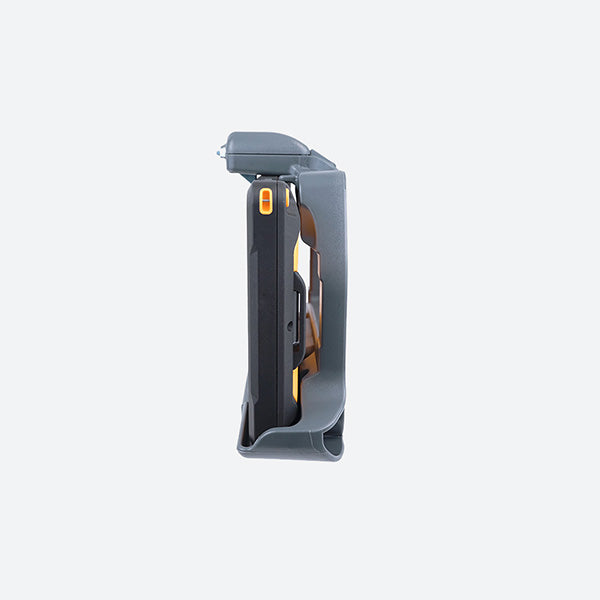

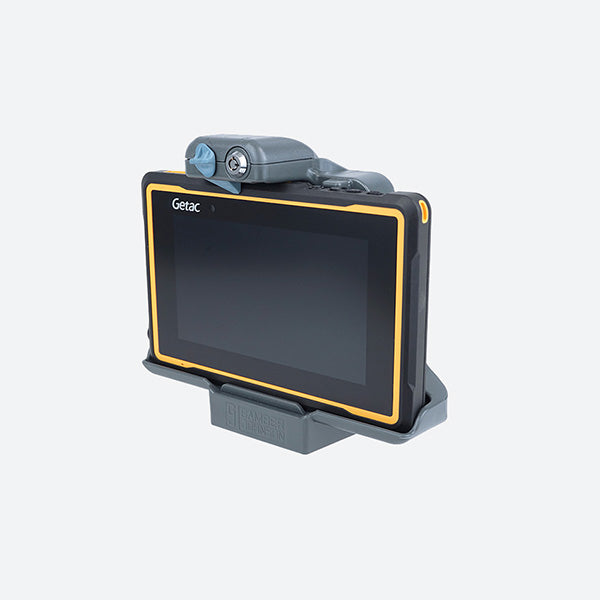

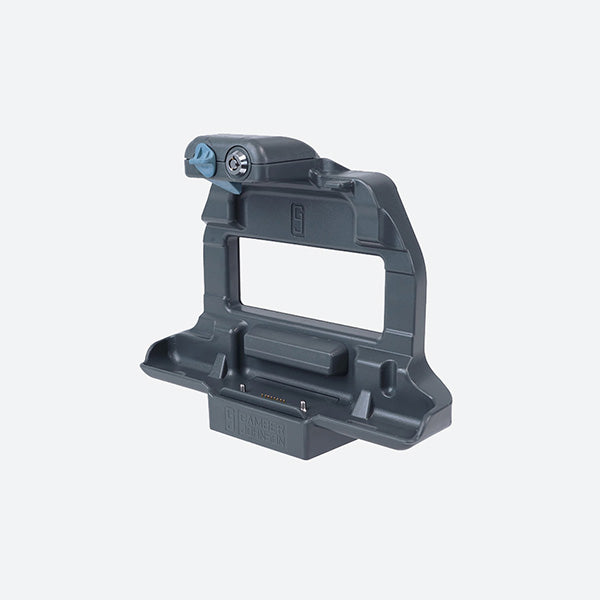

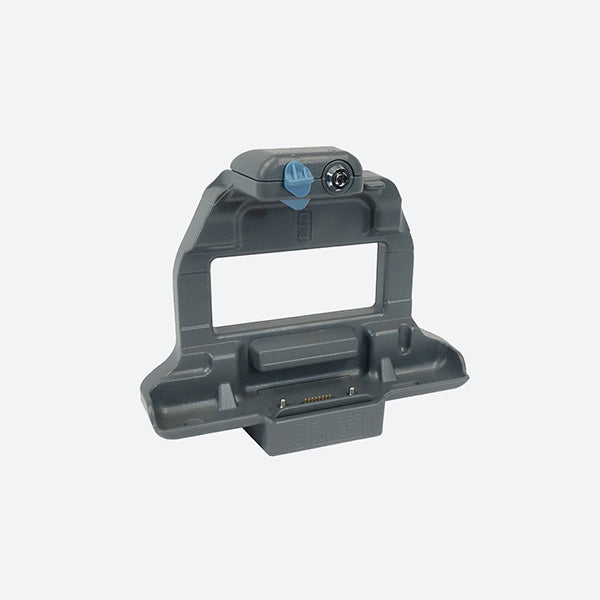

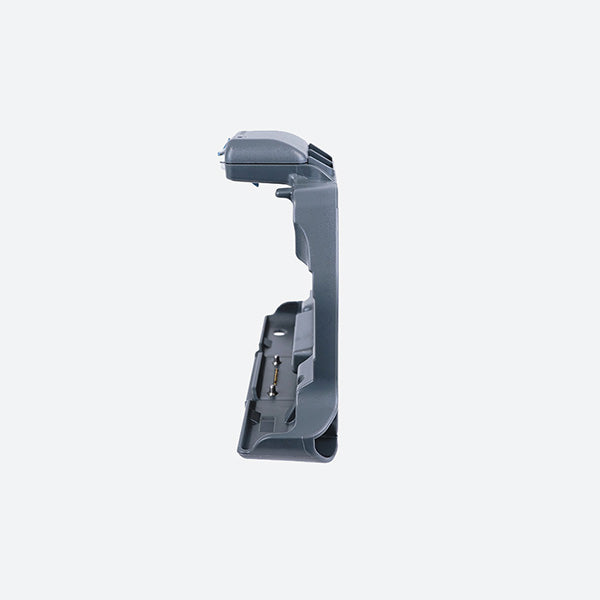

Gamber Johnson Getac ZX70 Non-Powered Cradle 7160-1135-00

Gamber Johnson Cradle 7160-1135-00

While lacking features found in a dock, the Gamber Johnson 7160-1135-00 cradle can securely mount a Getac ZX70 and deters theft. The 7160-1135-00 does not include any other port replication or rf pass through like a dock would but features a high visibility touch point locking latch. There are a number of dock options for the Getac ZX70 that provide port replication and or RF antenna pass through, if you require a dock instead of a cradle contact our team for assistance. If you need a custom quote for the 7160-1135-00, a complete mounting solution with the cradle or the ZX70 tablet itself, Rugged or Die is pleased to offer the entire Getac and Gamber Johnson catalogs of equipment, Email your requirements to sales@ruggedordie.com and we will respond within 1 business day.

7160-1135-00 Features

  • Designed for the Getac ZX70 tablet computer and backwards compatible with the Z710 tablet
  • Easy to use one-handed operation:
  • Insert bottom of computer into the cradle, push top of computer against latch button until latch engages
  • To remove, push up on latch-button with thumb to disengage and pull computer out of the cradle
  • Cradle design accommodates rotating hand strap (sold separately)
  • Access to all tablet control buttons and USB port while tablet is cradled
  • Optional lock (keyed alike) for theft deterrence
  • Rounded edges to enhance personal safety
  • Gamber-Johnson rugged construction and reliability
  • Extremely light-weight composite/aluminum design
  • VESA 75 mounting pattern

7160-1135-00 Specifications

Weight

0.90 lbs. / .41 kg (extremely light-weight)

Height

7.62 in / 19.35 cm

Width

8.87 in / 22.52 cm

Depth

3.12 in / 7.92 cm

Power Supply:

Not included - must use one of the following external power supplies:

  • Getac 22W Auto Power Adapter with Cigarette Lighter Connector (7300-0441)
  • Getac 22W Auto Power Adapter with Bare End Connection (7300-0474)
  • LIND 12-32V Material Handling Isolated Power Adapter (7300-0466)
  • LIND 20-60V Material Handling Isolated Power Adapter (7300-0467)

Testing Specifications:

  • Getac Certified
  • Vibration Tested: MIL-STD 810G Operational/Non-operational
  • Shock Crash Hazard: SAE J1455, Mechanical Shock: 40g
  • Cycle Test: Latch, lock, and docking connector - 30,000 cycles
  • FCC, CE, RoHS Certified

Antenna Pass-through:

  • No RF
