Gamber-Johnson

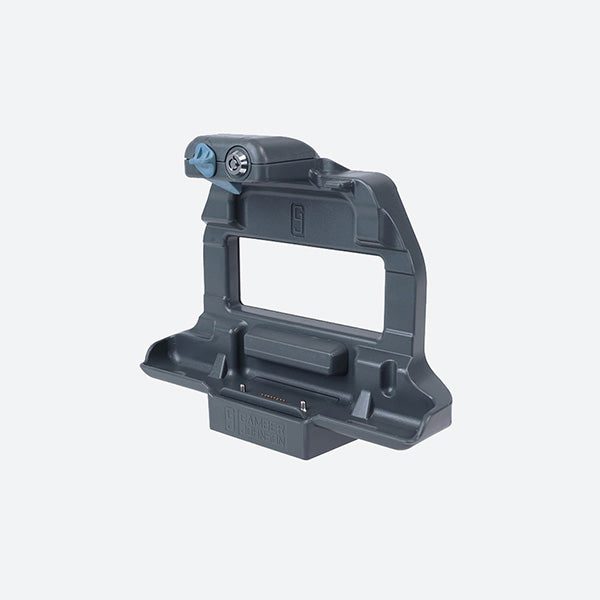

Gamber Johnson Getac ZX70 Powered Charging Cradle 7160-1135-01

Gamber Johnson Cradle 7160-1135-01

While not as robust in features as a dock, the Gamber Johnson 7160-1135-01 Charging Cradle can securely mount and charge a Getac ZX70 while docked. The 7160-1135-01 does not include a power supply but is compatible with a number of Getac auto and material handling specific power supplies. While it can charge the ZX70, the 7160-1135-01 does not include any other port replication or rf pass through like a dock would. Featuring a high visibility touch point locking latch, the 7160-1135-01 can deter the rugged tablet from being stolen. If you need a custom quote for the 7160-1135-01 or the ZX70 tablet itself, Rugged or Die is pleased to offer the entire Getac and Gamber Johnson catalogs of equipment, Email your requirements to sales@ruggedordie.com and we will respond within 1 business day.

7160-1135-01 Features

  • Designed for the Getac ZX70 tablet computer and backwards compatible with the Z710 tablet
  • Easy to use one-handed operation:

                -Insert bottom of computer into the cradle, push top of computer against latch button until latch engages

                -To remove, push up on latch-button with thumb to disengage and pull computer out of the cradle

  • POGO connector for reliable charging
  • Power cable strain relief
  • Cradle design accommodates rotating hand strap (sold separately)
  • Access to all tablet control buttons and USB port while tablet is cradled
  • Optional lock (keyed alike) for theft deterrence
  • Rounded edges to enhance personal safety
  • Gamber-Johnson rugged construction and reliability
  • Extremely light-weight composite/aluminum design
  • VESA 75 mounting pattern

7160-1135-01 Specifications

Weight

0.90 lbs. / .41 kg (extremely light-weight)

Height

7.62 in / 19.35 cm

Width

8.87 in / 22.52 cm

Depth

3.12 in / 7.92 cm

Power Supply:

Not included - must use one of the following external power supplies:

  • Getac 22W Auto Power Adapter with Cigarette Lighter Connector (7300-0441)
  • Getac 22W Auto Power Adapter with Bare End Connection (7300-0474)
  • LIND 12-32V Material Handling Isolated Power Adapter (7300-0466)
  • LIND 20-60V Material Handling Isolated Power Adapter (7300-0467)

Testing Specifications:

  • Getac Certified
  • Vibration Tested: MIL-STD 810G Operational/Non-operational
  • Shock Crash Hazard: SAE J1455; Mechanical Shock: 40g
  • Cycle Test: Latch, lock, and docking connector - 30,000 cycles
  • FCC, CE, RoHS Certified

Port Replicators:

  • No port replication
  • Getac certified pogo connector
  • Power Input: 12 Vdc

Antenna Pass-through:

  • No RF
$225.72 USD
$225.72 USD
Shipping calculated at checkout.
