Gamber Johnson Samsung Galaxy Tab Active 2/3/5 Lite Charging Cradle 7160-1148-00

Gamber Johnson7160-1148-00

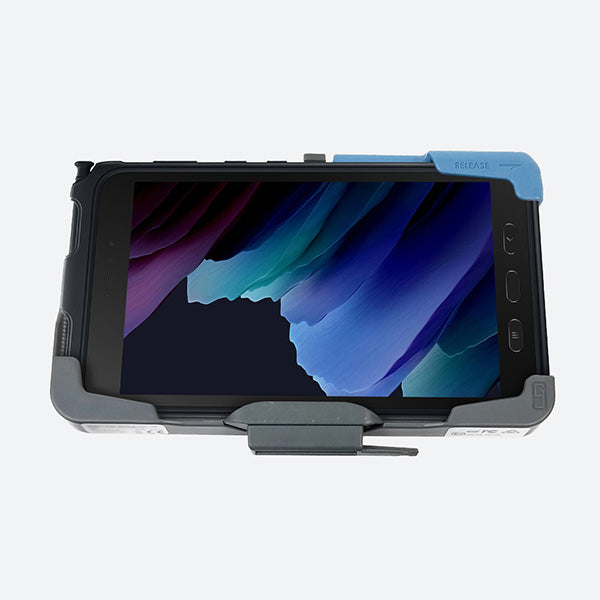

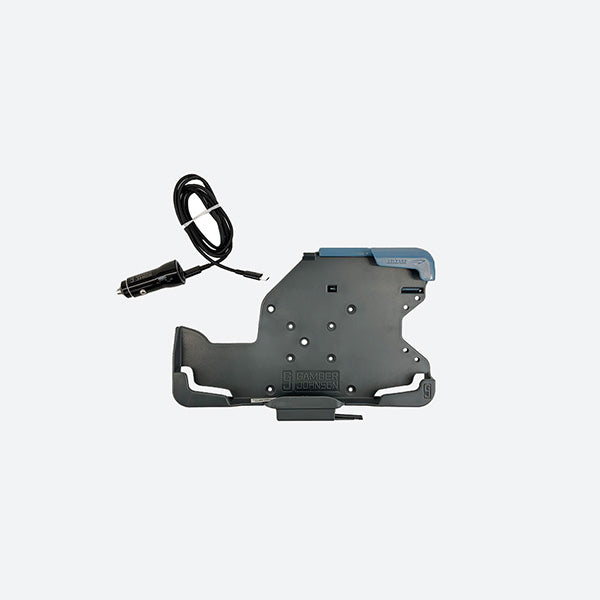

Able to secure a Samsung Galaxy Tab Active 2, 3 or 5 tablet and deter theft, the Gamber Johnson 7160-1148-00 has a locking latch and can power the tablet while docked. The 7160-1148-00 cradle kit includes a cigarette lighter tipped power adapter (Gamber Johnson part number 17376) that plugs into the USB-C input port. A Samsung Galaxy tablet can secure in the 7160-1148-00 while the operator retains access to all physical touchpoints, camera, stylus, buttons etc. Mounting equipment is required to convert the cradle into a full tablet mounting solution and the Rugged or Die sales team has experts in vehicle mounting. We would be happy to provide a free consultation to establish the optimal equipment for your needs! Email your requirements to sales@ruggedordie.com

7160-1148-00 Features

  • Designed for the Samsung Galaxy Tab Active2, 3, and 5 rugged tablet with rugged case
  • Direct access to the camera, stylus, and tablet control buttons while the tablet is safely cradled
  • VESA 75mm, M20 threads, and AMPS mounting hole patterns, compatible with Zirkona mounting products
  • Cradle design is compatible with Samsung’s built-in Near Field Communication (NFC); perform tasks with another NFC device without taking the Samsung tablet out of the cradle
  • Optional lock for theft deterrence
  • Simple, one-handed cradle operation
  • Composite design for reduced overall weight

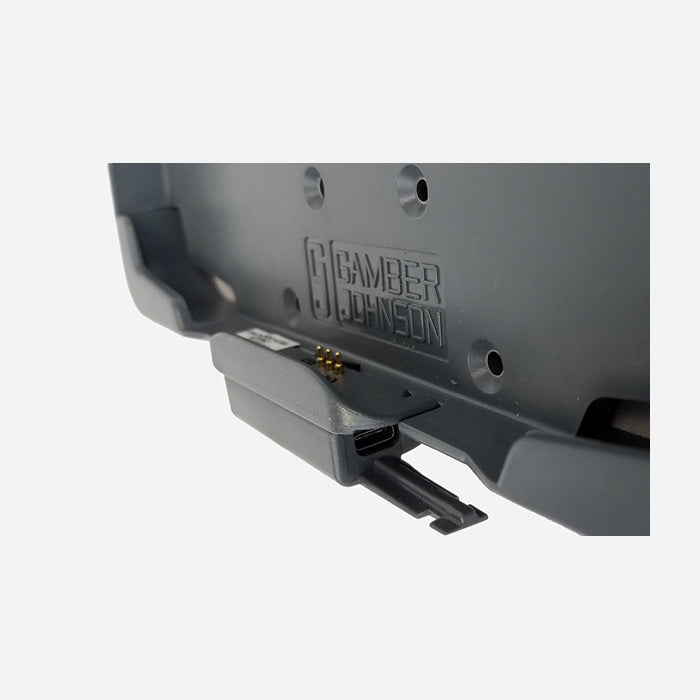

  • POGO pin connector with USB-C connector attaches to USB auto power adapter (included)

Kit Includes:

  • Samsung Tab Active2 and Tab Active3 Lite Charging Cradle (Item No. 7160-1148-00)
  • 12-24Vdc; 5V with Cigarette Lighter Adapter (Item No. 17376)

7160-1148-00 Specifications

Weight

0.5 lbs / 0.23 kg

Height

5.68 in / 14.43 cm

Width

9.27 in / 23.55 cm

Depth

1.9 in / 4.83 cm

Testing Specifications:

  • Vibration Tested: MIL-STD 810G Operational/Non-operational
  • Shock Crash Hazard: SAE J1455; Mechanical Shock: 40g
  • Cycle Test: Latch, lock, and docking connector - 30,000 cycles
  • Environmental: Humidity; High/low temperature Operational & Storage
  • E-Mark, FCC, CE, C-Tick, and RoHS conformance

Port Replicators:

  • USB-C

Antenna Pass-through:

  • No RF
