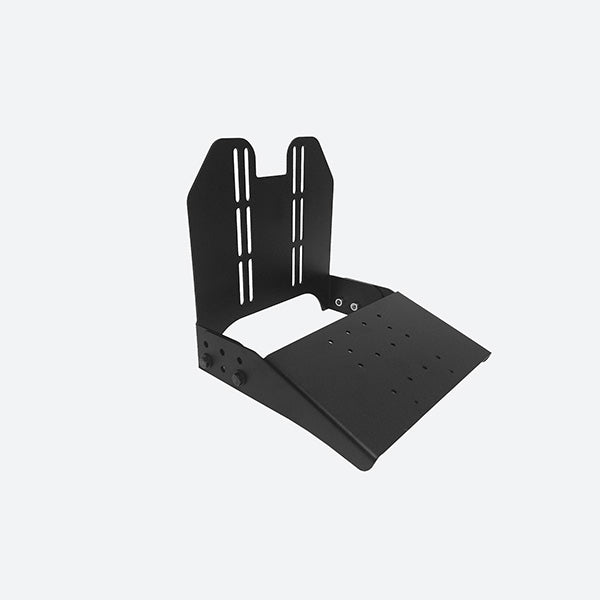

Gamber Johnson Fixed Tablet Keyboard Mount 7160-1157

Gamber Johnson Keyboard Mount 7160-1157

The 7160-1157 Gamber Johnson keyboard mount is intended to be able to mount a rugged tablet dock or cradle as well as a keyboard together and maximize space and efficiency. The keyboard tray on the 7160-1157 is set and cannot be tilted or adjusted, if tilt or storage of the keyboard is required, please contact our sales team for an alternative keyboard mount. A tablet dock would mount vertically and bolt through the 7160-1157 to an additional motion attachment or mounting surface. Including both AMPs and VESA mounting patterns, the keyboard mount is compatible with virtually any keyboard tray or keyboards that include a mounting pattern by default. If you require a custom quote or have any questions about the 7160-1157, the Rugged or Die sales team can be reached at 816-388-0035

7160-1157 Features

• Designed to position the keyboard tray and set it at 20 degrees
• Will hold a docking station and keyboard
• Accommodates many tablet docking stations
• Four (4) mounting hole patterns to attach keyboard:

  • AMPS (30mm x 38mm) - 2 mounting locations
  • 2.5 x 2.5 - 2 mounting locations
  • 75mm VESA
  • 2 x 7 Honeywell

7160-1157 Specifications

Weight

4.5 lbs / 2.04 kg

Height

9.0 in / 22.9 cm

Width

9.6 in / 24.4 cm

Depth

8.9 in / 22.6 cm
