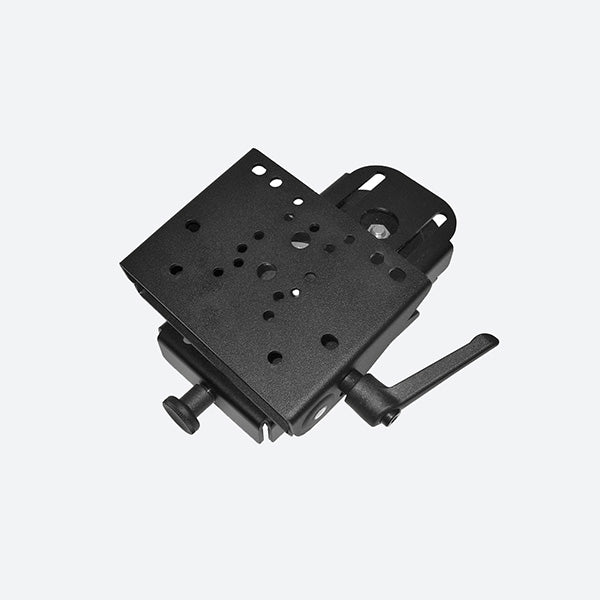

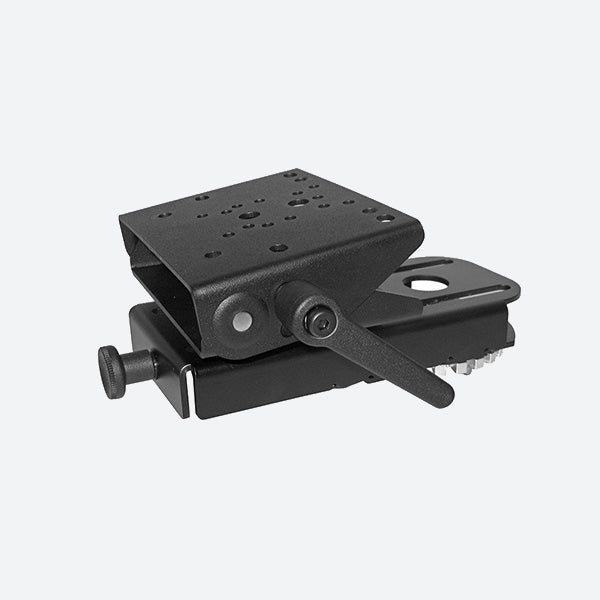

Gamber Johnson 6 Inch Locking Slide Arm w Short Clevis 7160-1160

Gamber Johnson Motion Attachment 7160-1160

Part of Gamber Johnson's original motion attachment line up, the 7160-1160 locking slide arm is a tried and true workhorse of vehicle computer mounting. While not providing as many premium options as the Mongoose or Mongoose XLE motion attachment lines, the 7160-1160 still is a durable and versatile computer mounting solution. Providing tilt, swivel, extension and locking rotation, the 7160-1160 can position a mounted rugged laptop or rugged tablet to an optimal position for use. The 7160-1160 motion attachment is 6 inches providing a compact solution for smaller vehicle cabins. The Rugged or Die sales department can help complete the 7160-1160 into a full computer mounting solution with a list of compatible pedestal mount equipment and can even provide a quote for a Panasonic TOUGHBOOK or Getac rugged laptop or tablet, send us an email with your needs to sales@ruggedordie.com and we will respond within 1 business day with a hassle free quote!

7160-1160 Features

• Entire motion attachment capable of rotating 360 degree with locking every 15 degrees
• Tilt capabilities: 45 degrees forward
• Swivel capabilities: 360 degrees
• The entire arm can rotate around 360 degrees with locking points at every 15 degrees
• Slide motion is up to 5.5 inches (13.97 cm) fore/aft
• To rotate the arm simply pull the front lever out, rotate to desired position and then release the lever
• Heavy duty, spring loaded steel, side pin was tested to 50,000+ cycles
• Can be mounted directly to a flat surface or on any Upper Pole, Center Pole, Low Profile Bracket, GJ console box via Smiley Face or 3-Bolt Hole pattern
• Heavy gauge steel construction for long-term durability
• Black powdercoat finish for maximum
• Mounting plate hole patterns: AMPS (4 hole rectangle shaped) - 3 locations, one turned 90 degrees
• NEC (3 hole triangle shaped)
• VESA 75mm
• Gamber-Johnson 2x4

7160-1160 Specifications

Weight

Weight: 5.2 lbs. (3.08 kg)

Height

Height: 3.9" (9.9 cm)

Width

Width: 7.2" (18.4 cm)

Depth

Length: 9.4" (23.9 cm)
