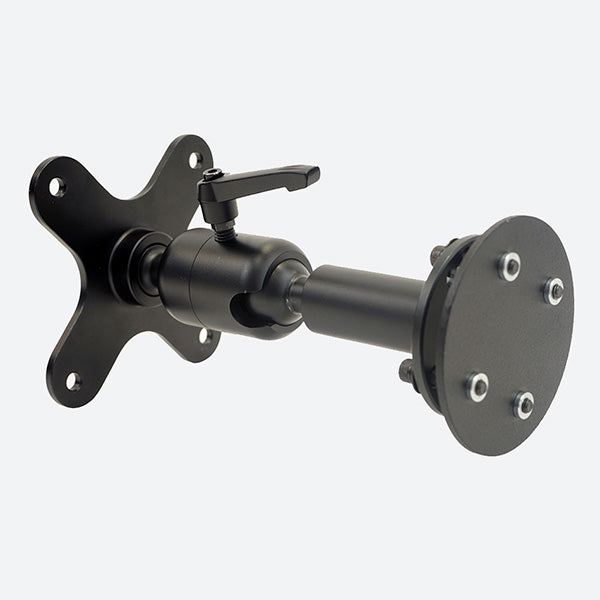

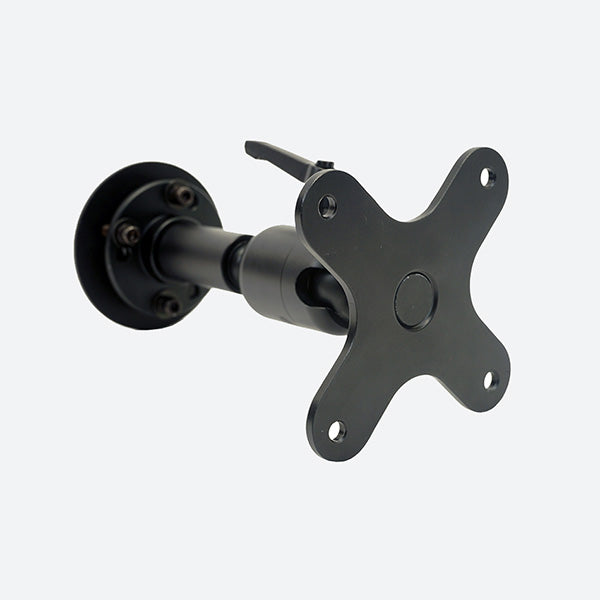

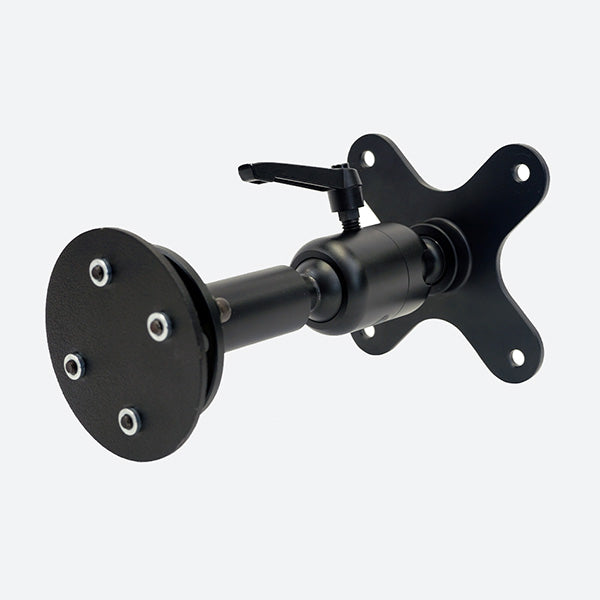

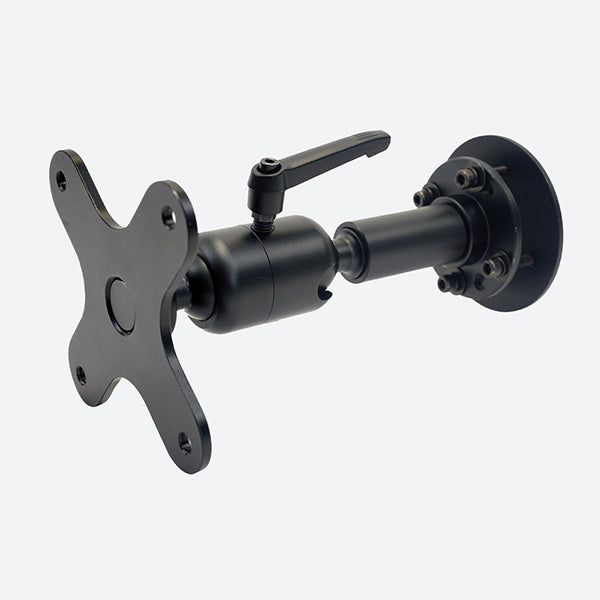

Gamber Johnson Zirkona Medium Joiner VESA 75mm Plate 2 in. Extension 7160-1180-01

Gamber Johnson Full Mount 7160-1180-01

Gamber Johnson's Zirkona line of equipment is great for small device and low profile mounting in both vehicle and static environments. The 7160-1180-01 is a universal mounting solution which comes with a back plate to ensure a stable drilled solution for mounting on a dash or other flat surface. The 7160-1180-01 includes a Zirkona joiner and 2 inch extension allowing it to mount any device or dock with a VESA 75mm mounting pattern and position to the optimal use angle. The weight tolerance for the 7160-1180-01 is a maximum of 5 lbs. as any more might cause undue vibration or failure of the joiner brake. The Rugged or Die sales team has experts in vehicle mounting and we would be happy to provide a free consultation to establish the optimal equipment for your needs! Email your requirements to sales@ruggedordie.com

7160-1180-01 Features

• Designed for lightweight tablet mounting from the dash (recommended maximum weight off the dash is 5 lbs. )
• Back plate allows for drilling directly to the dash 75mm VESA hole pattern 2 inch extension helps bring device closer to the driver
• Quick adjustable handle to easily adjust your device
• Zirkona joiner provides all axes range of motion in X axis (left/right), Y axis (front/back) and Z axis (up/down)
• All metal construction (anodized aluminum) will not deform or degrade

7160-1180-01 Specifications

Weight

1.6 lbs / 0.73 kg

Height

3.2 in / 8.13 cm

Width

3.2 in / 8.13 cm

Depth

6.4 in / 16.26 cm
