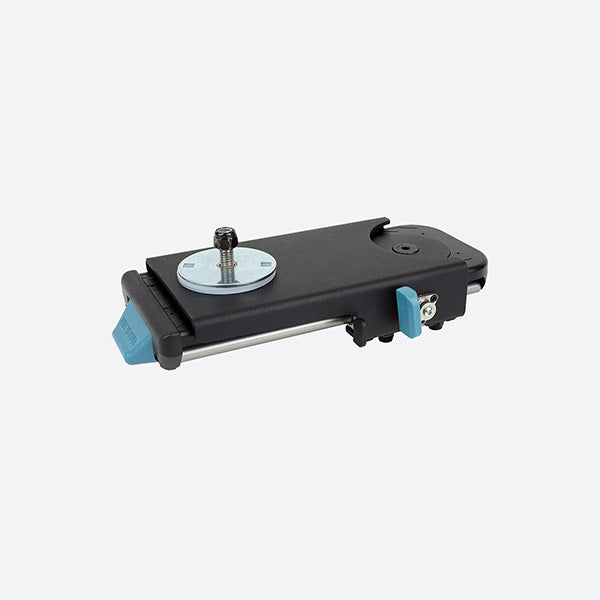

Gamber Johnson Mongoose XLE 9 inch with 3/8 inch Stud 7160-1220-09

Gamber Johnson Motion Attachment 7160-1220-09

As a member of Gamber Johnson's industry defining Mongoose motion attachment line, the 7160-1220-09 provides moderate reach with a 9 inch arm and versatility to attach the optimal clevis for the user needs. Providing high visibility touch points, the 7160-1220-09 provides rotation, locking extension and the ability to quickly push the rugged computer or tablet away from the user which benefits both safety and utility. A clevis added to the Mongoose (such as Gamber Johnson part number 7160-0750) and mounted on the center stud can provide the computer dock independent rotation and tilt from the rotation of the extending arm. The Rugged or Die sales department can help complete the 7160-1220-09 into a full computer mounting solution and can even provide a quote for a Panasonic TOUGHBOOK or Getac rugged laptop or tablet, send us an email with your needs to sales@ruggedordie.com and we will respond within 1 business day with a hassle free quote!

7160-1220-09 Features

• Clevis can be positioned on center on pivot portion of motion attachment
• Color touch points are locations for quick adjustments
• Sleek, low profile design
• Effortless positioning
• New braking system allows for secure positioning at approximately every inch
• Trolley can quickly and easily be pushed to the secure position
• Front pivot control lever locks arm in secure positions every 21 degrees
• Allows for computer use between both driver and passenger position (Requires a clevis)
• Works well in cars and SUV's
• Attaches to any center upper or console top plate with "smiley-face" hole pattern or 3 bolt hole pattern

7160-1220-09 Specifications

Weight

4.15 lbs / 1.88 kg

Height

3 in / 7.62 cm

Width

5.5 in / 13.97 cm

Depth

10.38 in / 26.37 cm

Testing Specifications:

Vibration Tested: MIL-STD 810H Operational/Non-Operational
Shock Tested: Mechanical Shock 20G and 40G
