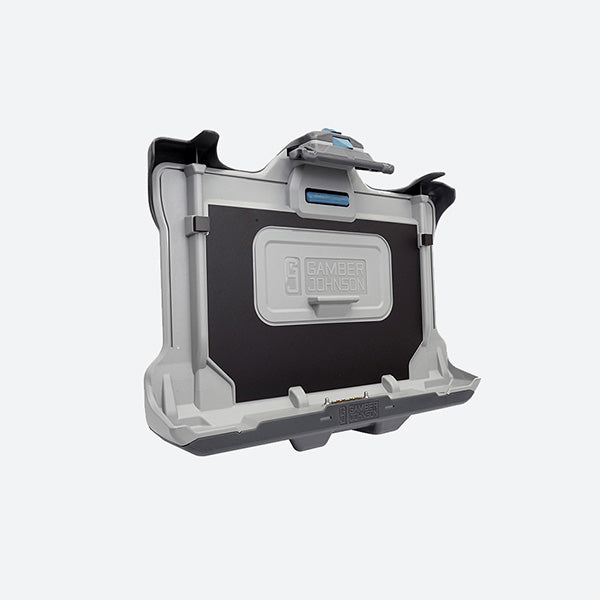

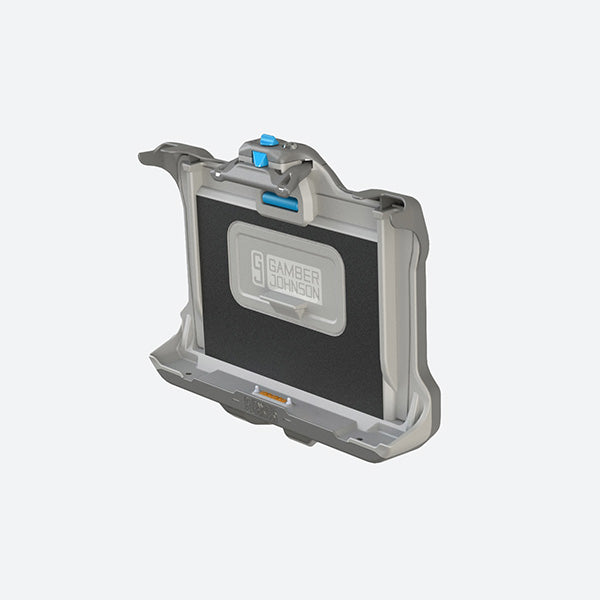

Gamber Johnson Getac A140 Tablet Dock NO RF 7160-1246-00

Gamber Johnson Dock 7160-1246-00

The Gamber Johnson docking station 7160-1246-00 is designed exclusively for the Getac A140 rugged tablet. The 7160-1246-00 has numerous interface options including ethernet port, three USB 2.0 ports, a USB 3.0 port, VGA, HDMI, Serial and headphone/speaker and mic jacks. Interface options on the 7160-1246-00 allow for peripherals and equipment to be plugged directly into the dock and save wear and tear on the ports of the A140 tablet. Vibrations and constant plugging and unplugging of equipment can cause significant damage or even failure to ports on a tablet so a Gamber Johnson dock protects the investment in the rugged computer. The 7160-1246-00 does not include RF pass through so would not be able to connect external antennas, if this feature is required please consider alternative Gamber Johnson Tri RF Dock, the 7160-1246-03. The Rugged or Die sales team would be happy to help provide a list of optimal equipment for the 7160-1246-00 to turn it into a complete solution or even provide a free quote for the Getac A140 tablet itself! Email the Rugged or Die sales team at: sales@ruggedordie.com

7160-1246-00 Features

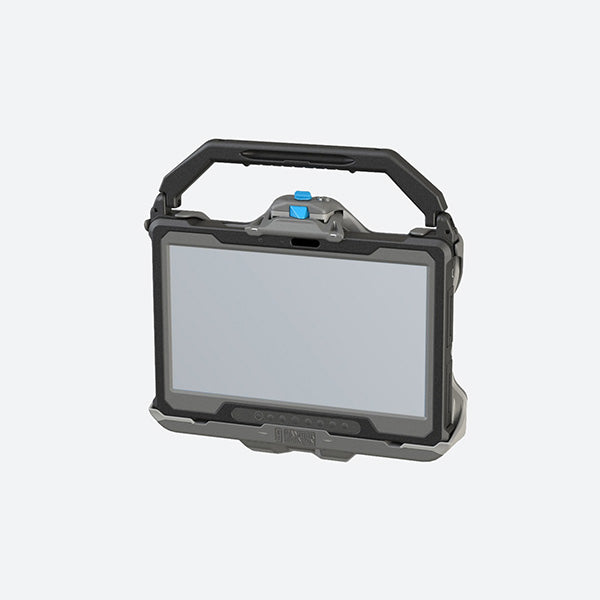

• Designed for the Getac A140 tablet computer
• Docking station design accommodates tablet's built-in rubber hand strap, stylus, and optional multi-function hard handle (sold separately)
• Access to all tablet control buttons; ports; smart card reader and front camera while tablet is docked

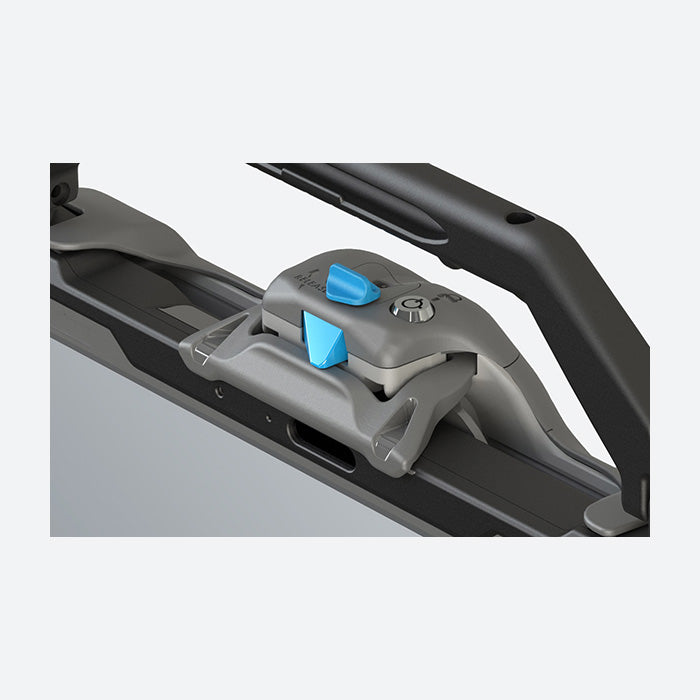

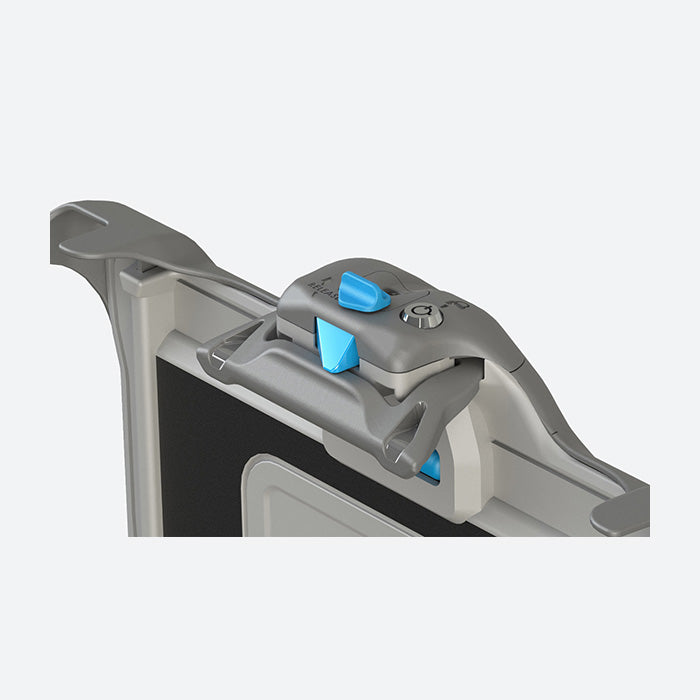

• Easy to use one-handed operation:

                 -Insert bottom of computer into the dock, push top of computer against latch button until latch engages

                 -To remove, push up on latch-button with thumb to disengage and pull computer out of the dock

• Upward-facing I/O ports, integrated cable strain relief and cable management system
• Floating docking connector for reliable connectivity in the most rugged environments
• Optional keyed lock for theft deterrence
• Rounded edges to enhance personal safety
• Gamber-Johnson rugged construction and reliability
• Composite/aluminum design for reduced weight and durability
• Vesa 75mm mounting pattern

7160-1246-00 Specifications

Weight

3.85 lbs. / 1.74 kg

Height

12.59 in / 31.9 cm

Width

15.18 in / 38.5 cm

Depth

3.31 in / 8.4 cm

Port Replicators:

Ethernet (1) RJ45
USB 2.0 (3) 4- pin
USB 3.0 (1) 9 pin
VGA (1) D-sub 9 pin
HDMI (1) 19 pin
Serial (1) D-sub 9 pin
Headphones/speakers Stereo phone jack
Microphone Mono phone jack
Power Input 19 Vdc
RF Pass Through (optional) SMA

Antenna Pass-through:

No RF
