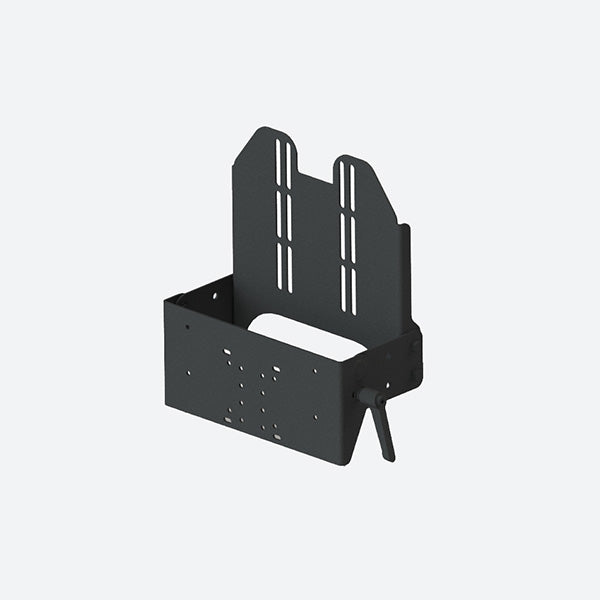

Gamber Johnson Vertical Tablet Keyboard Mount Tall Backplate 7160-1257-01

Gamber Johnson Keyboard Mount 7160-1257-01

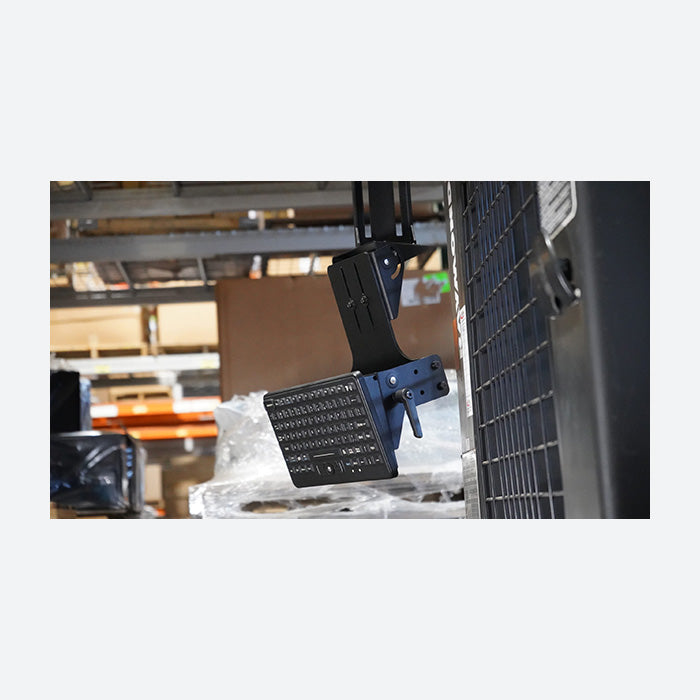

Ideal for mounting a rugged tablet and keyboard in numerous environments and locations, the Gamber Johnson Vertical Tablet Keyboard Mount 7160-1257-01 is a versatile and rugged solution. Providing a tall backplate, the 7160-1257-01 can accommodate small or large tablet docks and cradles and can position the tablet at the optimal height for viewing. Built to mount vertically, the Gamber Johnson 7160-1257-01 would work well as a wall mounted solution but is perfect for mounting a tablet or display and keyboard in on an overhead guard of a forklift or work truck. With the ability to tilt the keyboard, the keyboard mounting portion of the 7160-1257-01 can be positioned in front of the mounted tablet or directly beneath. The 7160-1257-01 features 2 different AMPs hole patterns to be able to mount any keyboard or mounting solution with an integrated AMPs mounting pattern. If you need assistance assembling the proper material handling equipment or converting the 7160-1257-01 into a full equipment solution including a tablet and keyboard, let a Rugged or Die sales rep provide a free consultation and hassle free quote! Give the Rugged or Die sales department a call at 816-388-0035.

7160-1257-01 Features

• Attaches with VESA Hole pattern to clevis
• Keyboard portion of the bracket can be adjusted 15 degrees forward or backward.
• Keyboard tray has 2 mounting positions on each side of the mount, so the keyboard can be positioned underneath the docking station or slightly in front of the docking station

Four (4) mounting hole patterns to attach keyboard:


• AMPS (30mm x 38mm) - 2 mounting locations
• 2.5 x 2.5 - 2 mounting locations
• 75mm VESA
• 2 x 7 Honeywell

7160-1257-01 Specifications

Weight

5.3 lbs / 2.4 kg

Height

5 in / 12.7 cm

Width

16 in / 40.64 cm

Depth

12 in / 30.8 cm
