Gamber Johnson Zirkona 4-in. Diamond Plate w Large Joiner and VESA 75mm Plate 7160-1261-01

Gamber Johnson Full Mount 7160-1261-01

Providing a full mounting solution for a small device or peripheral, the Gamber Johnson 7160-1261-01 is a versatile and low profile mount that can accommodate up to 8 lbs. of weight in a vibrating or moving environment. Ideal for mounting a small tablet dock or cradle, a scanner, printer or other device in a material handling or warehouse management environment, the 7160-1261-01 comes with a 4 inch diamond base (Gamber Johnson part number 7160-1235) which can install the mount onto an overhead guard bar or leg. With a large Zirkona Joiner, the 7160-1261-01 can pivot and tilt the device to the optimal viewing and use angle. Featuring a VESA 75mm mounting plate, the 7160-1261-01 can secure any dock, cradle or device with the same mounting pattern. If you are needing help completing your forklift or work truck equipment solution, Rugged or Die sells the entire Gamber Johnson catalog as well as much of the required electronic equipment such as rugged computers and tablets, keyboards, Zebra and Brother printers, scanners and more! Email your requirements to sales@ruggedordie.com and we will respond within one business day!

7160-1261-01 Features

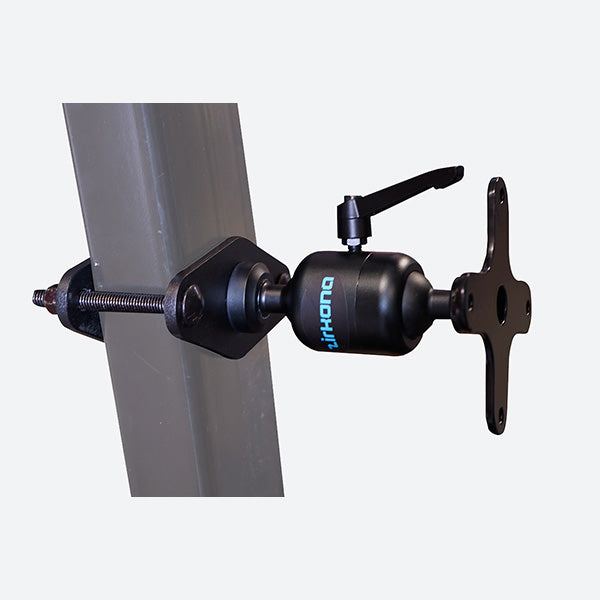

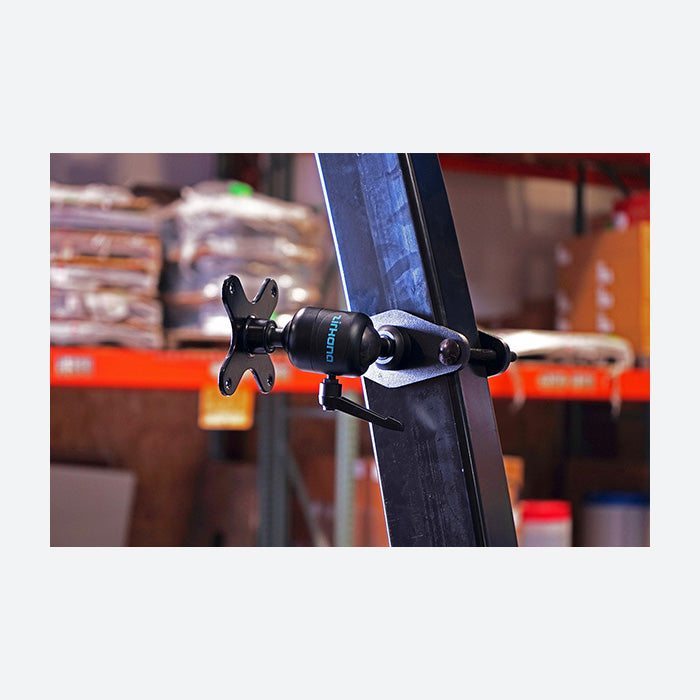

  • Mounts to various overhead guard leg profiles such as rectangular and roll formed
  • Includes large joiner with VESA 75mm mounting hole pattern to mount countless docks, cradles and other peripherals
  • Small form factor to secure light weight devices up to 8 lbs in a material handling shock environment
  • Easy to install mounting solution with no drilling required and ample adjustability to accommodate operator comfort and ease of use

Kit Includes:

  • 4" Diamond Base
  • Large Joiner (7110-1236)
  • VESA 75mm Plate (14139)

7160-1261-01 Specifications

Weight

2.80 lbs / 1.27 kg

Height

2.5 in / 6.35 cm

Width

5.68 in / 14.43 cm

Depth

5.75 in / 14.61 cm

Notes:

  • Vibration environment - Joiner holds up to 11 lbs / 5kg
  • Static environment - Joiner hold up to 55 lbs / 25kg
  • Warning: Extension tube will lower the overal payload rating of the joiner. The longer the extension, the lower the overall rating for the joiner.
$89.31 USD
$89.31 USD
Shipping calculated at checkout.
