Gamber Johnson TOUGHBOOK 20/G2 Full Port Replication Dock w Dual RF 7160-1265-02
Gamber Johnson Dock 7160-1265-02

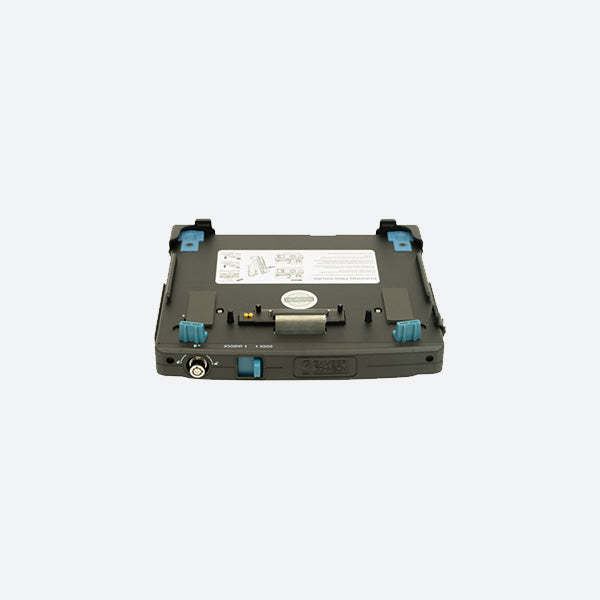

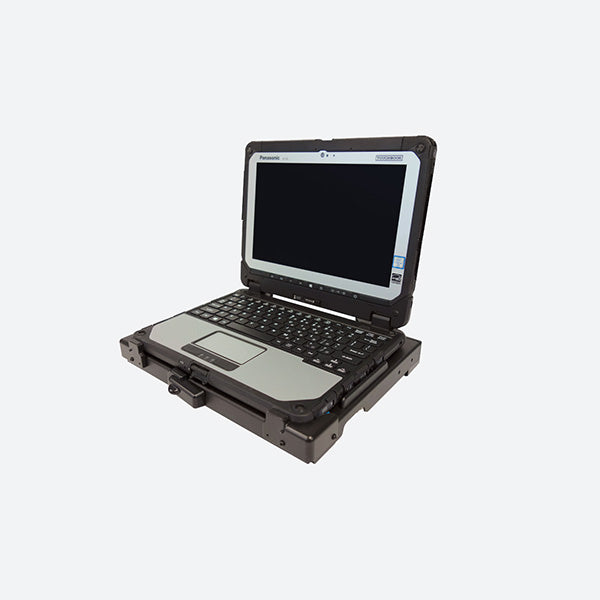

Gamber Johnson docking station designed for the Panasonic TOUGHBOOK CF-20 and FZ-G2 Docking Station with Full Port replication and Dual RF pass through. Designed for the Panasonic TOUGHBOOK CF-20 and FZ-G2 tablets with attachable keyboards in laptop mode.
7160-1265-02 Features
- Compatible with the Panasonic TOUGHBOOK CF-20 and FZ-G2 2-in-1 tablet computers with attachable keyboards
- Panasonic Certified electronics
- Spring-loaded cover protects docking connector when computer is not docked; automatically retracts for superior protection
- Special docking connector pin protection - helps to prevent accidental pin damage by providing additional protection around and in between each docking pin
- Can be used in either laptop or tablet orientation.
- Composite/aluminum design for reduced weight and durability
- Designed with rounded edges to enhance personal safety
- Rear-facing I/O ports, integrated cable strain relief and cable management system
- Access to all notebook control buttons and ports while the notebook is docked
- Keyed lock for theft deterrence. NOTE: The lock secures the TOUGHBOOK CF-20 keyboard and tablet, but secures only the keyboard for the Panasonic FZ-G2.
- VESA 75 mm mounting pattern
- Dual RF TNC
- 3-year limited warranty
Kit Includes:
- Panasonic TOUGHBOOK 20/G2 Docking Station
- Mounting Hardware
- Installation Instructions
7160-1265-02 Specifications
Weight
5 lbs / 2.27 kg
Height
2.5 in / 6.35 cm
Width
11.6 in / 29.46 cm
Depth
10.1 in / 25.65 cm

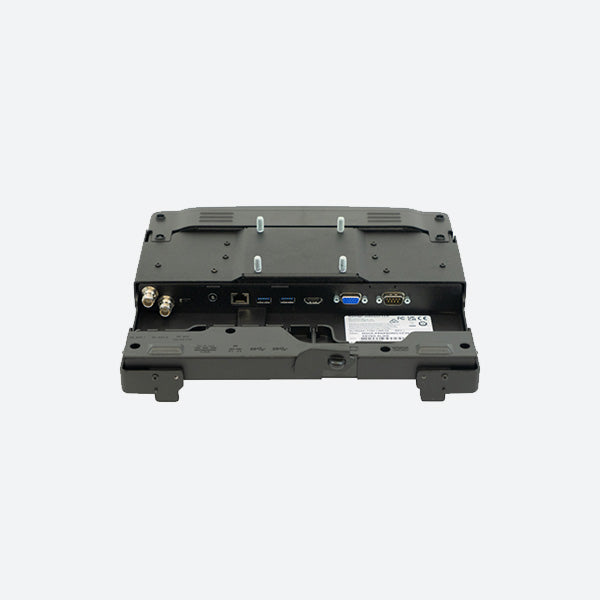

Port Replicators:
Panasonic certified electronics
(2) USB 3.0 - 9 pin
(1) HDMI - 19 pin
(1) Serial - D-sub 9-pin
(1) Ethernet - RJ45
(1) VGA D-sub -15-pin
Antenna switch
Dual RF Pass-Through (optional) - TNC
Power supply input - DC 15.6V-16V
Antenna Pass-through:
Dual RF
