Gamber-Johnson

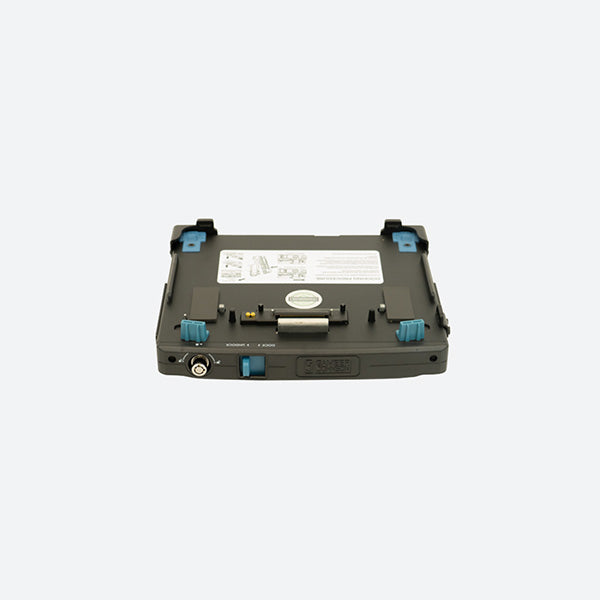

Gamber Johnson TOUGHBOOK 20/G2 Lite Port Replication Dock w Dual RF 7160-1265-22

Gamber Johnson Dock 7160-1265-22

Compatible with both Panasonic TOUGHBOOK FZ-G2 and CF-20 while in laptop mode with the OEM keyboard attached, the Gamber Johnson docking station 7160-1265-22 features Lite Port replication and Dual RF pass through. With dual RF pass through, external antennas can be attached to boost the internal signals of the CF-20 or FZ-G2 (such as 4G LTE or GPS.) A Gamber Johnson vehicle docking station serves a number of functions, including securing the rugged computer in the vehicle and providing power and port pass through. Utilizing ports on the dock will decrease wear and tear on the ports on the rugged computer. The Rugged or Die sales team can help assemble a complete vehicle mounting solution for your Panasonic TOUGHBOOK or even provide a quote for the FZ-G2 itself, send us an email with your needs at sales@ruggedordie.com

7160-1265-22 Features

  • Compatible with the TOUGHBOOK CF-20 and FZ-G2 2-in-1 tablet computers with attachable keyboards
  • Panasonic Certified electronics
  • Spring-loaded cover protects docking connector when computer is not docked, automatically retracts for superior protection
  • Special docking connector pin protection - helps to prevent accidental pin damage by providing additional protection around and in between each docking pin
  • Can be used in either laptop or tablet orientation.
  • Composite/aluminum design for reduced weight and durability
  • Designed with rounded edges to enhance personal safety
  • Rear-facing I/O ports, integrated cable strain relief and cable management system
  • Access to all notebook control buttons and ports while the notebook is docked
  • Keyed lock for theft deterrence. NOTE: The lock secures the TOUGHBOOK CF-20 keyboard and tablet, but secures only the keyboard for the Panasonic FZ-G2.
  • VESA 75 mm mounting pattern
  • 3-year limited warranty

Kit Includes:

  • Panasonic TOUGHBOOK CF-20 and FZ-G2 Docking Station
  • Mounting Hardware
  • Installation Instructions

7160-1265-22 Specifications

Weight

5 lbs / 2.27 kg

Height

2.5 in / 6.35 cm

Width

11.6 in / 29.46 cm

Depth

10.1 in / 25.65 cm

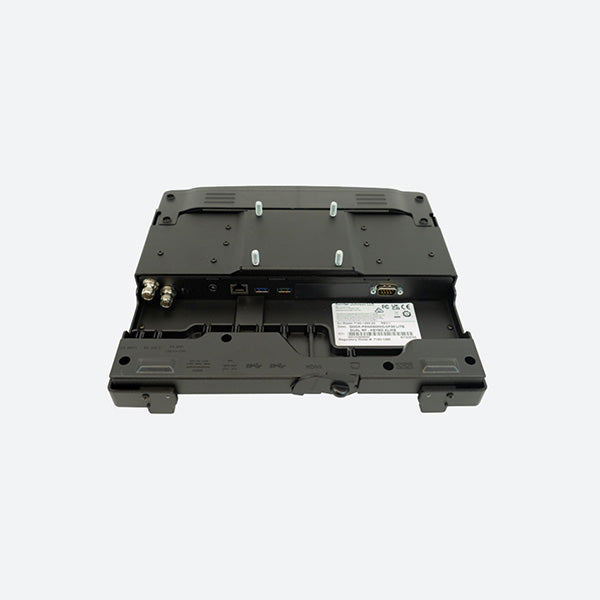

Port Replicators:

Panasonic certified electronics
(2) USB 3.0 - 9 pin
(1) Serial - D-sub 9-pin
(1) Ethernet - RJ45
Antenna switch
Dual RF Pass-Through (optional) - TNC
Power supply input - DC 15.6V-16V

Antenna Pass-through:

Dual RF
