Gamber Johnson TOUGHBOOK T1 Handheld Cradle 7160-1275-20

Gamber Johnson Cradle 7160-1275-20

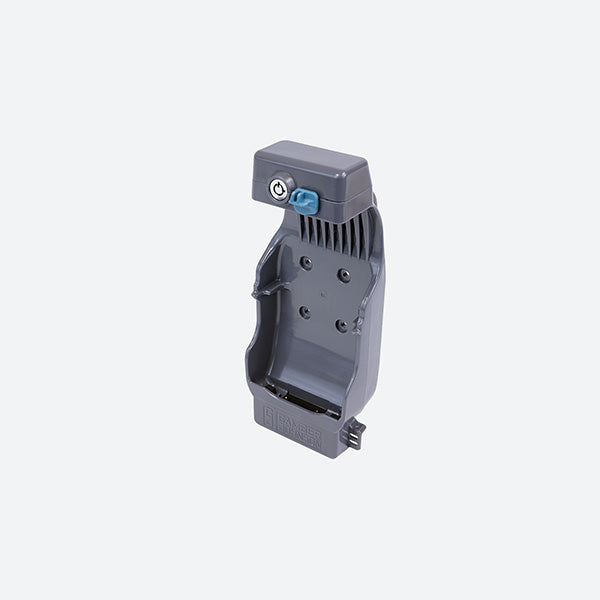

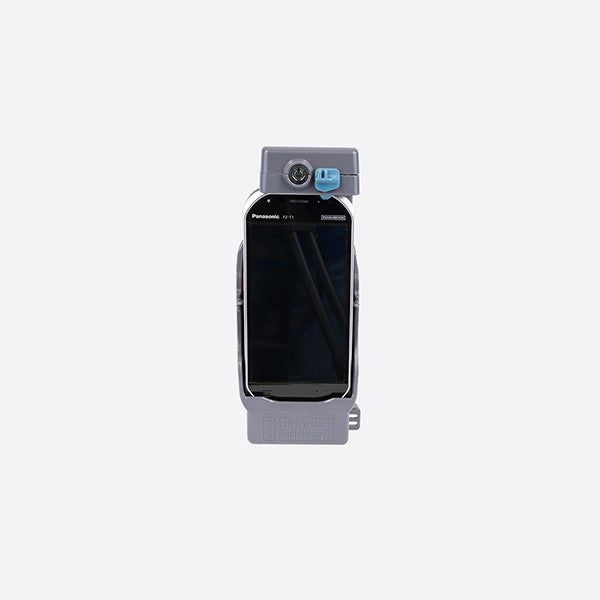

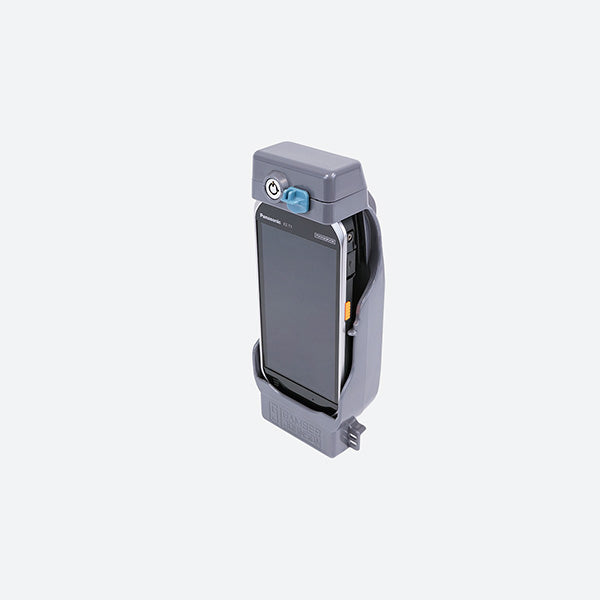

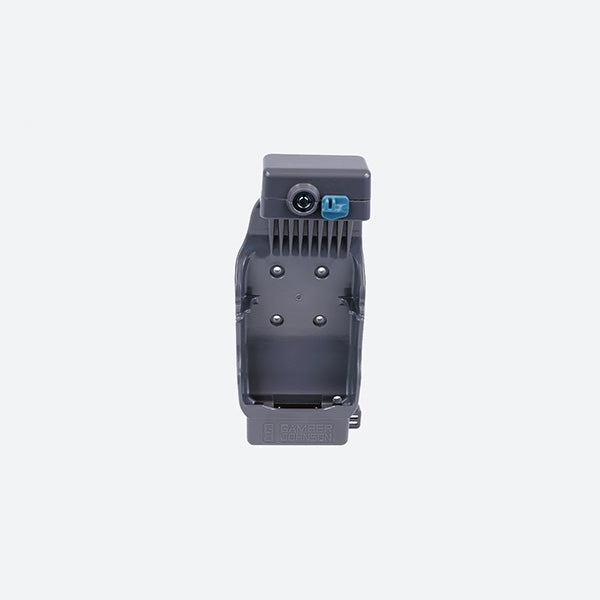

Built for the Panasonic Toughbook FZ-T1 Handheld The Gamber Johnson 7160-1275-20 Cradle is built out of durable materials but does not provide any electronics or power pass through. Designed simply to hold the TOUGHBOOK T1, the 7160-1275-20 has a keyed latch for theft deterrence. Perfect for mounting the FZ-T1 in a warehouse management or material handling environment, the 7160-1275-20 has an AMPs mounting pattern making it compatible with numerous Gamber Johnson Zirkona low profile mounting solutions. Our vehicle mounting and docking experts at Rugged or Die can help complete your vehicle mounting solution for the FZ-T1, send us an email with your requirements at sales@ruggedordie.com and we will respond within 1 business day!

7160-1275-20 Features

• Compatible with the Panasonic TOUGHBOOK‚ FZ-T1 handheld computer
• This cradle is designed to accommodate the T1 handheld's stylus tether and large battery (sold separately)
• Easy to use one-handed operation:

                -Insert bottom of the handheld into the cradle, push top of computer against latch button until latch engages

                -To remove, push up on latch-button with thumb to disengage and pull computer out of the cradle

• Access to all tablet control buttons and ports while tablet is cradled
• Keyed lock for theft deterrence

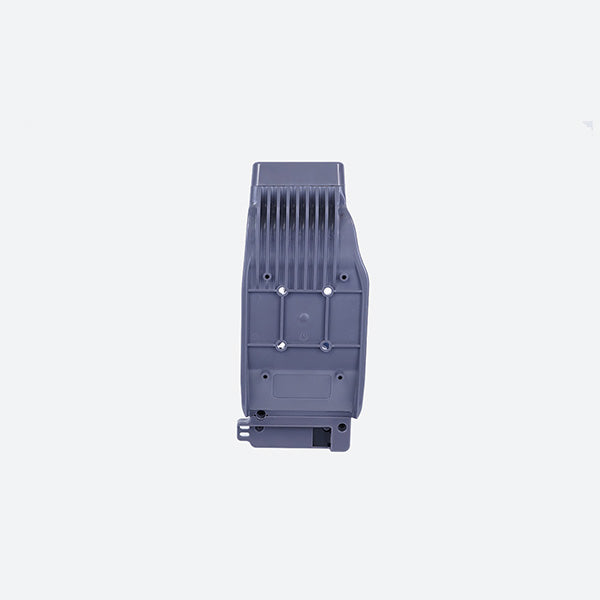

• AMPS mounting pattern
• Rounded edges to enhance personal safety

7160-1275-20 Specifications

Weight

0.6 lbs / 0.27 kg

Height

7.35 in / 18.6 cm

Width

1.7 in / 4.3 cm

Depth

3.4 in / 8.6 cm

Power Supply:

Not Included - must use external LIND 12-31V Automobile Cigarette Power Adapter (7300-0446) or LIND 12-31V Automobile Bare Wire Power Adapter (7300-0445)

Antenna Pass-through:

No RF
