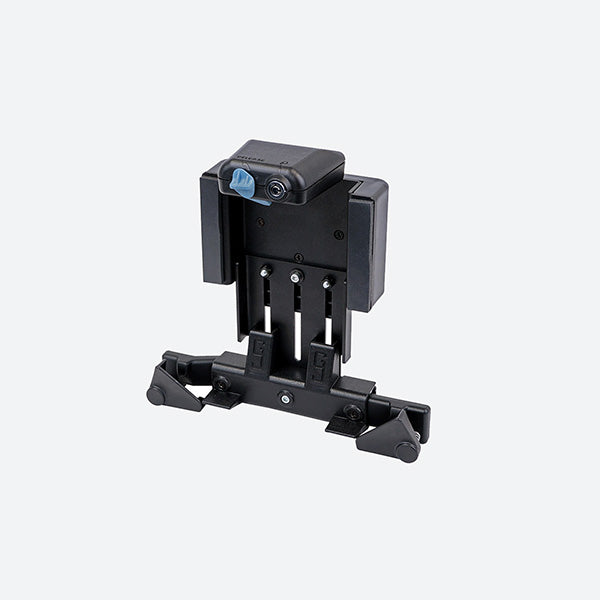

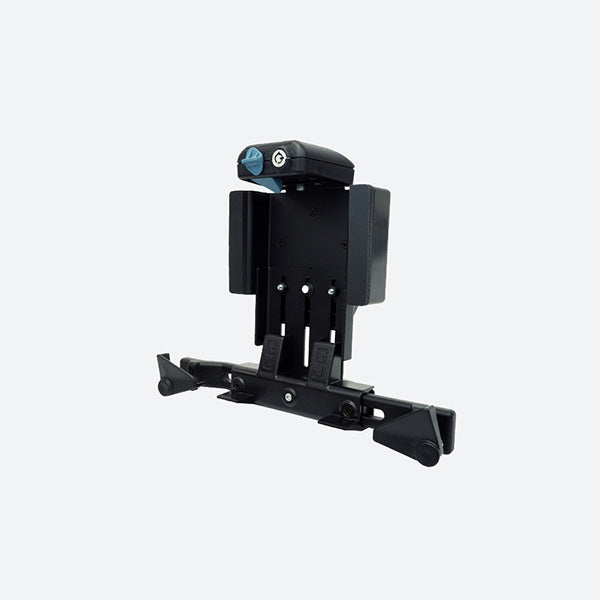

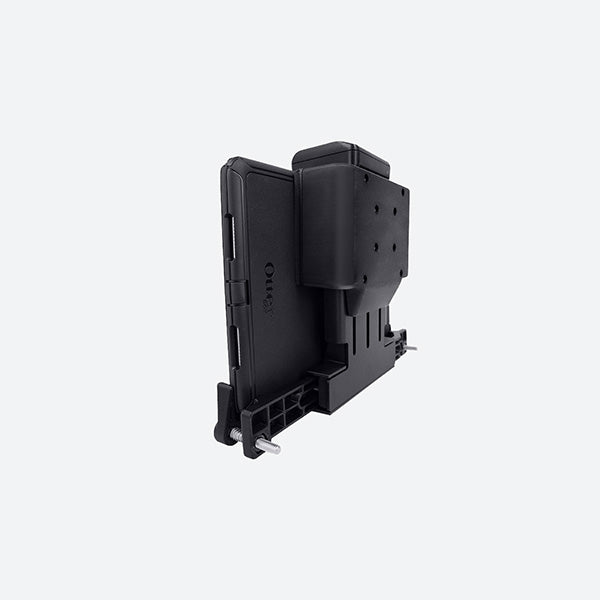

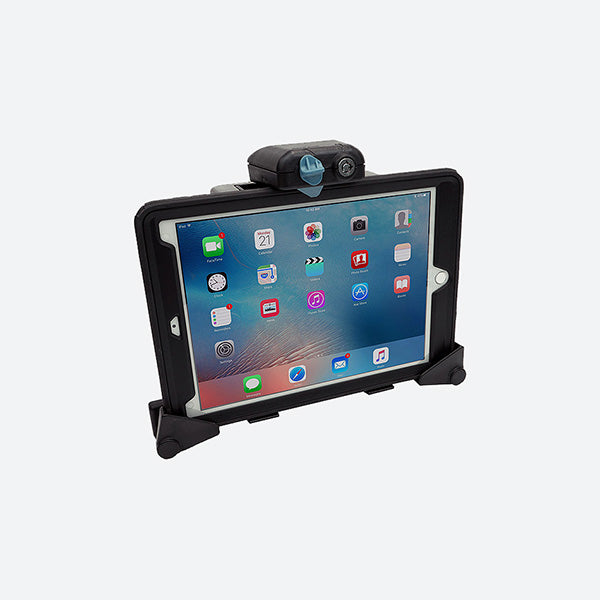

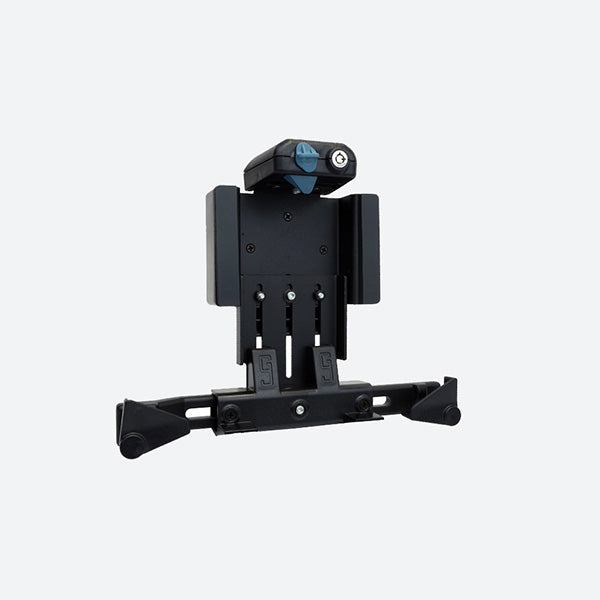

Gamber Johnson NotePad Touch Universal Tablet Cradle 7160-1299-00

Gamber Johnson Cradle 7160-1299-00

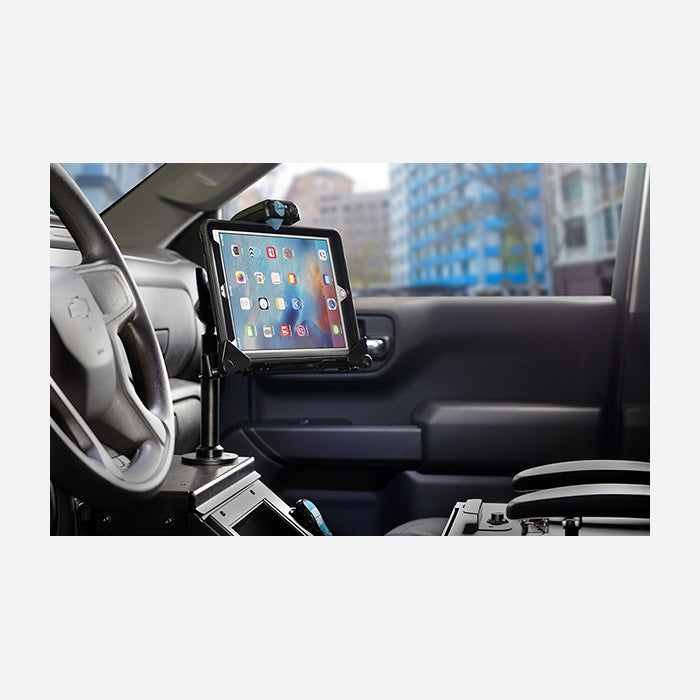

The NotePad Touch XL Universal Tablet Cradle 7160-1299-00 is compatible with a large variety of tablets (see specifications tab for full measurement compatibility list.) Able to have height, width and depth adjusted, the 7160-1299-00 can fit and secure most small to medium tablet computers. The Gamber Johnson universal tablet cradle for larger tablets is part number 7160-1299-10. Featuring a high visibility locking latch, the 7160-1299-00 can help protect against theft of the mounted tablet. Most rugged tablets such as the rugged Panasonic FZ-G2 or Getac F110 have purpose built tablet cradles and docks which would be more of an optimized docking solution. If you are needing help to determine if the 7160-1299-00 is the right tablet cradle for your solution or need help developing a complete mounting solution for installing your tablet into a vehicle, Rugged or Die sales reps are happy to help answer any and all questions! Give us a call at 816-388-0035

7160-1299-00 Features

• Easy one-handed operation:
  • Insert bottom of tablet into the cradle; push the top of the tablet against the latch button until latch engages
  • To remove tablet; push up on latch button with thumb and pull tablet from the cradle
• Height; Width; and depth adjustable to accommodate almost any size tablet computer
• Optional keyed lock for theft deterrence
• Composite/aluminum design for reduced weight and extended durability
• VESA 75 and AMPS mounting patterns
• 30 mph crash tested per SAE J1455 standard

7160-1299-00 Specifications

Weight

2.85 lbs / 1.29 kg

Height

6.12 in / 15.54 cm

Width

3.15 in / 8.00 cm

Depth

8.99 in / 22.8 cm

NotePad Touch Universal Cradle (Item No. 7160-1299-00)

• Fits Tablets with the Following Dimensions:
  • Length: 7.8 - 10.9 in / 19.8 - 27.6 cm
  • Height: 4.5 - 7.3 in / 11.4 - 18.5 cm
  • Depth: 0.28 - 1.12 in / 0.71 - 2.8 cm
