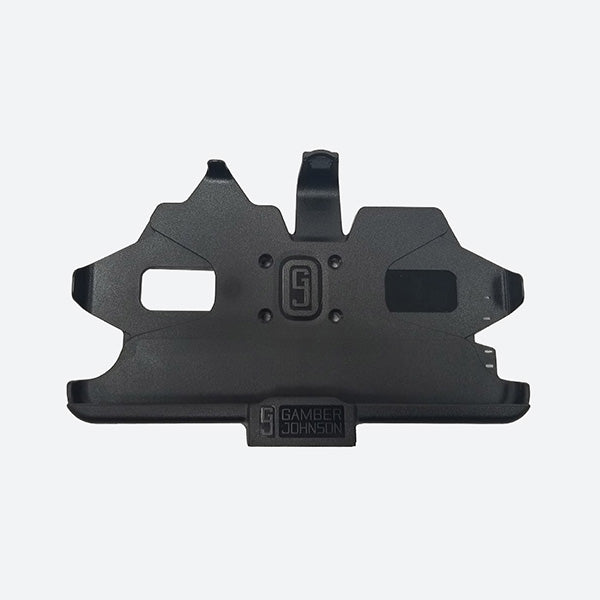

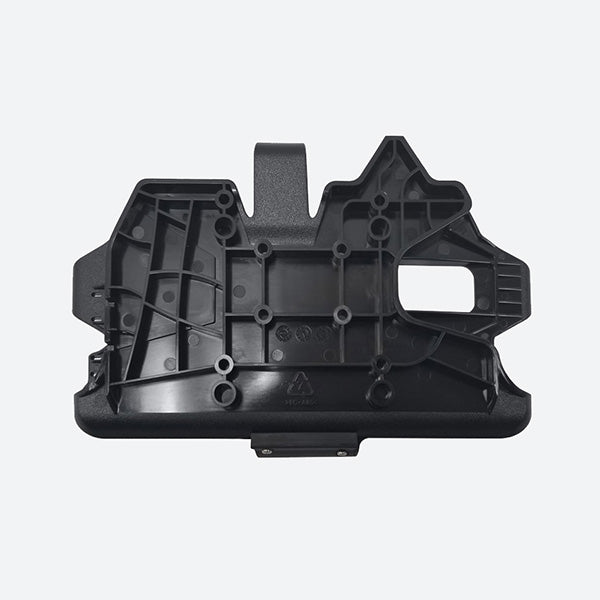

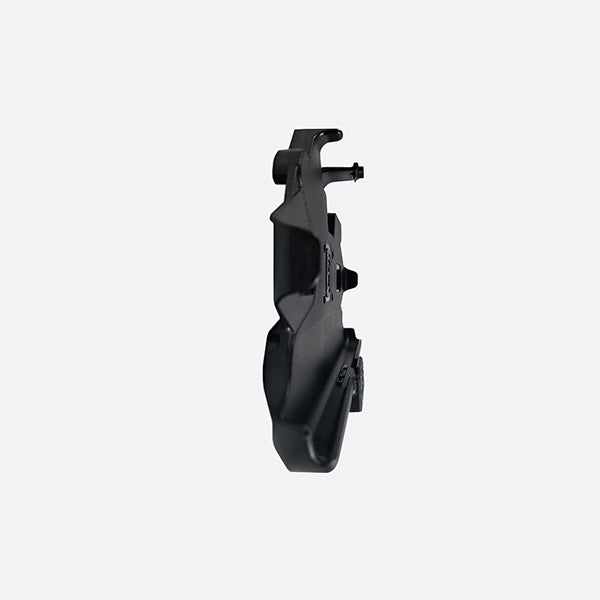

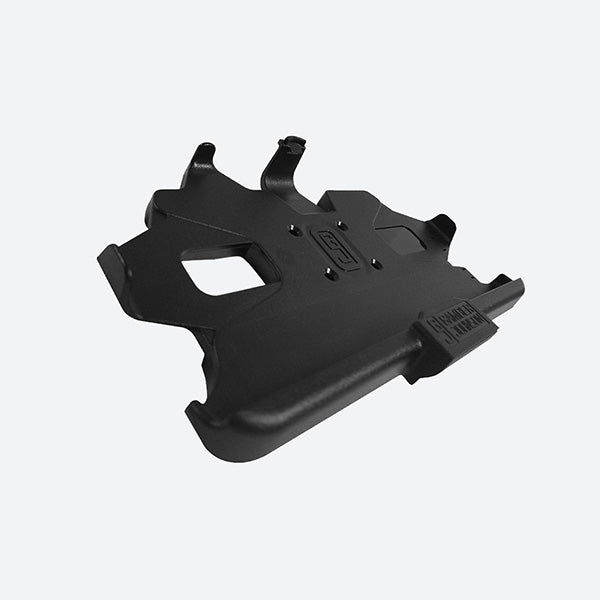

Gamber Johnson Samsung Galaxy Tab Active2/3/5 Charging Cradle w Power Adapter and Bare Wire Lead 7160-1313-00

Gamber Johnson Cradle 7160-1313-00

Compatible with a range of Samsung Galaxy Tab Active tablets including Tab Active 2, 3 and 5, the 7160-1313-00 is a simple solution built for safely holding and charging the tablet mounted in a vehicle or static environment. Compatible with the Samsung Galaxy tablets when rugged case is installed, the Gamber Johnson 7160-1313-00 maintains access to all buttons, controls and camera while the tablet is docked. The 7160-1313-00 includes a power adapter with a bare wire lead and charges the tablet while docked. With a minimalist design the lightweight 7160-1313-00 keeps the mounting solution able to be mounted on a low profile or light mounting solution. Featuring an AMPs hole mounting pattern, the 7160-1313-00 is ideal for mounting the Samsung tablet on a Zirkona low profile solution. Rugged or Die is pleased to offer the entire Gamber Johnson equipment catalog and can help assemble a complete mounting solution for your Samsung tablet, give us a call at 816-388-0035 for a consultation and a hassle free quote.

7160-1313-00 Features

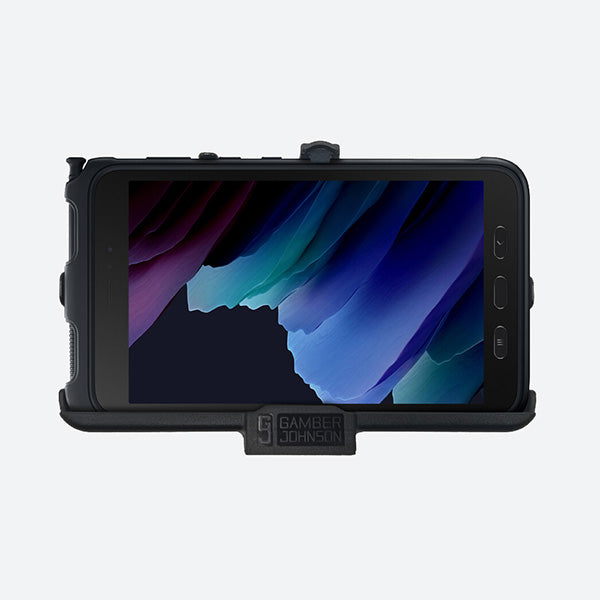

• Designed for the Samsung Galaxy Tab Active2, 3, and 5 rugged tablet with rugged case

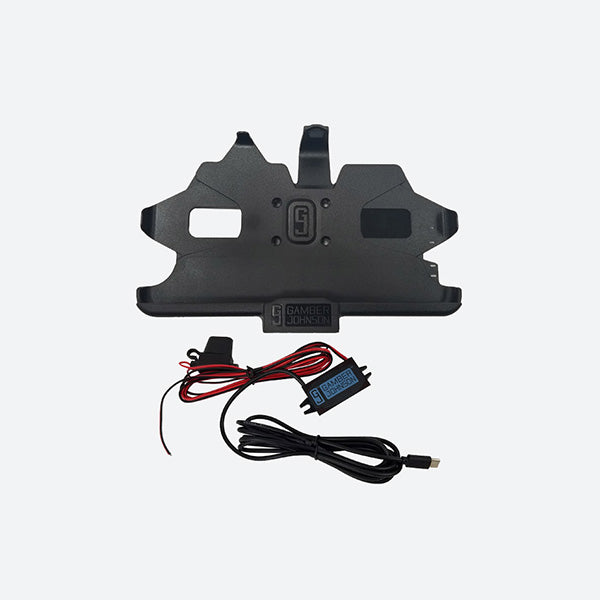

• Kit includes Samsung Tab Active2/3/5 Living Hinge Charging Cradle (7160-1313-00) and 12-24Vdc, 5V with Bare Wire Lead (19161)
• 12-24V power input range to support a wide range of mobile applications
• 5V, 3A Max of output
• Simple, one-handed operation:

  • Insert bottom of the tablet into the cradle, push top of the tablet against top clip until clip engages
  • To remove, push up on top clip with thumb and pull tablet out of cradle
• Cradle design is compatible with Samsung’s built-in Near Field Communication (NFC); perform tasks with another NFC device without taking the Samsung tablet out of the cradle
• Access to all control buttons and camera while docked
• USB-C charging port with integrated cable restraint (to connect to power supply), includes USB-C charging cable with bare wire end
• AMPS mounting pattern – compatible with Zirkona

7160-1313-00 Specifications

Weight

0.46 lbs / 0.21 kg

Height

5.68 in / 14.43 cm

Width

9.27 in / 23.55 cm

Depth

1.9 in / 4.83 cm

Power Supply:

Port Replicators:
