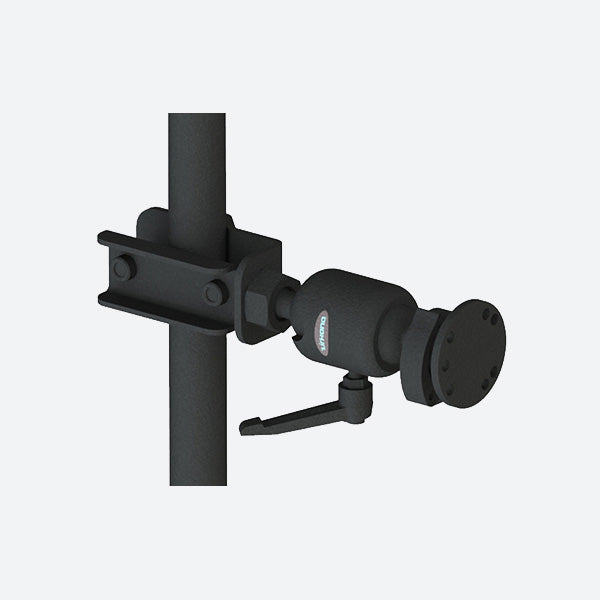

Gamber Johnson Zirkona 3/4 to 1-7/8 inch Pole Mount w AMPs Quick Release Plate 7160-1367-02

Gamber Johnson Full Mount 7160-1367-02

The Gamber Johnson Zirkona Mount 7160-1367-02 is able to provide a mounting solution for a large number of scenarios and can attach to a variety of poles and overhead guard legs and mount a large number of computer and device docks and cradles. The 7160-1367-02 bracket base can attach to handles, poles and guards ranging from 3/4 inch to 1 7/8 inch. The Zirkona medium joiner and low profile form factor on the 7160-1367-02 ensures that it can stably hold mounted devices up to 8 pounds. The 7160-1367-02 kit features the Quick Release Base 7110-1225 which has an AMPs mounting pattern for any dock or cradle with the same. The 7110-1225 provides the added benefit of being able to quickly install and release from the mounting solution for added computer utility and mobility. Ideal for a material handling solution, the Rugged or Die sales team can help you build the 7160-1367-02 into a complete computer mounting solution and can even provide a quote for the computer itself (such as a Panasonic or Getac rugged tablet like the FZ-G2 for F110) give us a call at 816-388-0035 for a free consultation.

7160-1367-02 Features

• Mounts to any size cylindrical poles, handles, or tubular style overhead guard legs varying between 3/4" and 1-7/8" in diameter.
• Includes large joiner with AMPS and NEC mounting hole patterns to mount countless docks, cradles and other peripherals.
• Small form factor to secure lightweight devices up to 8 lbs in a material handling shock environment.
• Easy to install mounting solution with no drilling required to decrease install times and improve vehicle up-times

Kit Includes:

7160-1367-02 Specifications

Weight

3.45 lbs / 1.56 kg

Height

4.70 in / 11.94 cm

Width

3.90 in / 9.91 cm

Depth

6.80 in / 17.27 cm
