Gamber Johnson Samsung Galaxy Tab Active2/3/5 Dual USB Dock 7160-1368-20

Gamber Johnson Dock 7160-1368-20

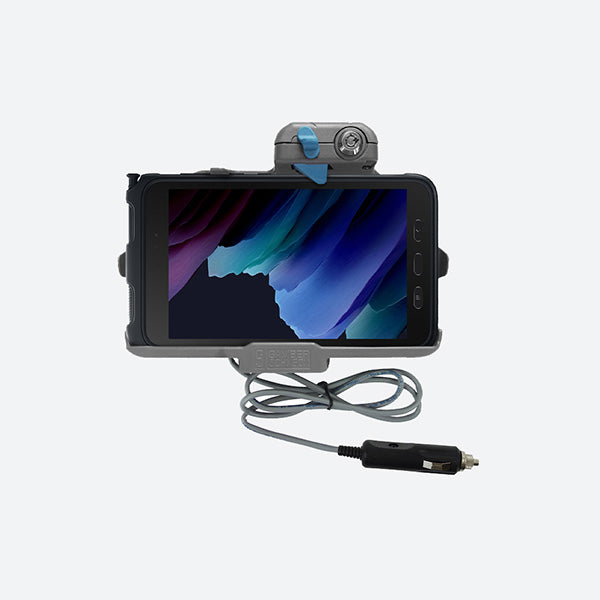

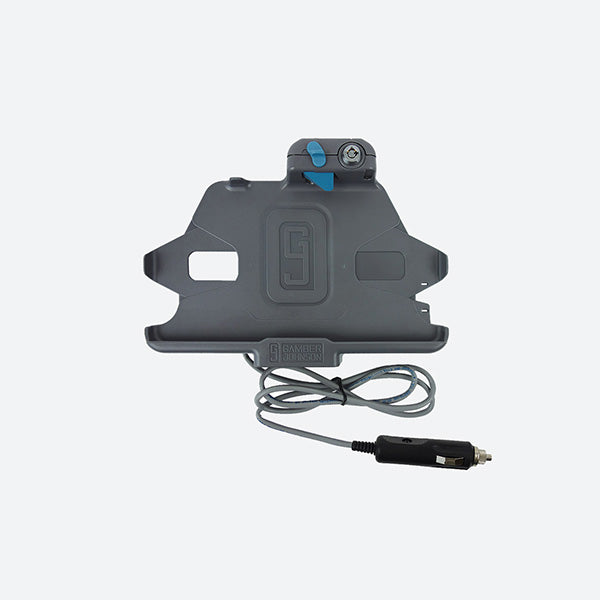

Gamber Johnson docking station designed for Samsung Galaxy Tab Active2/3/5 with Dual USB and Cigarette Lighter Adapter. Easily connect this docking station to your vehicle with the cigarette lighter connector and this dock will provide power to your tablet’s battery so it will stay charged and ready to go.

7160-1368-20 Features

• Designed for the Samsung Galaxy Tab Active2, 3, and 5 rugged tablet with rugged case
• Dual powered USB ports; 1.5A for each port for connecting peripheral devices
• Access to all control buttons, camera, ports, and stylus while the tablet is safely docked
• Simple, one-handed docking operation:
  • Insert bottom of Samsung tablet into the docking station and push top of the tablet in until the lock engages
  • Push latch button up with your thumb then remove the tablet from the docking station
• POGO pin connector and internal power supply provides power to charge the Samsung tablet while docked
• Push-button lock with key for theft deterrence
• VESA 75mm and AMPS mounting patterns; compatible with Zirkona mounting products
• Approximately 72” (182 cm) power cable with bare wire end
• Can be mounted on a flat vertical surface
• Composite design for reduced overall weight
• 10-40V power input range to support a wide range of mobile applications

7160-1368-20 Specifications

Weight

1.1 lbs / 0.5 kg

Height

6.7 in / 17.1 cm

Width

9.3 in / 23.6 cm

Depth

1.5 in / 3.8 cm

Port Replicators:

Tab Active2 - (2) USB 1.1 (1.5A each)
Tab Active3 - (2) USB 2.0 (1.5A each)

Antenna Pass-through:

No RF

Note: Disconnect software may affect compatibility on docks manufactured prior to 01/01/2024.
