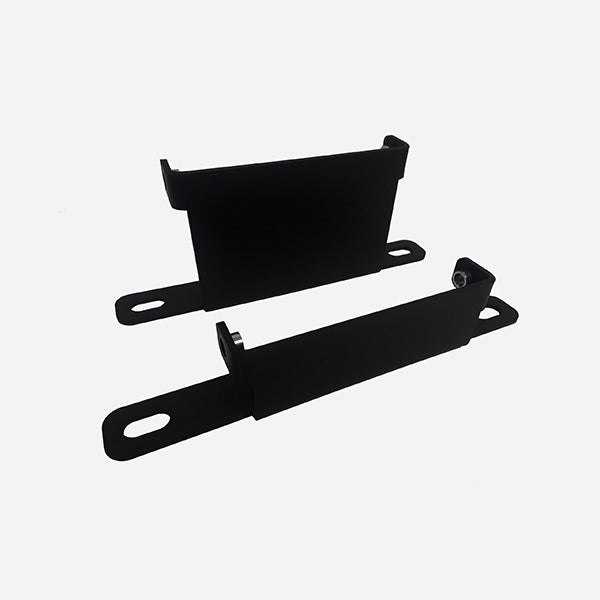

Gamber Johnson 2019-Current (New Body Style) RAM 1500 Leg Kit 7160-1383

Gamber Johnson Console Mount 7160-1383

Designed to be compatible with top plates to mount into Dodge RAM 1500 vehicles (see Specifications Tab for complete compatibility list), the Gamber Johnson Leg Kit 7160-1383 can install without needing drilling. Mounting to the center seat bolts in the RAM 1500, the 7160-1383 can mount both Gamber Johnson 29 and 23 inch top plates as well as the 7160-0548 console box itself. Once top plates are added to the 7160-1383 leg kit, any Gamber Johnson Dodge RAM 1500 console or console kit can be mounted to it. With slotted holes, the 7160-1383 allows for a fine tuned install bringing the console to optimal alignment for the user. Rugged or Die has mounting and docking experts on staff with our sales team and we are happy to help assemble a full console vehicle solution for your Dodge RAM, give us a call at 816-388-0035

7160-1383 Features

• Complete your install look with the carpet covering (black)
• Carpet covering helps keep small items from going under the OEM carpet; i.e. pens and coins
• Four (4) slotted holes allow for fine tuning the console alignment between front seats
• Works with our 29" and 23" top plates as wells as the 7160-0548 console box
• Uses same seat bolts used for the center seat for ease of install

7160-1383 Specifications

Weight

Front Bracket: 6 lbs / 2.72 kg

Height

Front Bracket: Width: 1.86 in / 4.72 cm Height: 2.75 in / 6.99 cm Length: 13.13 in / 33.35 cm

Width

Rear Bracket: Width: 1.86 in / 4.72 cm Height: 4.57 in / 11.61 cm Length: 12.13 in / 30.81 cm

Depth

Carpet Covering: Width: 18 in / 45.72 cm Height: 0.25 in / 0.64 cm Length: 28 in / 71.12 cm

Compatibility:

• 2019-Current (New Body Style) RAM 1500
• Note: Does not work with 2019 RAM Classic 1500

For 2011-2018 and 2019 Dodge Ram Classic or 2019+ RAM 2500-5500 use:

7160-0422 - If no center seat

7160-0985 - If center seat is present
