Gamber Johnson TOUGHBOOK A3 Tablet Dock (Dual RF) 7160-1416-02

Gamber Johnson Dock 7160-1416-02

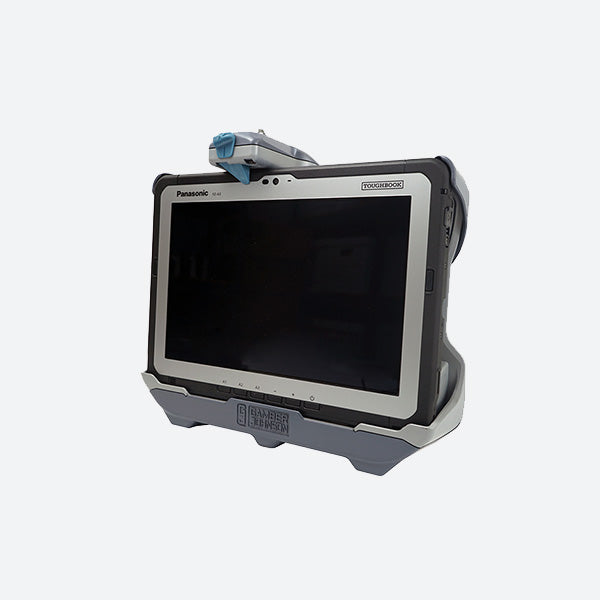

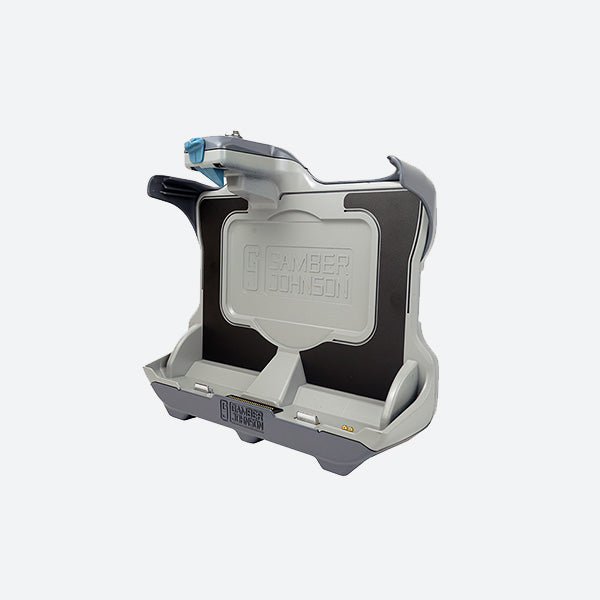

This Gamber Johnson 7160-1416-02 dock is designed for the Panasonic TOUGHBOOK FZ-A3 fully rugged Android tablet and comes with Dual RF Pass Through. The TOUGHBOOK FZ-A3 docking station is able to accommodate and optional hand strap on the tablet as well as the tablet’s optional extended battery. Port replication on this 7160-1416-02 includes dual powered USBs, an ethernet port, power input and an external antenna switch to control the use of an external antenna option. If you would like a custom quote for a complete mounting solution for the 7160-1416-02 and the FZ-A3, please email your requirements to the Rugged or Die sales department at sales@ruggedordie.com and we will respond within 1 business day! Rugged or Die is also pleased to offer the entire Panasonic TOUGHBOOK line of computers and accessories, if you have any TOUGHBOOK computer or related equipment needs we will happily provide a quote!

7160-1416-02 Features

• Compatible with the Panasonic TOUGHBOOK A3 tablet computer
• Panasonic Certified electronics
• Docking station design accommodates the A3 tablet hand strap with the extended battery
• Easy to use one-handed operation:

                -Insert bottom of computer into the docking station, push top of computer against latch button until latch engages

               -To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station

• Access to all tablet control buttons and ports while tablet is docked
• Downward-facing I/O ports, integrated cable strain relief and cable management system
• DUAL RF antenna pass through for reliable connectivity
• Keyed lock for theft deterrence
• VESA 75mm mounting pattern
• Rounded edges to enhance personal safety
• Available with NO RF (Item No. 7160-1416-00)
• Dual RF TNC

7160-1416-02 Specifications

Weight

2.15 lbs / 0.98 kg

Height

10.28 in / 26.11 cm

Width

11.33 in / 28.78 cm

Depth

4.59 in / 11.66 cm

Port Replicators:

External Antenna Switch

Dual USB

Ethernet Port

Power Input

Antenna Pass-through:

Dual RF

Power Supply:

Not Included - Use LIND 90W auto power adapter (Item No. 7300-0460)
