Gamber-Johnson

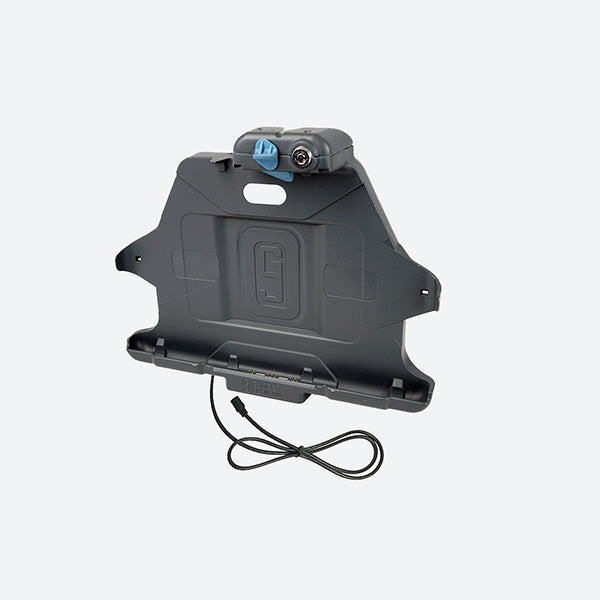

Gamber Johnson Samsung Galaxy Tab Active Pro/Active4 Pro Dock w/ MP205 Connector 7160-1418-30

Gamber Johnson Dock 7160-1418-30

Gamber Johnson docking station designed for the Samsung Galaxy Tab Active Pro/Active4 Pro with MP205 Connector. Docking station features dual-powered USBs. Each USB port will deliver 1.5A of power with an integrated cable restraint system. The docking station is compact; has a keyed lock; and docking/release is a simple; one-handed operation.

7160-1418-30 Features

  • Designed for the Samsung Galaxy Tab Active Pro/ Active4 Pro 10-Inch rugged tablet with rugged case

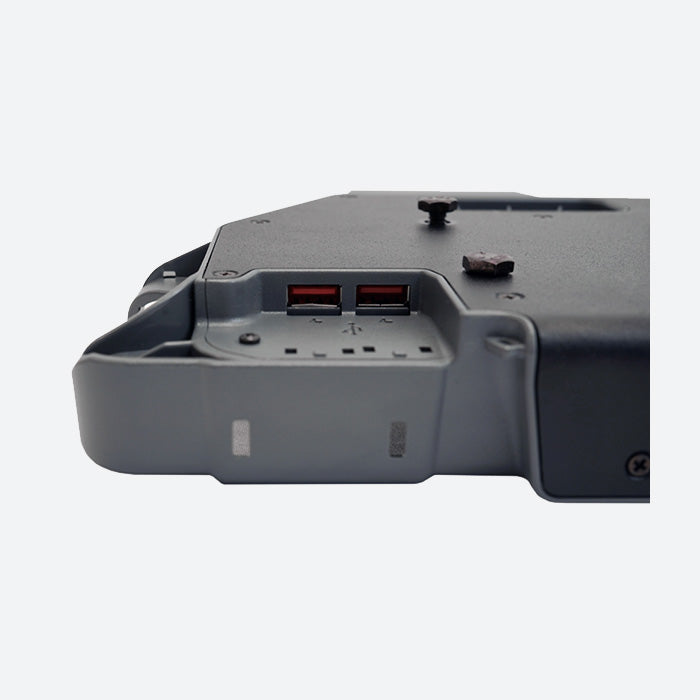

  • Dual powered USB ports; 1.5A for each port for connecting peripheral devices
  • 10-40V power input range to support a wide range of mobile applications
  • Access to all control buttons, camera, ports and stylus while the tablet is safely docked.
  • Dock design is compatible with Samsung’s built-in Near Field Communication (NFC); scan NFC cards while the Samsung tablet is in the docking station
  • Simple, one-handed docking and release operation:
    • Insert bottom of Samsung tablet into the docking station and push top of the tablet in until the lock engages.
    • Push latch button up with your thumb then remove the tablet from the docking station.
  • POGO pin connector and internal power supply provides power to charge the Samsung tablet while docked.
  • Barrel Key lock for theft deterrence
  • VESA 75mm mounting pattern; compatible with Zirkona mounting products.
  • 40" power cable with MP205 in-line jack to quickly connect to a compatible Power supply
  • Can be mounted on a flat vertical surface.
  • Composite design for reduced overall weight.

Kit Includes:

  • MP205 Connector

7160-1418-30 Specifications

Weight

1.3 lbs / .58 kg

Height

8.5 in / 21.5 cm

Width

10.5 in / 26.6 cm

Depth

2.5 in / 6.35 cm

Port Replicators:

(2) USB 2.0 - each with 1.5A power

Antenna Pass-through:

No RF

$297.48 USD
$297.48 USD
Shipping calculated at checkout.
