Gamber Johnson Samsung Galaxy Tab Active Pro/Active4 Pro Dock w/ 2.5mm Connector 7160-1418-50

Gamber Johnson Dock 7160-1418-50

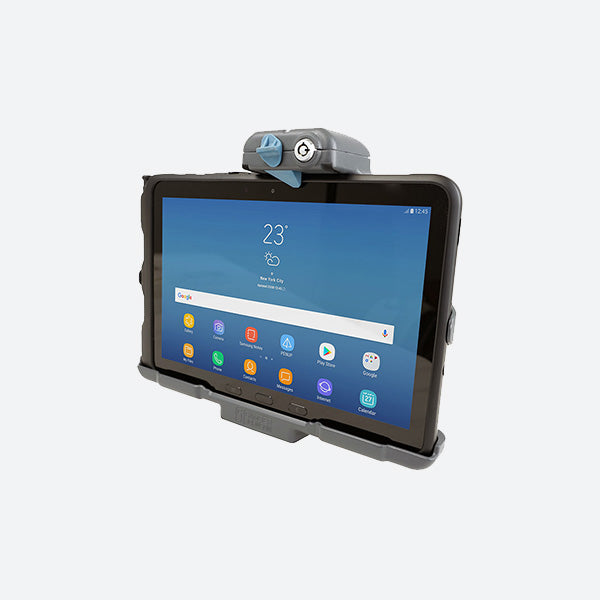

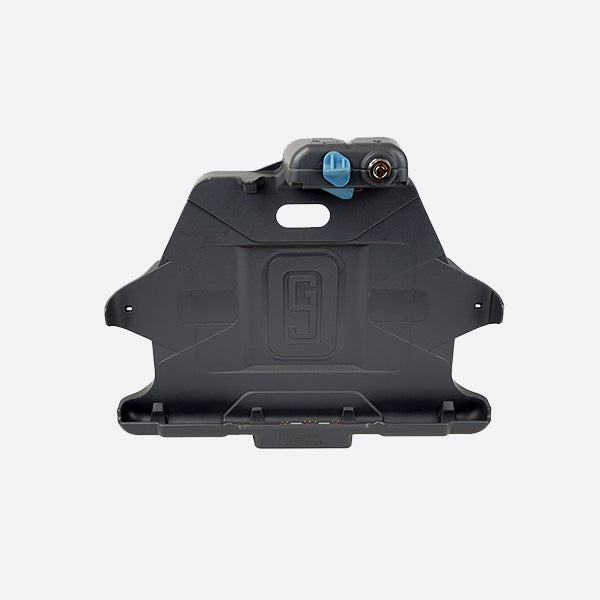

Gamber Johnson docking station designed for the Samsung Galaxy Tab Active Pro/Active4 Pro with 2.5mm Connector. Dock comes with dual powered USBs for added productivity. Each powered USB port provides 1.5A, strong enough to power a long-range scanner and a printer or other peripherals. Easily connect this docking station to an external power adapter using the 2.5mm DC Power Jack.

7160-1418-50 Features

• Designed for the Samsung Galaxy Tab Active Pro/ Active4 Pro 10-Inch rugged tablet with rugged case
• Dual powered USB ports; 1.5A for each port for connecting peripheral devices
• 10-40V power input range to support a wide range of mobile applications
• Access to all control buttons, camera, ports and stylus while the tablet is safely docked.
• Dock design is compatible with Samsung’s built-in Near Field Communication (NFC); scan NFC cards while the Samsung tablet is in the docking station
• Simple, one-handed docking and release operation:
  • Insert bottom of Samsung tablet into the docking station and push top of the tablet in until the lock engages.
  • Push latch button up with your thumb then remove the tablet from the docking station.
• POGO pin connector and internal power supply provides power to charge the Samsung tablet while docked.
• Barrel Key lock for theft deterrence
• VESA 75mm mounting pattern; compatible with Zirkona mounting products.
• 2.5 MM in-line jack to quickly connect to a compatible Power supply
• Can be mounted on a flat vertical surface.
• Composite design for reduced overall weight.

7160-1418-50 Specifications

Weight

1.3 lbs. / .58 kg

Height

8.5 in / 21.5 cm

Width

10.5 in / 26.6 cm

Depth

2.5 in / 6.35 cm

Port Replicators:

(2) USB 2.0 - each with 1.5A power

Antenna Pass-through:

No RF
