Gamber Johnson Fixed Base Clamshell w Articulating Arm and Large Plate 7160-1505

Gamber Johnson Full Mount 7160-1505

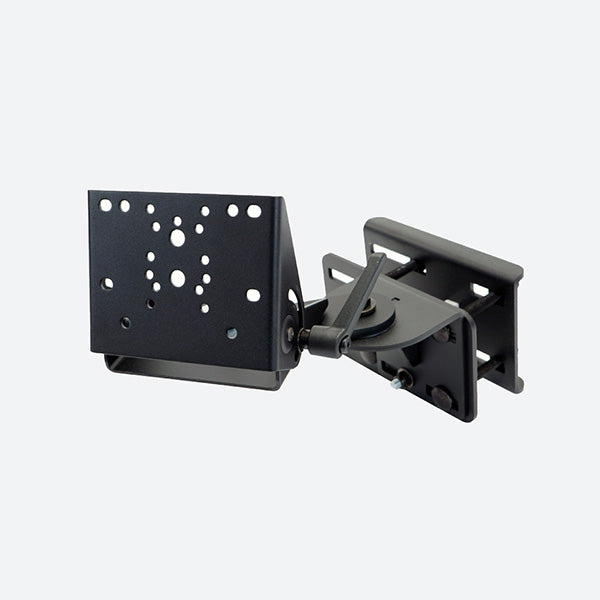

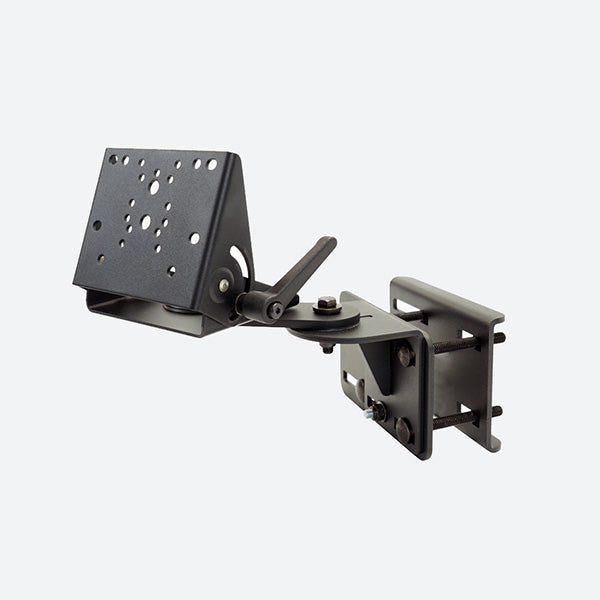

Ideal for material handling applications, the Gamber Johnson Fixed Base Clamshell with Articulating Arm and Large Plate mount can secure a number of different devices to a large range of mounting locations. Designed to attach to vehicles with a rectangular guard or pole measuring between 2.5 and 5 inches, the 7160-1505 features tilt and swivel articulation through the included Clevis and articulating arm. With the 7160-1505 a computer dock or cradle or other peripheral can be mounted in optimal positioning for use. The mounting and docking experts on the Rugged or Die sales team can help you assemble a list of optimal equipment for your forklift mounting solution, give us a call at 816-388-0035 today!

7160-1505 Features

• Fixed base allows for additional strength and stability to ensure security in the harshest of environments
  AMPS, NEC, VESA 7 5mm, and Gamber-Johnson 2”x 4.09” hole patterns provided to seamlessly mount a wide variety of devices
• Ability to tilt device up to 90 degrees fore and 26 degrees aft for optimal viewing of device screens
• Articulating arm provides additional capabilities of swiveling in order to quickly move devices out of reach or bring them closer to an operator
• No drilling required installation makes a quick solution to easily attach a wide range of devices to a rectangular guard leg 2.5" to 5.0" (6.35 cm to 12.7 cm) wide

7160-1505 Specifications

Weight

9.8 lbs / 4.45 kg

Height

10.1 in / 25.65 cm

Width

6.6 in / 16.76 cm

Depth

10.1 in / 25.65 cm
