Gamber-Johnson

Gamber Johnson Zebra ET51/56 8 SLIM Dual USB Dock 7160-1506-00

Gamber Johnson Dock 7160-1506-00

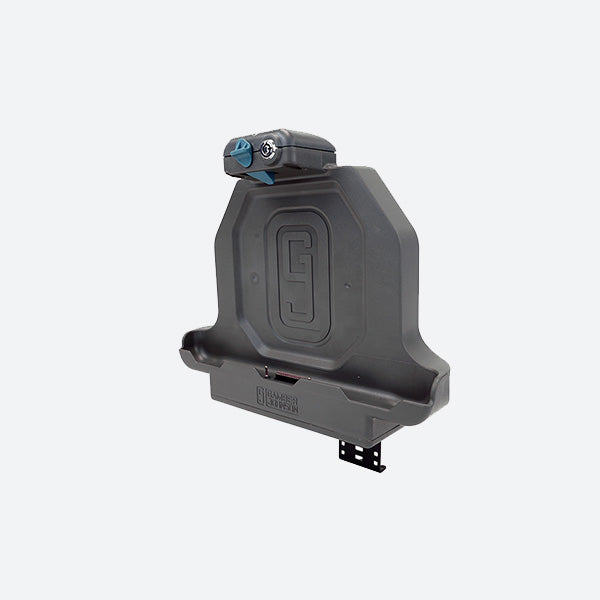

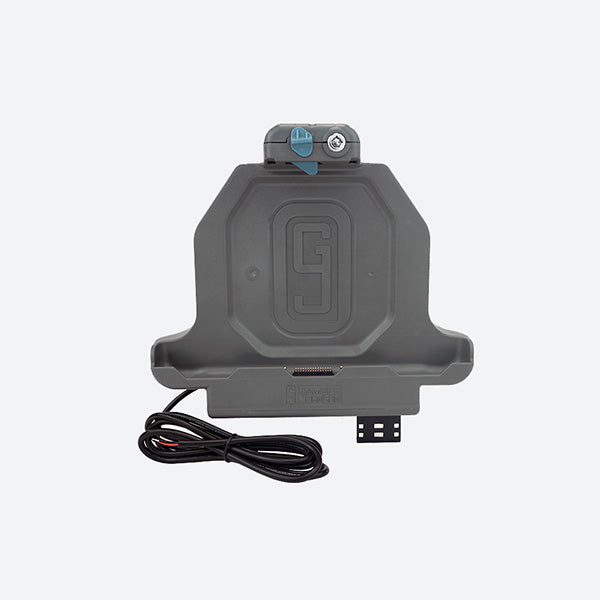

Zebra ET51/56 8 inch SLIM Dual USB Docking Station. Docking station provides dual powered (1.5A each) USB ports; strong enough to connect a long-range scanner and other peripherals. The front-facing release latch button makes one-handed docking/release very easy and the 75mm VESA mounting pattern will attach to most Gamber-Johnson motion attachments.

7160-1506-00 Features

  • Designed for the Zebra ET51/56 8" rugged tablet computer with rugged frame
  • This docking station does not accommodate ET51/56 accessories
  • Front camera on ET5X accessible when the tablet is in the docking station
  • Compatible with Windows or Android operating systems
    POGO pin connector and internal powered PCB provides power to charge the Zebra tablet while docked
  • 8-40V power input range with power filtering PCB
  • Dual powered USB ports; 1.5A for each port to connect peripheral devices
  • Access to all control buttons and ports while the tablet is safely docked
  • Bottom-facing I/O ports; integrated cable restraint/cable management system
  • Approximately 60” (152.4 cm) power cable with bare wire end to attach to power source
  • Composite/aluminum design for reduced weight and extended durability
  • Designed with rounded edges to enhance personal safety
  • Keyed lock for security and theft deterrence
  • Forward facing docking latch/release for easy one-handed operation:
    • Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
    • To remove, lift latch to disengage and pull computer out of docking station
  • VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products

Kit Includes:

  • Zebra ET51/56 8" SLIM Dual USB Docking Station
  • Mounting hardware
  • Installation guide

7160-1506-00 Specifications

Weight

1.7 lbs / 0.77 kg

Height

8.75 in / 22.23 cm

Width

9.93 in / / 25.22 cm

Depth

3.12 in / 7.92 cm

Port Replicators:

(2) Powered USB 2.0 (1.5A each)

Antenna Pass-through:

No RF

Power Supply:

Internal powered PCB with 8-40V power input range provides power to charge the Zebra tablet while docked
