Gamber Johnson Zebra ET51 and ET56 8 inch SLIM Charging Cradle 7160-1506-10

Gamber Johnson Cradle 7160-1506-10

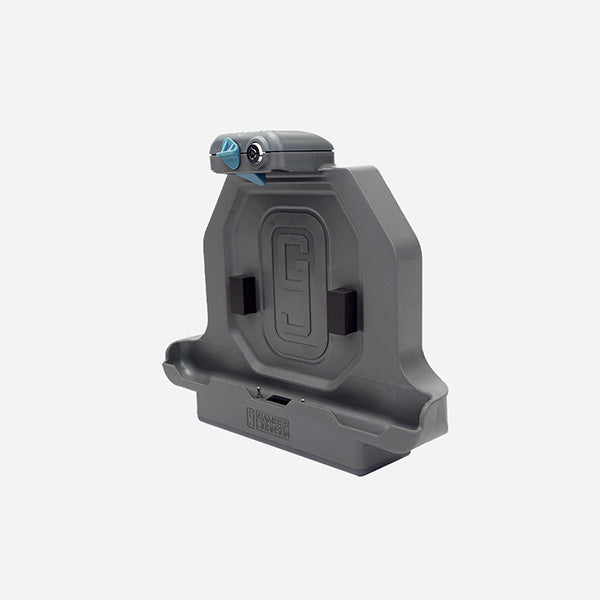

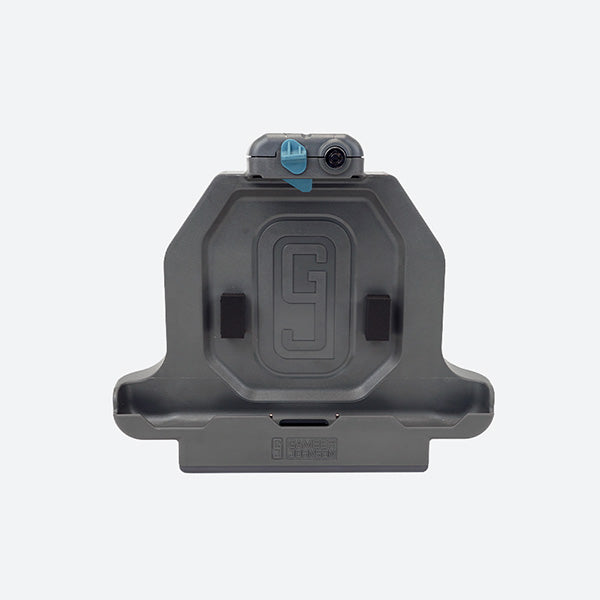

The Gamber Johnson 7160-1506-10 charging cradle is built for the Zebra ET51 and ET56 8 inch tablet line and this slim cradle design is idea for a large number of mounting solutions. The 7160-1506-10 includes the ability to charge the Zebra tablet through the cradle but doesn't include any further port replication (power adapter sold separately, for full list of suggested power adapters please see Specifications Tab.) Featuring a one-handed operated locking latch, the 7160-1506-10 deters theft while maintaining ease of use. If port replication is required for the Zebra tablet please alternatively consider a dock for the unit such as the Gamber Johnson part number 7170-0523. The 7160-1506-10 cradle or any other Gamber Johnson piece of equipment can be purchased directly on ruggedordie.com or email us for a free quote at sales@ruggedordie.com

7160-1506-10 Features

  • Designed for the Zebra ET51/56  8 inch rugged tablet computer with rugged frame installed
  • This cradle does not accommodate ET51/56 accessories
    Front camera on ET5X accessible when the tablet is in the cradle
  • Compatible with Windows or Android operating systems
    Access to all control buttons and ports while the tablet is safely docked
  • Guide pins prevent damage to the charging pins when cradling the tablet
  • Powered POGO pins transfer power to the  Zebra tablet (requires external power adapter)
  • Composite/aluminum design for reduced weight and extended durability
  • Designed with rounded edges to enhance personal safety
  • Keyed lock for security and theft deterrence
  • Forward facing docking latch/release for easy one-handed operation:

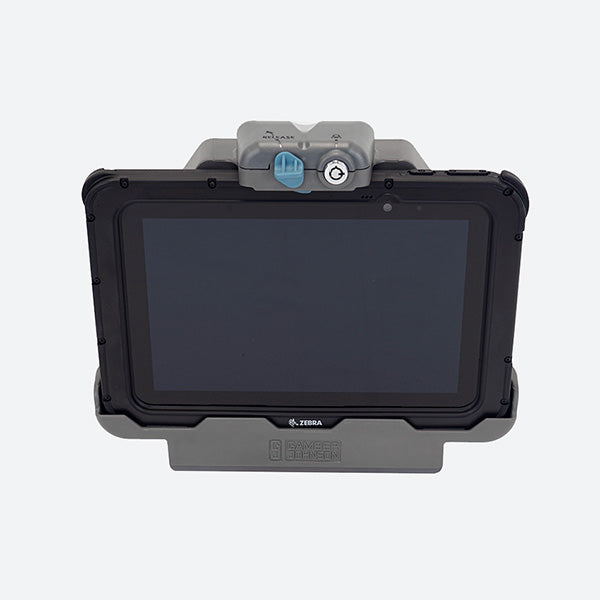

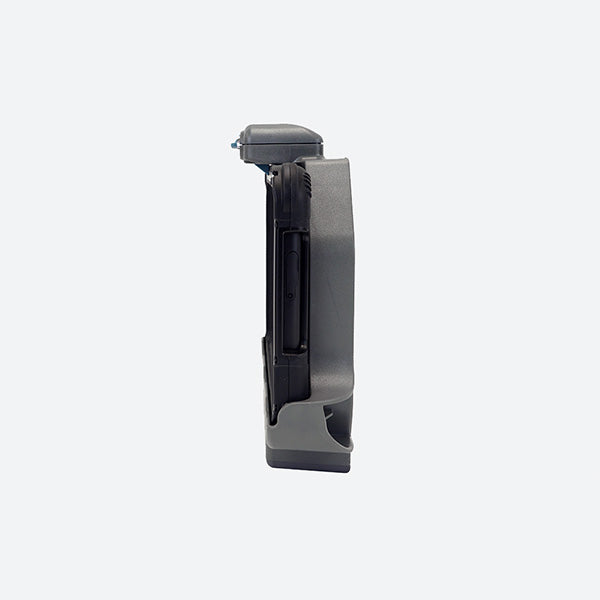

    • Insert bottom of Zebra tablet into the cradle and push top of the tablet until the lock engages
    • To remove, lift latch to disengage and pull computer out of cradle
  • VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products

Kit Includes:

  • Zebra ET51/56 8 inch SLIM Tablet Charging Cradle
  • Mounting hardware
  • Installation guide

7160-1506-10 Specifications

Weight

1.6 lbs / 0.73 kg

Height

8.75 in / 22.23 cm

Width

9.93 in / 25.22 cm

Depth

3.12 in / 7.92 cm

Power Supply:

NOT included. Use power supplies:

  • LIND 11-16V Auto power adapter (7300-0415)
  • LIND 12-32V Isolated Power Adapter (7300-0466)
  • LIND 20-60V Isolated Power Adapter (7300-0467)
  • LIND 72-110V Isolated Power Adapter (7300-0418)

Testing Specifications:

  • MIL-STD 810G Shock/Vibration Tested
  • MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (storage/operational)
  • SAE J1455 Crash Tested
  • Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
  • RoHS, FCC, CE Certifications

Port Replicators:

  • Power Input 12VDC through pogo pin connector

Compatibility:

  • Compatible with Zebra ET51/56 rugged tablet computer with rugged frame installed
$335.66 USD
