Gamber Johnson Zebra ET51/56 8 in. SLIM Dock 7160-1506-20

Gamber Johnson Dock 7160-1506-20

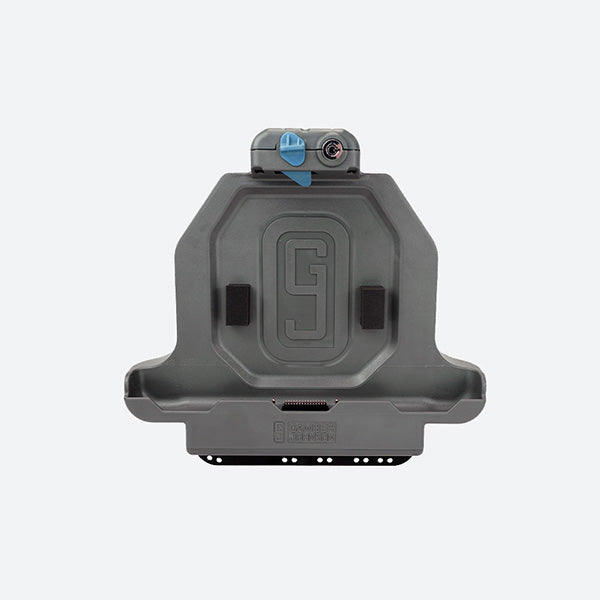

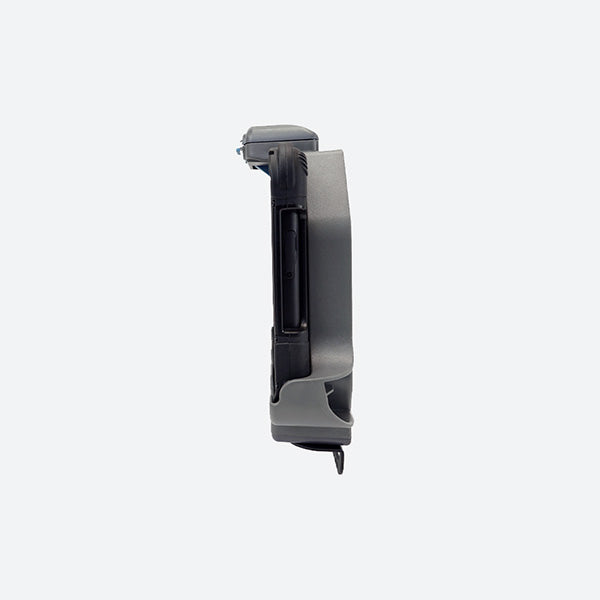

Zebra ET51/56 8 inch SLIM Port Replication Docking Station. This dock features a complete cable restraint-system and the front-facing release latch button makes one-handed docking/release very easy. The 75mm VESA mounting pattern will attach to most Gamber-Johnson motion attachments.

7160-1506-20 Features

  • Designed for the Zebra ET51/56 8" rugged tablet computer with rugged frame
  • This dock does not accommodate ET51/56 accessories
    Front camera on ET5X accessible when the tablet is in the docking station
  • Compatible with Windows or Android operating systems
    Access to all control buttons and ports while the tablet is safely docked
  • POGO pin connector provides power to charge the Zebra tablet while docked
  • Bottom-facing I/O ports; integrated cable restraint/cable management system
  • Guide pins prevent damage to the docking connection when docking the tablet
  • Composite/aluminum design for reduced weight and extended durability
  • Designed with rounded edges to enhance personal safety
  • Keyed lock for security and theft deterrence
  • Forward facing docking latch/release for easy one-handed operation:
    • Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
    • To remove, lift latch to disengage and pull computer out of docking station
  • VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products

Kit Includes:

  • Zebra ET51/56 8" SLIM Port Replication Docking Station
  • Mounting hardware
  • Installation guide

7160-1506-20 Specifications

Weight

2.2 lbs / 1 kg

Height

8.75 in / 22.23 cm

Width

9.93 in / 25.22 cm

Depth

3.12 in / 7.92 cm

Port Replicators:

Zebra Certified Electronics
USB 3.0 (2) - 9 pin (900mA)
RS232 Serial (1) - Power on pin 9 (825mA)
Ethernet (1) - RJ45 (322 mb/s)
Power Input: 12VDC

Antenna Pass-through:

No RF

Power Supply:

NOT included. Use power supplies:

LIND 11-16V Auto power adapter (7300-0415)
LIND 12-32V Isolated Power Adapter (7300-0466)
LIND 20-60V Isolated Power Adapter (7300-0467)
LIND 72-110V Isolated Power Adapter (7300-0418)
