Gamber Johnson Zebra ET51/56 10 in. SLIM Dual USB Dock w MP205 Connection 7160-1576-02

Gamber Johnson Dock 7160-1576-02

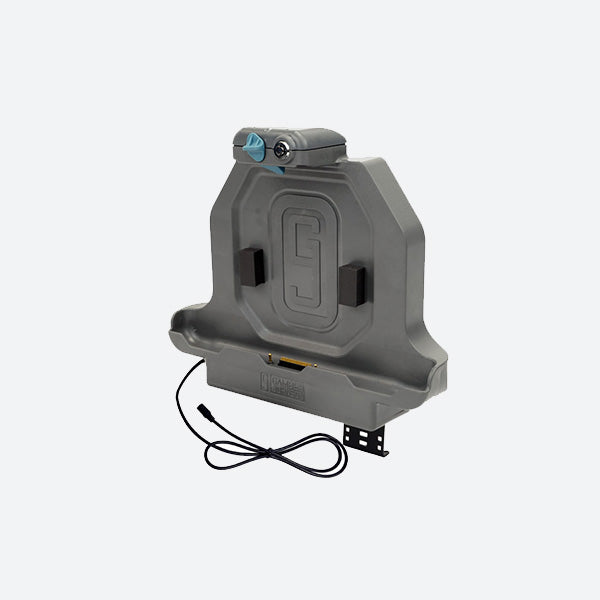

Built for a Zebra ET51 or 56 10 inch tablet, the Gamber Johnson Docking Station 7160-1576-02 provides power through an MP205 connection as well as port replication and is built to accommodate the Zebra tablets with a rugged frame installed. Able to charge the Zebra tablet while docked, the 7160-1576-02 features port replication including a ethernet, serial, and quantity 2 USB 3.0 ports. The 7160-1576-02 has both VESA 75 mm and AMPs hole mounting patterns included so is compatible with a wide variety of mounting solutions and motion attachments including the Gamber Johnson Mongoose (part number 7160-0220.) The 7160-1576-02 can be purchased directly on ruggedordie.com or if you need assistance turning it into a complete mounting solution, reach out to us through our live chat feature - which is always answered by humans and never by bots - during our regular business hours of Mon-Fri 8-6PM.

7160-1576-02 Features

  • Designed for the Zebra ET51/56 10" rugged tablet computer with rugged frame
  • This docking station does not accommodate ET51/56 accessories
  • Front camera on ET5X accessible when the tablet is in the docking station
  • Compatible with Windows or Android operating systems
  • POGO pin connector and internal powered PCB provides power to charge the Zebra tablet while docked
  • 8-40V power input range with power filtering PCB

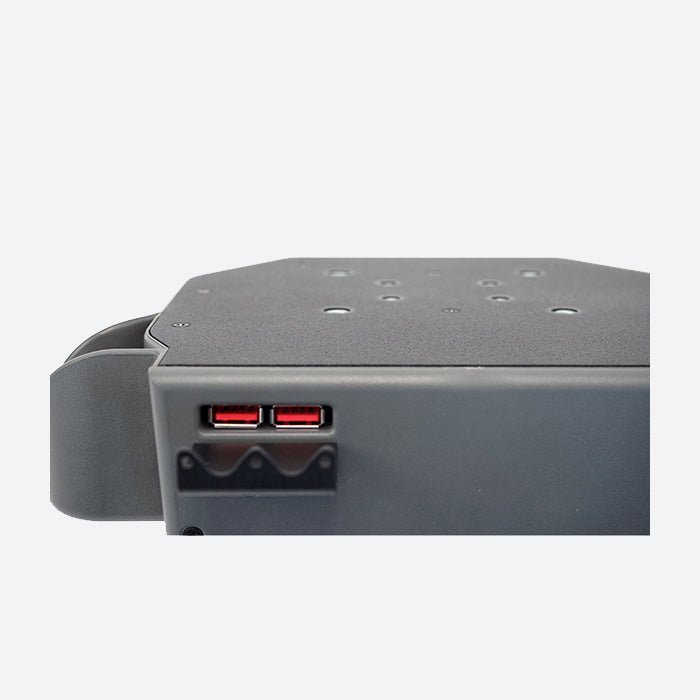

  • Dual powered USB ports; 1.5A for each port to connect peripheral devices
  • Access to all control buttons and ports while the tablet is safely docked
  • Bottom-facing I/O ports; integrated cable restraint/cable management system
  • 40" power cable with MP205 in-line jack to quickly connect to a compatible power adapter
  • Composite/aluminum design for reduced weight and extended durability
  • Designed with rounded edges to enhance personal safety
  • Keyed lock for security and theft deterrence
  • Forward facing docking latch/release for easy one-handed operation:
    • Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
    • To remove, lift latch to disengage and pull computer out of docking station

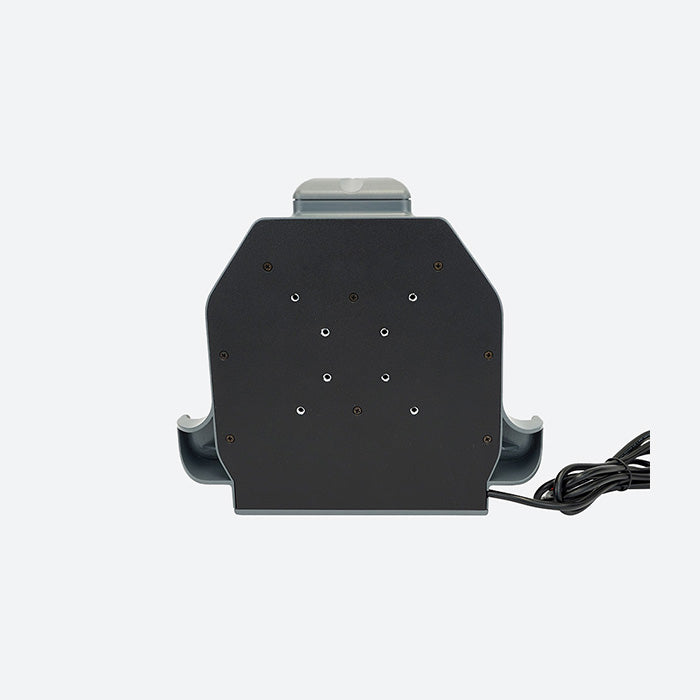

  • VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products

Kit Includes:

  • Zebra ET51/56 10" SLIM Dual USB Docking Station with MP205 Connection
  • Mounting hardware
  • Installation guide

7160-1576-02 Specifications

Weight

1.9 lbs / 0.86 kg

Height

11.37 in / 28.88 cm

Width

11.72 in / 29.77 cm

Depth

3.05 in / 7.75 cm

Port Replicators:

(2) Powered USB 2.0 (1.5A each)

Antenna Pass-through:

No RF

Power Supply:

Internal powered PCB with 8-40V power input range provides power to charge the Zebra tablet while docked.

Optional available external power adapters with MP205 connectors include:

LIND 12-32V isolated material handling power adapter with MP205 connector (7300-0447)
LIND 20-60V isolated material handling power adapter with MP205 connector (7300-0473)
LIND 70-110V isolated material handling power adapter with MP205 connector (7300-0448)
