Gamber Johnson Zebra ET51 and 56 10 inch SLIM Charging Cradle 7160-1576-10

Gamber Johnson Cradle 7160-1576-10

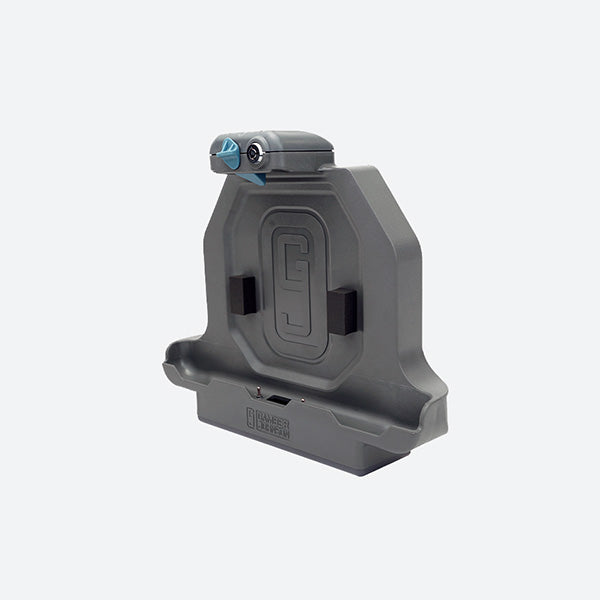

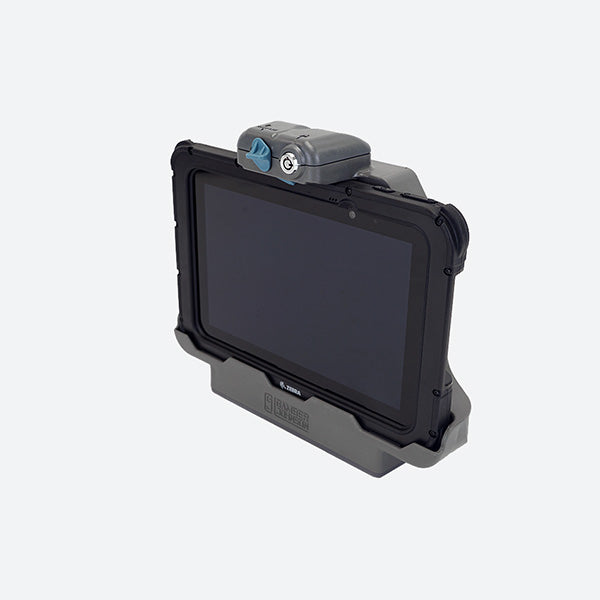

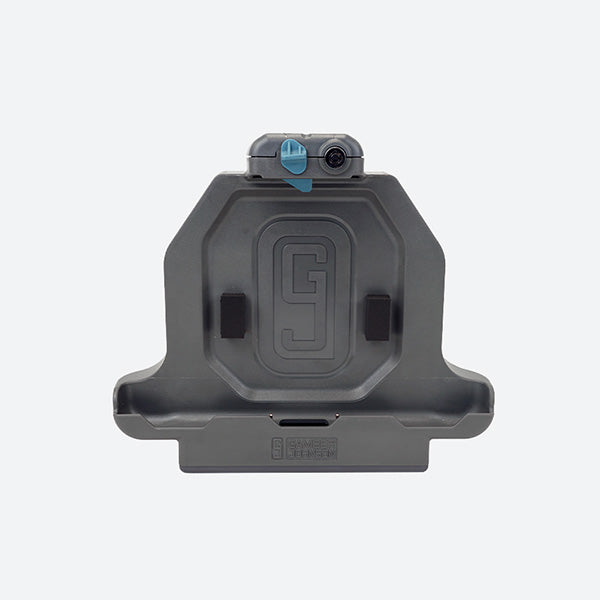

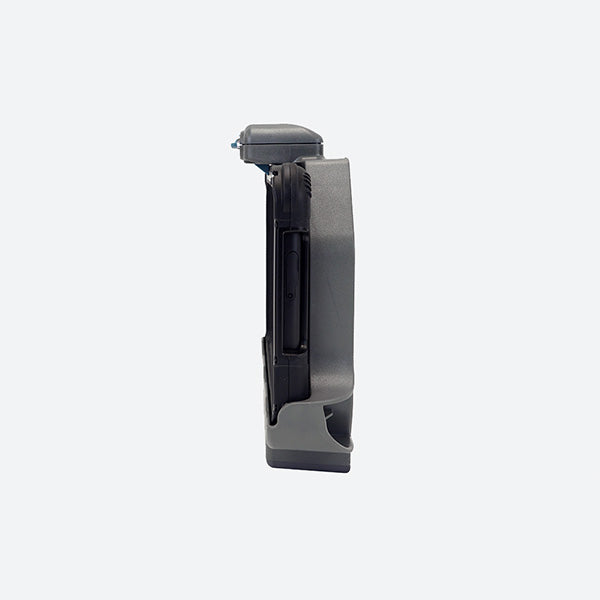

Designed for a Zebra ET51 or 56 10 inch tablet, the Gamber Johnson SLIM Cradle 7160-1576-10 is built to accommodate the Zebra tablets with a rugged frame installed. Even though the 7160-1576-10 doesn't provide any port replication, it does have a power pass through and can charge the Zebra tablet while docked. To prevent tampering and theft, the 7160-1576-10 includes a locking latch which secures the Zebra tablet in place. The 7160-1576-10 has both VESA 75 mm and AMPs hole mounting patterns included so is compatible with a wide variety of mounting solutions and motion attachments including the Gamber Johnson Mongoose (part number 7160-0220.) The 7160-1576-10 can be purchased directly on ruggedordie.com or if you need assistance turning it into a complete mounting solution, reach out to our Rugged or Die sales department at sales@ruggedordie.com

7160-1576-10 Features

• Designed for the Zebra ET51/56 10" rugged tablet computer with rugged frame
• This cradle does not accommodate ET51/56 accessories
• Front camera on ET5X accessible when the tablet is in the cradle
• Compatible with Windows or Android operating systems
• Access to all control buttons and ports while the tablet is safely docked
• Guide pins prevent damage to the charging pins when cradling the tablet
• Powered POGO pins transfer power to the  Zebra tablet (requires external power adapter)
• Composite/aluminum design for reduced weight and extended durability
• Designed with rounded edges to enhance personal safety
• Keyed lock for security and theft deterrence
• Forward facing docking latch/release for easy one-handed operation:
  • Insert bottom of Zebra tablet into the cradle and push top of the tablet until the lock engages
  • To remove, lift latch to disengage and pull computer out of cradle
• VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products

Kit Includes:

7160-1576-10 Specifications

Weight

1.8 lbs / 0.82 kg

Height

10.67 in / 27.1 cm

Width

11.72 in / 29.77 cm

Depth

3.06 in / 7.77 cm

Power Supply:

Testing Specifications:

Port Replicators:

Antenna Pass-through:
