Gamber Johnson Zebra ET51 or 56 10 In. SLIM Dock 7160-1576-20

Gamber Johnson Dock 7160-1576-20

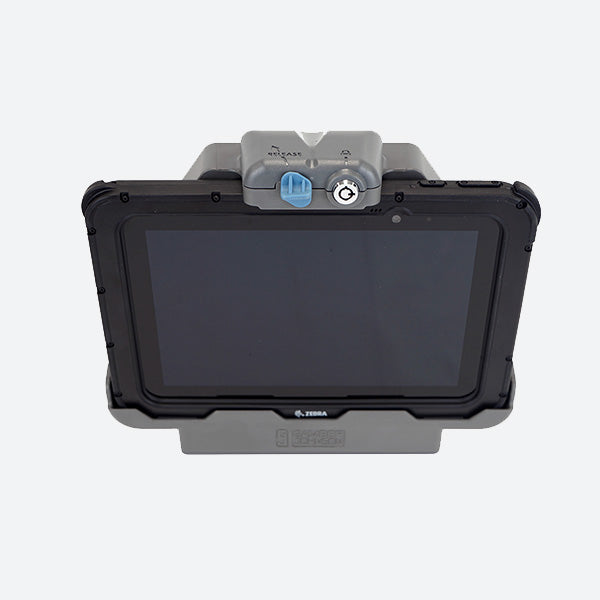

Built for a Zebra ET51 or 56 10 inch tablet, the Gamber Johnson Docking Station 7160-1576-20 provides power and port replication and is built to accommodate the Zebra tablets with a rugged frame installed. Able to charge the Zebra tablet while docked, the 7160-1576-20 features port replication including a ethernet, serial, and quantity 2 USB 3.0 ports. To prevent theft, the 7160-1576-20 includes a locking latch which secures the Zebra tablet in place. The 7160-1576-20 has both VESA 75 mm and AMPs hole mounting patterns included so is compatible with a wide variety of mounting solutions and motion attachments including the Gamber Johnson Mongoose (part number 7160-0220.) The 7160-1576-20 can be purchased directly on ruggedordie.com or if you need assistance turning it into a complete mounting solution, reach out to our Rugged or Die sales department at sales@ruggedordie.com

7160-1576-20 Features

  • Designed for the Zebra ET51/56 10" rugged tablet computer with rugged frame
  • This dock does not accommodate ET51/56 accessories
  • Front camera on ET5X accessible when the tablet is in the docking station
  • Compatible with Windows or Android operating systems
  • Access to all control buttons and ports while the tablet is safely docked
  • POGO pin connector provides power to charge the Zebra tablet while docked
  • Bottom-facing I/O ports; integrated cable restraint/cable management system
  • Guide pins prevent damage to the docking connection when docking the tablet
  • Composite/aluminum design for reduced weight and extended durability
  • Designed with rounded edges to enhance personal safety
  • Keyed lock for security and theft deterrence
  • Forward facing docking latch/release for easy one-handed operation:
    • Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
    • To remove, lift latch to disengage and pull computer out of docking station
  • VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products

Kit Includes:

  • Zebra ET51/56  10" SLIM Port Replication Docking Station
  • Mounting hardware
  • Installation guide

7160-1576-20 Specifications

Weight

2.4 lbs / 1.09 kg

Height

11.05 in / 28.07 cm

Width

11.72 in / 29.77 cm

Depth

3.06 in / 7.77 cm

Port Replicators:

Zebra Certified Electronics
USB 3.0 (2) - 9 pin (900mA)
RS232 Serial (1) - Power on pin 9 (825mA)
Ethernet (1) - RJ45 (322 mb/s)
Power Input: 12VDC

Antenna Pass-through:

No RF

Power Supply:

NOT included. Use power supplies:

LIND 11-16V Auto power adapter (7300-0415)
LIND 12-32V Isolated Power Adapter (7300-0466)
LIND 20-60V Isolated Power Adapter (7300-0467)
LIND 72-110V Isolated Power Adapter (7300-0418)

Compatibility:

  • Compatible with Zebra ET51/56 rugged tablet computer with rugged frame
