Gamber Johnson Zebra ET51/56 10 SLIM Cradle 7160-1576-90

Gamber Johnson Cradle 7160-1576-90

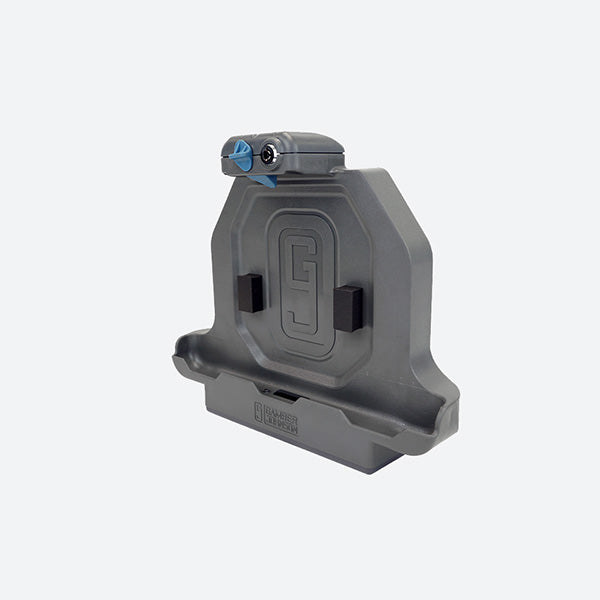

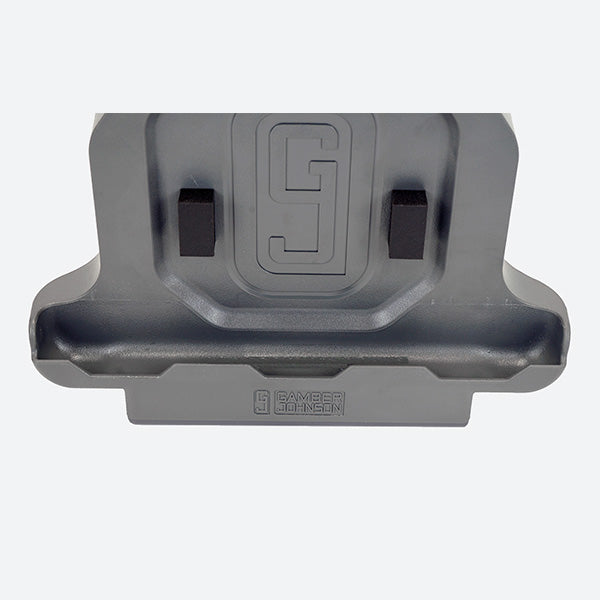

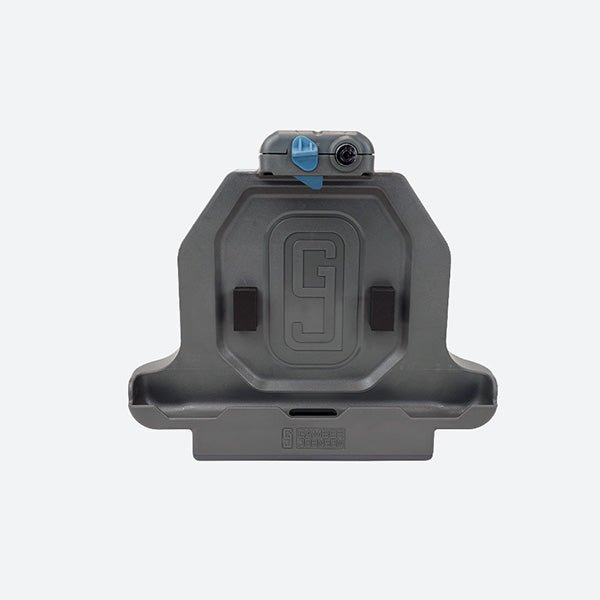

Designed for a Zebra ET51 or 56 10 inch tablet, the Gamber Johnson SLIM Cradle 7160-1576-90 is built to simply hold the tablet safely and securely. To prevent tampering and theft, the 7160-1576-90 includes a locking latch which secures the Zebra tablet in place. The 7160-1576-90 has both VESA 75 mm and AMPs hole mounting patterns included so is compatible with a wide variety of mounting solutions and motion attachments including the Gamber Johnson Mongoose (part number 7160-0220.) The 7160-1576-90 can be purchased directly on ruggedordie.com or if you need assistance turning it into a complete mounting solution, reach out to our Rugged or Die sales department at sales@ruggedordie.com

7160-1576-90 Features

• Designed for the Zebra ET51/56 10" rugged tablet computer with rugged frame
• This cradle does not accommodate ET51/56 accessories
• Front camera on ET5X accessible when the tablet is in the cradle
• Compatible with Windows or Android operating systems
• Access to all control buttons and ports while the tablet is safely docked
• Composite/aluminum design for reduced weight and extended durability
• Designed with rounded edges to enhance personal safety
• Keyed lock for security and theft deterrence
• Forward facing docking latch/release for easy one-handed operation:

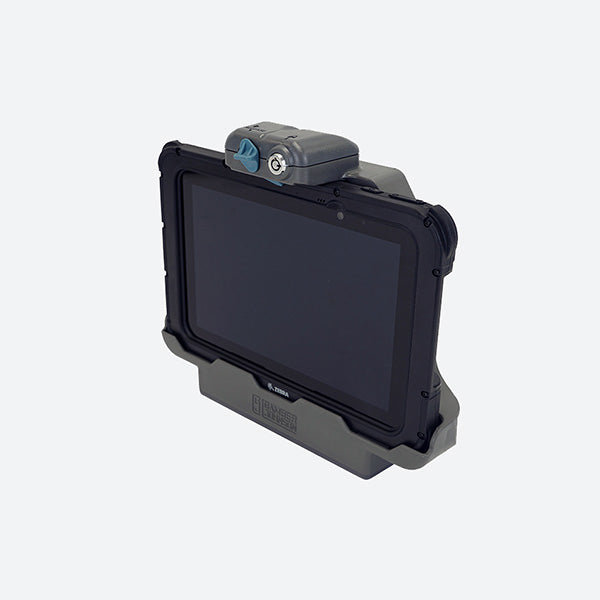

  • Insert bottom of Zebra tablet into the cradle and push top of the tablet until the lock engages
  • To remove, lift latch to disengage and pull computer out of cradle
• VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products
• MIL-STD 810G shock/vibration, RoHS, FCC, CE, and SAE J1455 crash certifications

Kit Includes:

7160-1576-90 Specifications

Weight

1.7 lbs / 0.77 kg

Height

11.05 in / 28.07 cm

Width

11.72 in / 29.77 cm

Depth

3.06 in / 7.77 cm

Power Supply:

Testing Specifications:

Port Replicators:

Antenna Pass-through:
