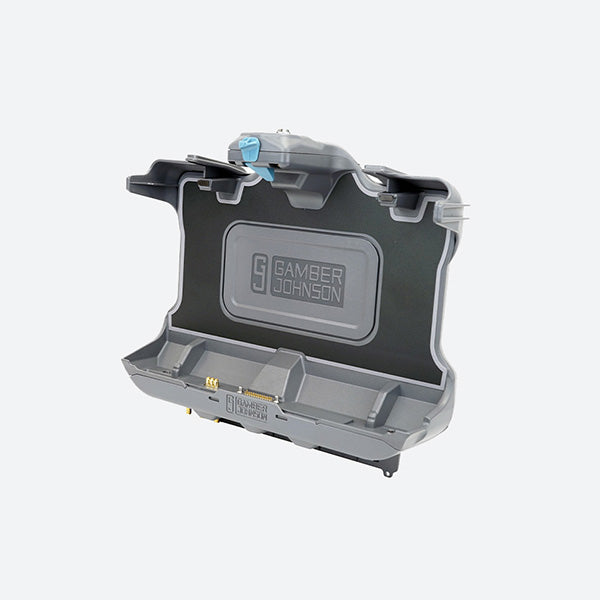

Gamber Johnson Getac F110 Vehicle Dock (Tri RF) 7160-1584-03

Gamber Johnson Dock 7160-1584-03

Gamber Johnson vehicle docking station designed for the Getac F110 Vehicle Docking Station with Tri RF pass through.

7160-1584-03 Features

• Getac certified electronics
• Compatible with the Getac F110 G7 tablet and all previous versions of the F110 tablet
• Docking station accommodates the tablet's mag strip reader and rotating hand strap
•  Access to all tablet control buttons and ports while the tablet is docked
• Downward-facing I/O ports, integrated cable strain relief and cable management system
• Floating docking connector for reliable connectivity in the most rugged environments
• One-hand docking and release for efficient use all day long
• Keyed lock for theft deterrence
• Gamber-Johnson rugged construction and reliability
• Composite design for reduced weight and durability
• VESA 75mm mounting pattern

7160-1584-03 Specifications

Weight

2.88 lbs / 1.31 kg

Height

13.33 in / 33.86 cm

Width

11.75 in / 29.85 cm

Depth

4.69 in / 11.91 cm

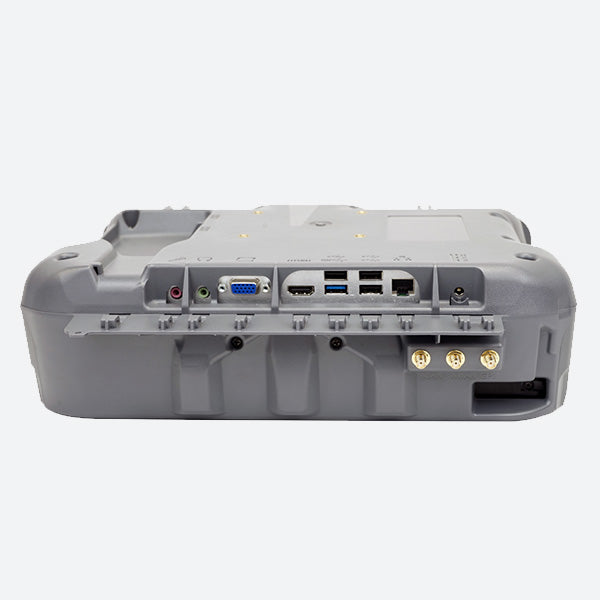

Port Replicators:

Getac certified electronics
(1) Ethernet - RJ45
(3) USB 2.0 (500mA) - 4 pin
(1) USB 3.0 (900mA) - 9 pin
(1) VGA D-sub - 9 pin
(1) HDMI - 19 pin
Tri RF Pass-through (optional) - SMA
Power input - 19VDC
(1 each) Speakers / Microphone

Antenna Pass-through:

Tri RF

Power Supply:

Power adapter is not included, please use one of the following:

Getac 120W automotive power adapter with bare wire lead (7300-0516)
Getac 120W automotive power adapter with cigarette lighter connector (7300-0471)
LIND 12-32V material handling isolated power adapter (7300-0413)
LIND 20-60V material handling isolated power adapter (7300-0412)
LIND 72-110V material handling isolated power adapter (7300-0416)
