Gamber Johnson Zebra ET5X 10 in. 2-in-1 Attachable Keyboard 7160-1585-00

Gamber Johnson Keyboard 7160-1585-00

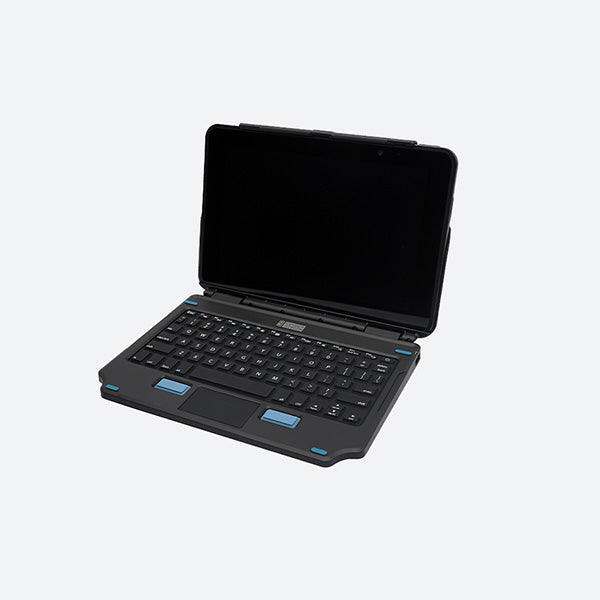

Able to easily turn a Zebra ET5X 10 inch tablet into a 2-in-1 laptop, the Gamber Johnson Attachable Keyboard 7160-1585-00 adds functionality and utility to the portability of a Zebra tablet. Seamlessly connecting with a Zebra tablet and providing a 76 key keyboard with touchpad, the 7160-1585-00 also can be closed for storage while still connected and functions as a kickstand when open. If you are interested in more Gamber Johnson accessories for the Zebra line of tablets, email us at sales@ruggedordie.com for a free consultation and quote!

7160-1585-00 Features

  • Designed for the Zebra ET5X 10” Series Enterprise tablet without rugged frame (Windows or Android compatible)
  • Integrated center touchpad with right and left mouse buttons
  • 76-key keyboard with 12 function keys for custom operation
  • Silicone rubber keys with white lettering and a rugged polycarbonate case
  • Easy to install - POGO docking connector links the tablet to the keyboard
  • Easily connect the tablet to the keyboard; snap the pogo connector onto the tablet, slip the bottom of the tablet into the case and snap the top of the case over the tablet
  • USB 2.0 port (500mA) to attach a mouse, another peripheral, or flash drive
  • Charge the tablet directly from the tablet's USB-C port
  • All computer features including camera, microphone, speakers, USB-C port and all control buttons are accessible when the tablet is docked onto the keyboard
  • Friction hinge and screen footrest with rubber feet help position the tablet at a comfortable viewing angle
  • Hard carry handle with two attachment rings for shoulder strap enhance portability
  • Low-profile ergonomic design for ease of use in a mobile environment
  • Available in US English (7160-1585-00), UK (7160-1585-01), German (7160-1585-02), French (7160-1585-03), Spanish (7160-1585-04), 7160-11585-05 (French CA), and 7160-1585-06 (Thai).
  • Contact Gamber-Johnson for other language options.

Kit Includes:

  • Zebra ET5X 10" 2in1 Attachable Keyboard (7160-1585-00)
  • Quick Guide
  • Zebra ET5X 10" 2in1 Attachable Keyboard (7160-1585-00)
  • Quick Guide

7160-1585-00 Specifications

Weight

1.31 lbs / 0.59 kg

Height

2.03 in / 5.16 cm

Width

10.8 in / 27.43 cm

Depth

9.71 in / 24.66 cm

Power Supply:

Charge the tablet directly from the tablet's USB-C port; the tablet provides power to the keyboard



Port Replicators:

(1) USB 2.0 (2) (500mA)

Testing Specification:

  • USB-A (2.0) Port: 5V @ 500mA
  • Tablet input power: 5.4V, 1.5A
  • Temperature range:
    • OPERATING: -20°C to 50°C
    • STORAGE: -40°C to 85°C
  • IP54 ingress specifications:  Keyboard
  • IP65 ingress specifications: Connector Adapter
  • Drop Test:
    • 1 meter (39.4”) to concrete: Tablet and Connector Adapter
    • 0.61 meter (24”) to wood: Tablet with Keyboard System
  • MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (Operational: -20°C to 50°C/Storage: -40°C to 85°C)
  • Cycle Tested: 3K Cycles - Insertions, 30K Cycles - Hinge Mechanism
  • Key Cycle Test - 2 Million Press Cycles
  • Key Surface Chemical Resistance
$178.71 USD
$178.71 USD
Shipping calculated at checkout.
