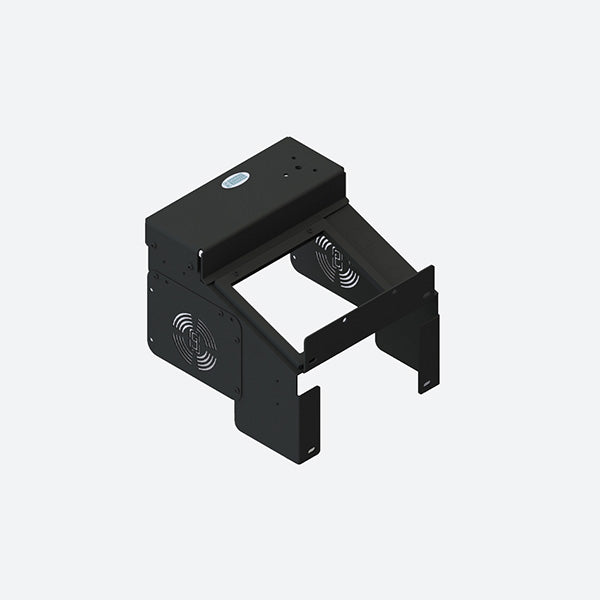

Gamber Johnson 9-in. Workstation Radio Platform (Deep Angled) 7160-1598-01

Gamber Johnson Console Box 7160-1598-01

Designed as a small profile profile built for mounting a variety of equipment without taking up too much valuable vehicle space the 7160-1598-01 is built to mount onto the Gamber Johnson Tall Workstation Box (part number 7160-0968.) If your vehicle has a 4WD Shifter design, please alternatively consider Gamber Johnson part number 7160-1598-02. Providing a steeply angled 9 inches of mounting room, the 7160-1598-01 can mount radio heads, controllers, and more. The 7160-1598-01 was designed so that the steep mounting angle can mount radios and not interfere with the motion of a mounted computer and motion attachment. Including mounting points for mic clips the 7160-1598-01 also has pre-drilled holes to mount a Gamber Johnson motion attachment. If you have questions about whether the 7160-1598-01 is a good fit for your vehicle equipment solution or interested in other Gamber Johnson parts we love to chat with our customers, call us today at 816-388-0035

7160-1598-01 Features

• Mounts directly to the front of the Small 9" Tall Workstation Box (7160-0968) and provides mounting space for radios and controls
• Updated design provides additional clearance for radios in the angled section when using a motion attachment
• Motion attachments are easily mounted to the removable top plate via the 3-hole pattern
• One knockout for switches or USB charging and one 12 volt knockout available
• Mounting points on both sides for a standard mic clip or Magnetic Mic
• Constructed of heavy gauge steel and black powder coated for long-term durability

7160-1598-01 Specifications

Weight

14.25 lbs / 6.46 kg

Height

11.5 in / 29.21 cm

Width

12 in / 30.48 cm

Depth

12.5 in / 31.75 cm
