Gamber Johnson Samsung Galaxy XCover 5 Charging Cradle w Bare Wire 7160-1625-10

Gamber Johnson Cradle 7160-1625-10

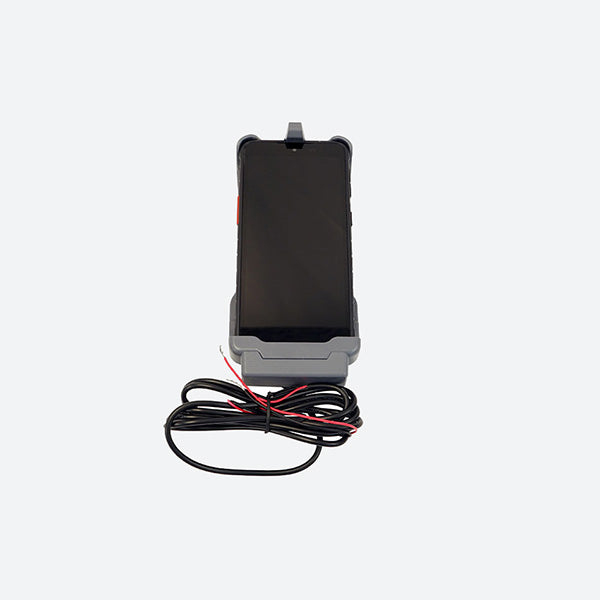

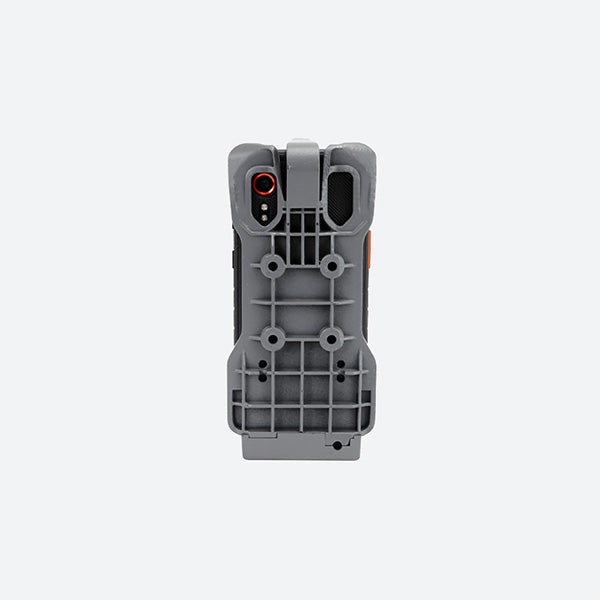

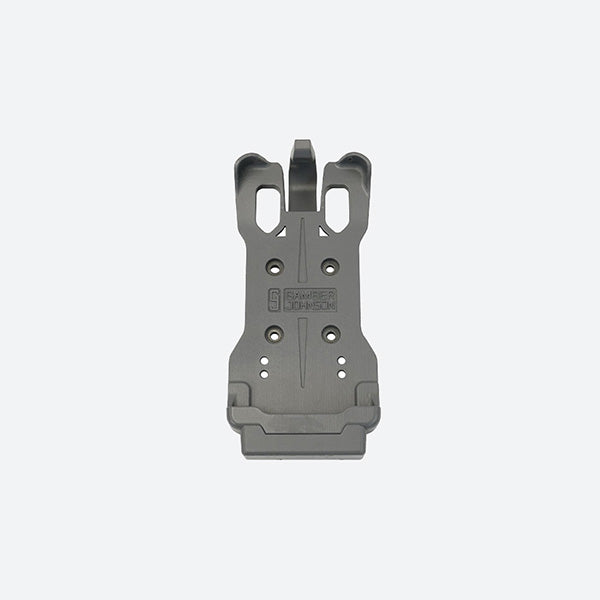

Designed for the Samsung Galaxy XCover 5 the Gamber Johnson Cradle 7160-1625-10 can accommodate the Galaxy XCover 5 when the tablet has no accessories attached. The 7160-1625-10 includes a power adapter with a bare wire end to charge the XCover 5 while docked. Offering a stable and durable mount for the Samsung handheld, the 7160-1625-10 allows an operator to access all features including buttons and camera on the XCover 5 while it is still seated in the cradle. Featuring an AMPs mounting pattern, the 7160-1625-10 can be mounted on any motion attachment or mount with the same AMPs hole pattern including many Zirkona small profile mounts. Let a Rugged or Die sales expert help you develop a complete mounting solution for your Samsung Galaxy XCover 5, give us a call at 816-388-0035 or chat with with us today!

7160-1625-10 Features

• Designed for the Samsung Galaxy Xcover 5 smartphone without accessories
• 10-40V power input range to support a wide range of mobile applications
• Access to all control buttons and camera while docked
• Charging Cradle design is compatible with Samsung’s built-in barcode scanning using the onboard camera and long and short-range RFID reading capabilities which are optimized for fast, accurate data transmission
• Simple, one-handed operation:
  • Insert the bottom of the smartphone into the cradle, rotate the phone back, pressing until the latch snaps over the top of the phone
  • To remove, press up on the release button until the latch clears the top of the phone, rotate the phone forward and pull it away from the cradle
• POGO pin connector and internal power supply provides power to charge the Samsung phone while docked
• Fast Charging through POGO pin connector

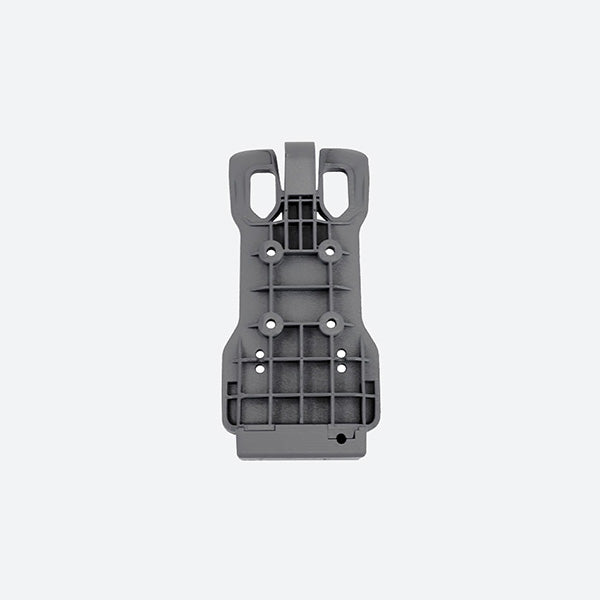

• AMPS mounting pattern – compatible with Zirkona

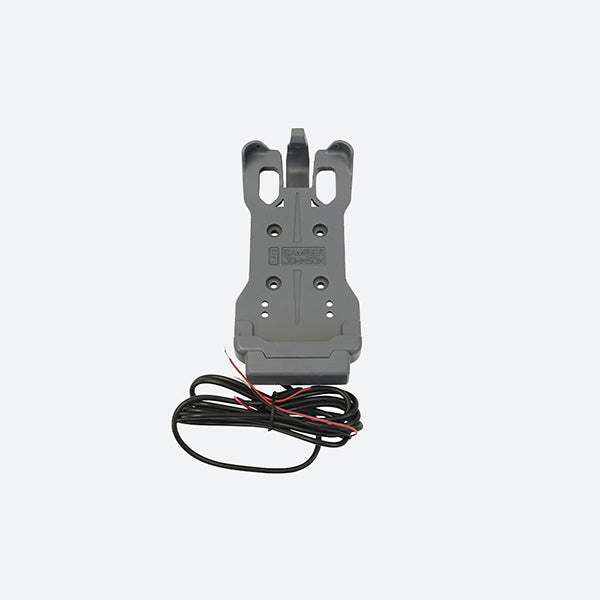

• Integrated bare wire charging cable

7160-1625-10 Specifications

• Weight

  0.22 lbs / 0.1 kg

• Height

  6.5 in / 16.51 cm

• Width

  3.1 in / 7.87 cm

• Depth

  1.5 in / 3.81 cm

  Testing Specifications:

  • MIL-STD 810G Shake/Vibration
  • SAE J1455 Crash Tested
