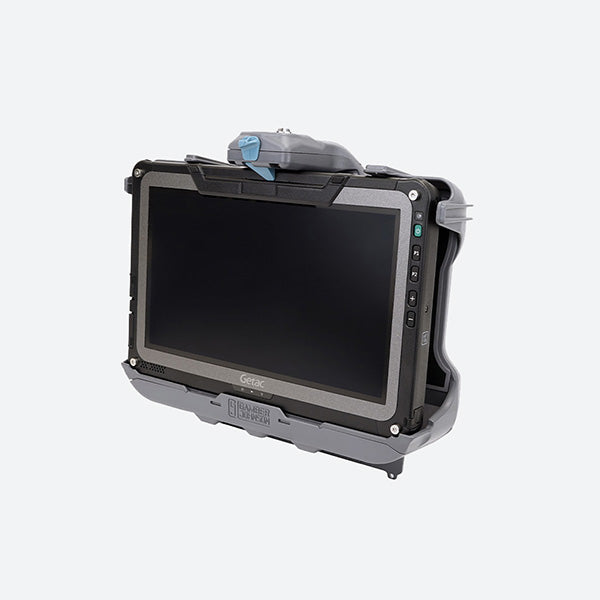

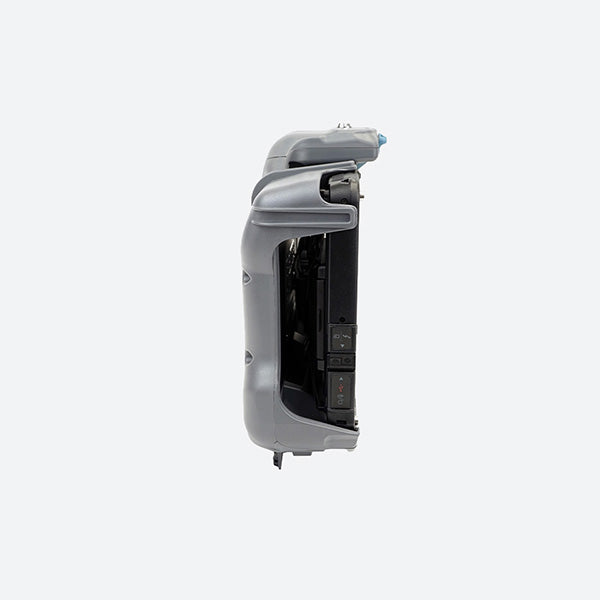

Gamber Johnson Getac F110 Vehicle Cradle (No RF) 7160-1642-00

Gamber Johnson Cradle 7160-1642-00

Designed as a bare bones and budget friendly unit meant only to secure the Getac F110 to a mount, the Gamber Johnson cradle 7160-1642-00 kit does not include any power supply, port replication or RF pass through. The VESA 75mm mounting pattern on the back of the 7160-1642-00 enables it to attach to a large variety of vehicle motion attachments. If you require a docking solution for the F110 with more features such as port replication, RF pass through, or a kit that includes a power adapter. please send us an email with your needs at sales@ruggedordie.com so we can prepare a free quote with the optimal equipment for your solution. Alternatively our chat service is always manned by real humans and never by bots, chat with us during our regular business hours of Mon-Fri 8-6PM!

7160-1642-00 Features

• Compatible with the Getac F110 G7 tablet and all previous versions of the F110 tablet
• Cradle accommodates the tablet's mag strip reader and rotating hand strap
• Access to all tablet control buttons and ports while the tablet is cradled
• One-hand docking and release for efficient use all day long
• Keyed lock for theft deterrence
• Gamber-Johnson rugged construction and reliability
• Composite design for reduced weight and durability
• VESA 75mm mounting pattern

7160-1642-00 Specifications

Weight

2.58 lbs / 1.17 kg

Height

13.33 in / 33.86 cm

Width

11.75 in / 29.85 cm

Depth

4.69 in / 11.91 cm

Power Supply:

Power adapter is not included, please use one of the following:

Getac 120W automotive power adapter with bare wire lead (7300-0516)
Getac 120W automotive power adapter with cigarette lighter connector (7300-0471)
LIND 12-32V material handling isolated power adapter (7300-0413)
LIND 20-60V material handling isolated power adapter (7300-0412)
LIND 72-110V material handling isolated power adapter (7300-0416)
NOTE: With the tablet in the cradle; the power adapter will plug directly into the tablet computer.

Testing Specifications:

Getac Certified
RoHS, FCC, CE, UKCA
MIL-STD 810H vibration testing: Operational/Non-operational
Shock crash hazard: SAE J1455, Mechanical Shock 40g
Environmental: Thermal Shock, Humidity, High/Low Temperature - Storage/Operational
Cycle Testing: Docking Connector, Latch and Locking mechanism - 30,000 cycles

Antenna Pass-through:

No RF
