Gamber Johnson Getac ZX10 Tablet Dock (No RF) 7160-1675-00

Gamber Johnson Dock 7160-1675-00

The Gamber Johnson 7160-1675-00 docking station is designed for the Getac ZX10 Rugged Tablet but does not come with any RF pass through (if that feature is needed please consider ZX10 docking station 7160-1675-03.) The 7160-1675-00 docking station comes with a variety of ports including full-powered dual USB ports, microphone and speaker/headphone port and power input. With a VESA 75mm mounting pattern on the back, the 7160-1675-00 can mount to a variety of Gamber-Johnson mounting equipment pieces that feature the same mounting pattern such as the Gamber Johnson Clevis Motion Attachment (Gamber Johnson part number 7160-0750.) If you are interested in a Rugged or Die sales rep assisting with building the optimal vehicle mounting solution for your Getac ZX10 tablet just send us an email with your needs to sales@ruggedordie.com

7160-1675-00 Features

• Getac certified electronics

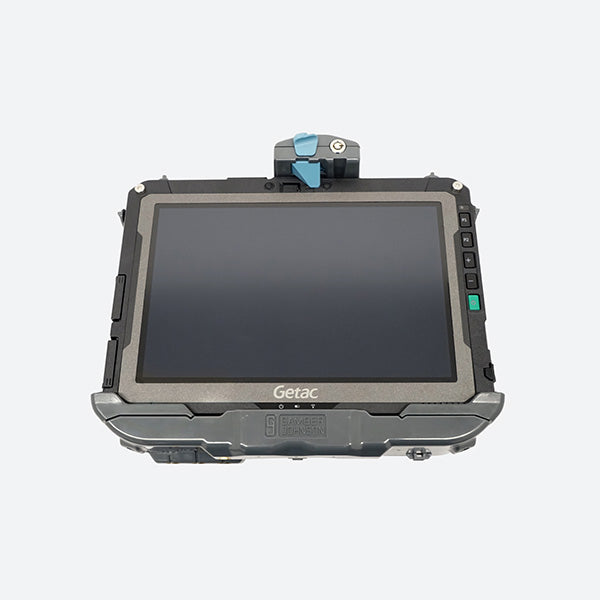

• Compatible with the Getac ZX10 tablet
• Docking station accommodates the tablet's card reader, extended battery, hand strap, stylus, barcode reader, and hard carry handle
• Access to all tablet control buttons and ports while the tablet is docked
• Docking connector gasket provides additional water resistance and protection.

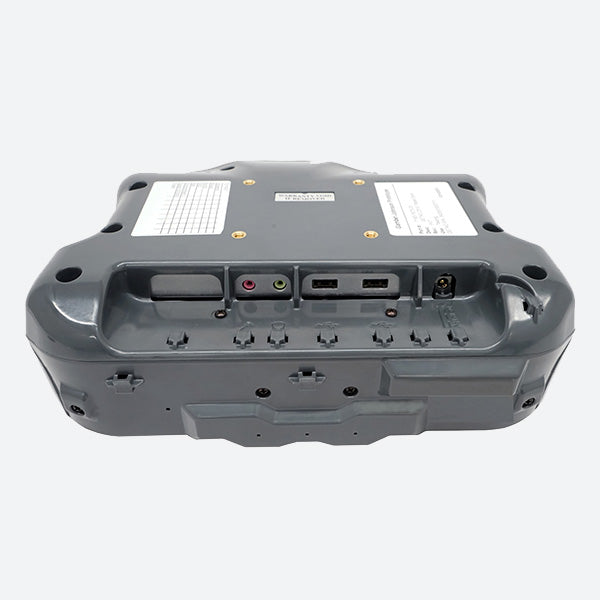

• Downward-facing I/O ports, integrated cable strain relief and cable management system
• Floating docking connector for reliable connectivity in the most rugged environments
• One-hand docking and release for efficient use all day long
• Keyed lock for theft deterrence
• Gamber-Johnson rugged construction and reliability
• Composite design for reduced weight and durability

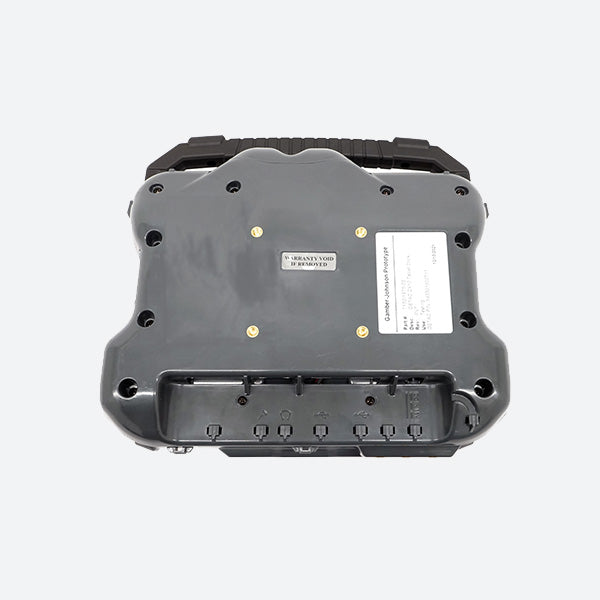

• VESA 75mm mounting pattern

7160-1675-00 Specifications

Weight

2.6 lbs / 1.18 kg

Height

9.89 in / 25.12 cm

Width

11.49 in / 29.18 cm

Depth

4.15 in / 10.54 cm

Port Replicators:

Getac certified electronics
(2) Full Powered USB 2.0 (1.5A Output) - 4 pin
Power input - 19 VDC
(1 each) Headphone / Microphone Tri RF Pass-through (optional)

Antenna Pass-through:

No RF

Power Supply:

Power adapter is not included, please use one of the following:

Getac 65W automotive power adapter with bare wire lead (7300-0744)
Getac 65W automotive power adapter with cigarette lighter connector (7300-0745)
Getac 120W automotive power adapter with bare wire lead (7300-0516)
Getac 120W automotive power adapter with cigarette lighter connector (7300-0471)
LIND 12-32V material handling isolated power adapter (7300-0413)
LIND 20-60V material handling isolated power adapter (7300-0412)
LIND 72-110V material handling isolated power adapter (7300-0416)
