Gamber Johnson Getac ZX10 Tablet Dock (Tri RF) 7160-1675-03

Gamber Johnson Dock 7160-1675-03

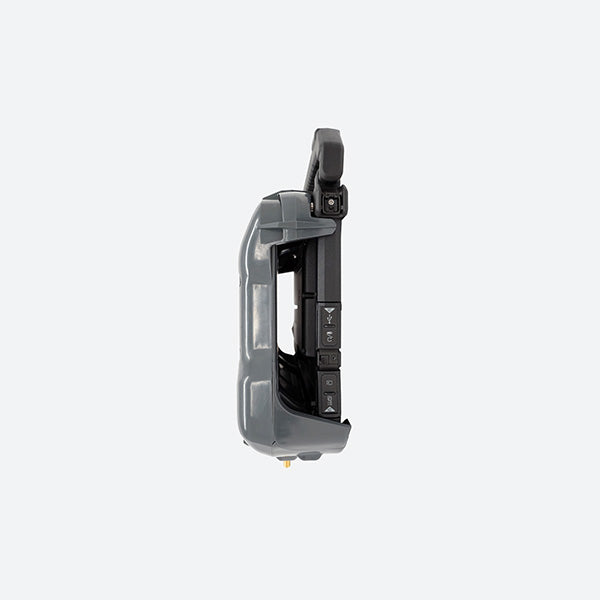

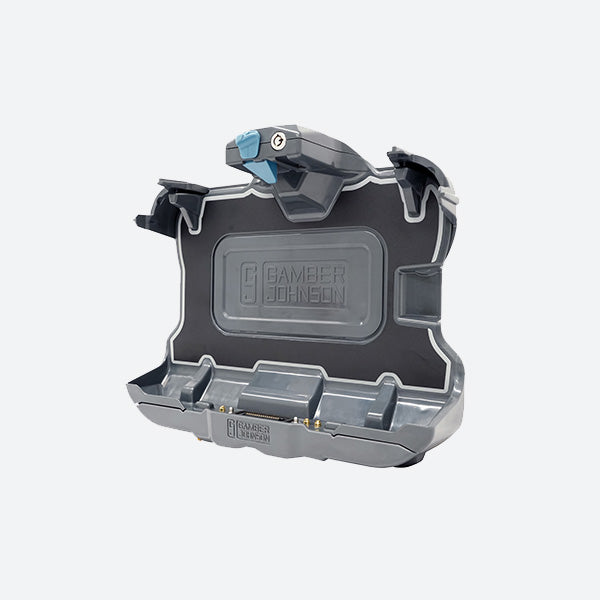

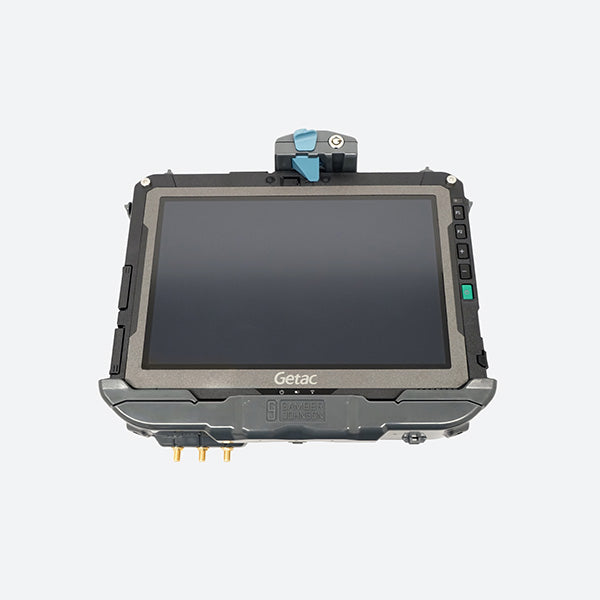

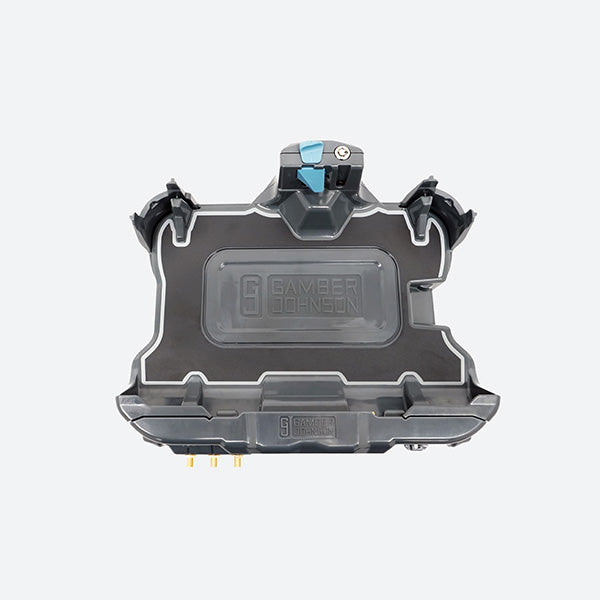

The Gamber Johnson 7160-1675-03 docking station is designed for the Getac ZX10 Rugged Tablet and comes with Tri RF pass through. The 7160-1675-03 docking station comes with a variety of ports including full-powered dual USB ports, microphone and speaker/headphone port and power input. With Tri RF pass through, the ZX10 docking station allows external antennas to be attached and boost the internal signal of the tablet (such as 4G LTE or GPS.) Featuring an easy one-hand docking/release the 7160-1675-03 also has a keyed lock providing theft deterrence. With a VESA 75mm mounting pattern on the back, the 7160-1675-03 can mount to a variety of Gamber-Johnson mounting equipment pieces that feature the same mounting pattern such as the Gamber Johnson Mongoose Motion Attachment (Gamber Johnson part number 7160-0220.) If you are interested in a Rugged or Die sales rep assisting with building the optimal vehicle mounting solution for your Getac ZX10 tablet just send us an email with your needs to sales@ruggedordie.com

7160-1675-03 Features

• Getac certified electronics
• Compatible with the Getac ZX10 tablet
• Docking station accommodates the tablet's card reader, extended battery, hand strap, stylus, barcode reader, and hard carry handle
• Access to all tablet control buttons and ports while the tablet is docked
• Docking connector gasket provides additional water resistance and protection.
• Downward-facing I/O ports, integrated cable strain relief and cable management system
• Floating docking connector for reliable connectivity in the most rugged environments
• One-hand docking and release for efficient use all day long
• Keyed lock for theft deterrence
• Gamber-Johnson rugged construction and reliability
• Composite design for reduced weight and durability

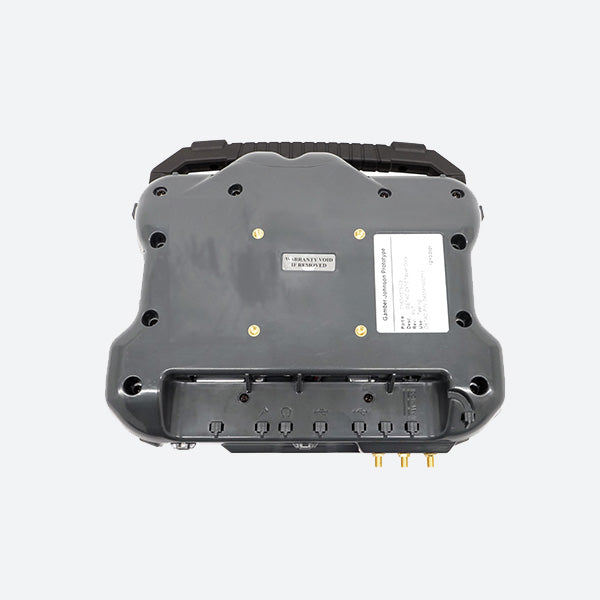

• VESA 75mm mounting pattern
• TRI-RF SMA

7160-1675-03 Specifications

Weight

2.6 lbs / 1.18 kg

Height

9.89 in / 25.12 cm

Width

11.49 in / 29.18 cm

Depth

4.15 in / 10.54 cm

Port Replicators:

Getac certified electronics
(2) Full Powered USB 2.0 (1.5A Output) - 4 pin
Power input - 19 VDC
(1 each) Headphone / Microphone
Tri RF Pass-through (optional)

Antenna Pass-through:

Tri RF

Power Supply:

Power adapter is not included, please use one of the following:

Getac 65W automotive power adapter with bare wire lead (7300-0744)
Getac 65W automotive power adapter with cigarette lighter connector (7300-0745)
Getac 120W automotive power adapter with bare wire lead (7300-0516)
Getac 120W automotive power adapter with cigarette lighter connector (7300-0471)
LIND 12-32V material handling isolated power adapter (7300-0413)
LIND 20-60V material handling isolated power adapter (7300-0412)
LIND 72-110V material handling isolated power adapter (7300-0416)
