Gamber Johnson Getac ZX10 Vehicle Cradle (Tri RF) 7160-1676-03

Gamber Johnson Cradle 7160-1676-03

Built exclusively for the Getac ZX10 rugged tablet, the Gamber Johnson Vehicle Cradle does not feature any port or power replication but includes Tri RF pass through. With Tri RF pass through, an operator can connect external antennas to boost the internal signals of the Getac ZX10 such as 4G LTE or GPS. The 7160-1676-03 does not have any port replication, if those features are needed please consider a Gamber Johnson vehicle dock such as 7160-1675-03. The 7160-1676-03 cradle features a keyed dock to secure the ZX10 against theft. With a VESA 75mm mounting pattern on the back, the 7160-1676-03 is ready to attach to any motion attachment that features the same. If you have questions about the optimal motion attachment or mounting solution for your Getac ZX10, our mounting and docking experts at Rugged or Die can help build a complete part list or provide a free quote, chat with us using our live chat feature which is operated during regular business hours (8-6PM Central) and always answered by a real person and never a bot!

7160-1676-03 Features

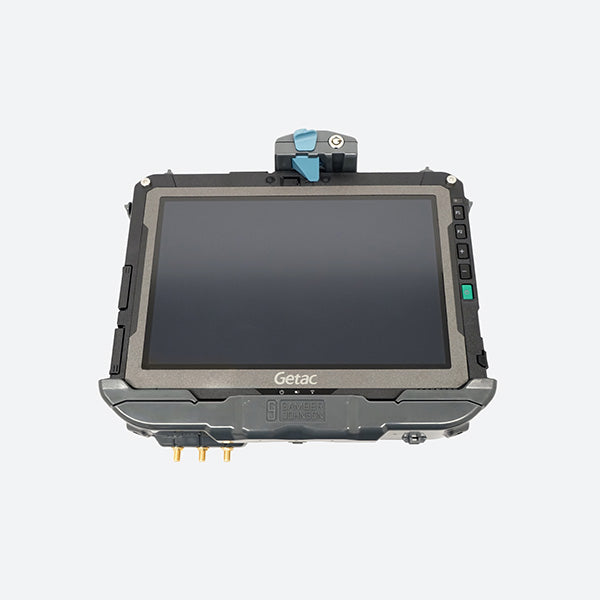

• Compatible with the Getac ZX10 tablet
• Cradle accommodates the tablet's card reader, extended battery, hand strap, stylus, barcode reader, and hard carry handle
• Access to all tablet control buttons and ports while the tablet is cradled
• One-hand docking and release for efficient use all day long
• Keyed lock for theft deterrence
• Gamber-Johnson rugged construction and reliability
• Composite design for reduced weight and durability

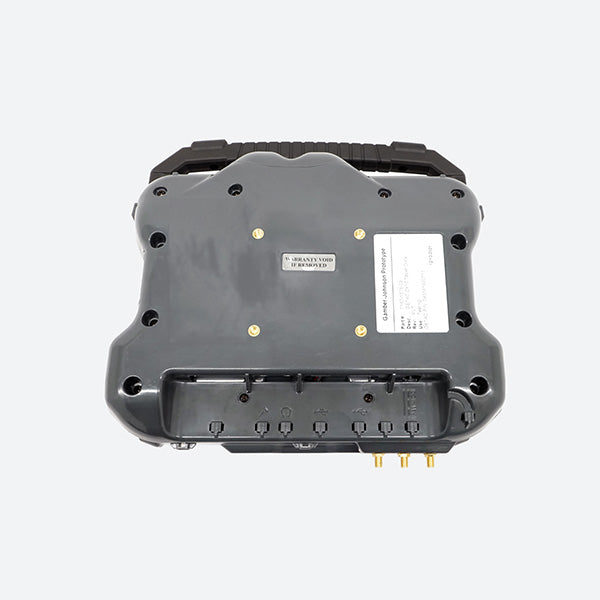

• VESA 75mm mounting pattern
• TRI-RF SMA

7160-1676-03 Specifications

Weight

2.4 lbs / 1.09 kg

Height

9.89 in / 25.12 cm

Width

11.49 in / 29.18 cm

Depth

4.15 in / 10.54 cm

Power Supply:

Testing Specifications:

Port Replicators:
