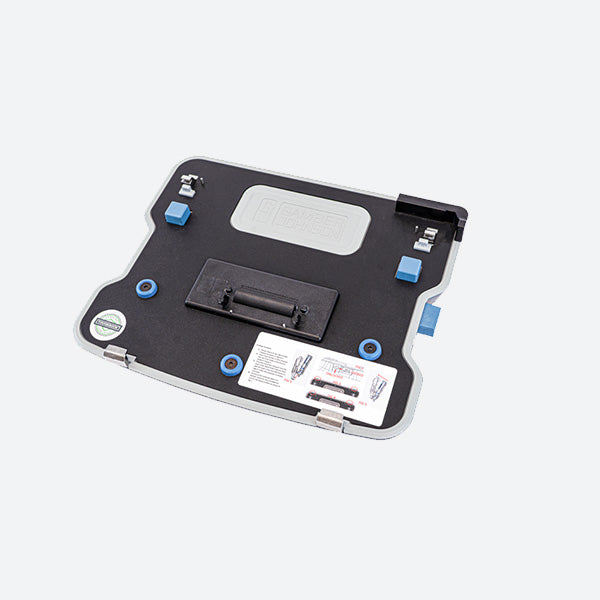

Gamber Johnson TOUGHBOOK 40 Full Port Replication Dock w No RF 7160-1728-00

Gamber Johnson Dock 7160-1728-00

Though the 7160-1728-00 features full port replication, this Gamber Johnson Docking Station for the Panasonic TOUGHBOOK 40 does not include any RF pass through. Full port replication on the FZ-40 dock includes a number of ports including: Ethernet, Serial, HDMI, USB-A, USB-C, and USB-C with Display Port. To complete the mounting solution, other equipment will need to be purchased to mount the dock securely in the vehicle. If you have questions about completing the mounting solution for your Panasonic TOUGHBOOK FZ-40 or if you are in the market for the FZ-40 computer itself, Rugged or Die is pleased to offer the entire Gamber Johnson and Panasonic TOUGHBOOK catalog, email us at sales@ruggedordie.com or fill out a contact form for a free quote!

7160-1728-00 Features

  • Uses Panasonic TOUGHBOOK Certified electronics for reliable connectivity
  • Access to all computer control buttons and most ports while docked

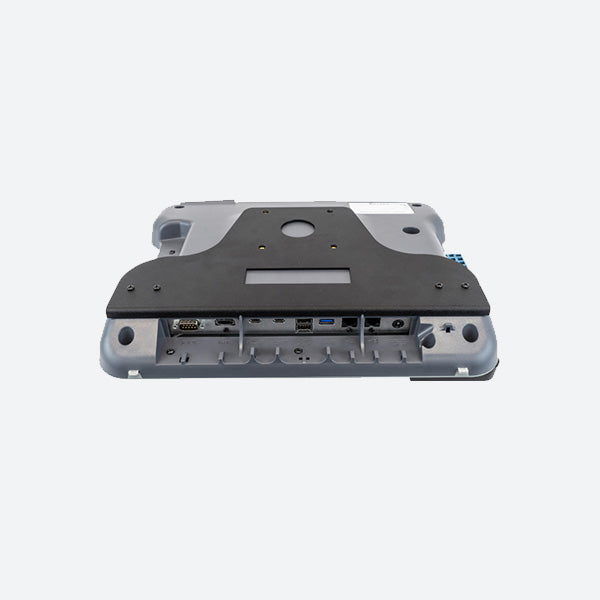

  • Rear-facing I/O ports, integrated cable strain relief and cable management system
  • LED indicator light reflects docking connection to ensure proper docking
  • Shutter cover for extra docking connector protection
  • Designed to the footprint of the computer to preserve cabin space
  • Right-facing docking/release latch for easy docking and undocking
  • Keyed lock for theft deterrence
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75mm mounting pattern for compatibility with a variety of Gamber-Johnson motion attachments

Kit Includes:

  • Panasonic TOUGHBOOK 40 Docking Station, Full Port, No RF (7160-1728-00)
  • Mounting Hardware
  • Installation Instructions

7160-1728-00 Specifications

Weight

4.5 lbs / 2.04 kg

Height

2.8 in / 7.11 cm

Width

14.65 in / 37.21 cm

Depth

12.31 in / 31.27 cm

Port Replicators:

Panasonic Certified Electronics
(2) Ethernet; RJ45
(1) Serial; 9-pin
(1) HDMI; 19 pin
(2) USB-C 10Gbps (Max 1.5A@5V) with DisplayPort Alternate Mode*
(1) USB-C 0.5Gbps (500mA) front facing
(1) USB-A 10Gbps (900mA)
(2) USB-A 0.5Gbps (500mA)
Power input (15V)
*The two USB Type-C ports support DisplayPort Alternate Mode. (When the two ports are connected, only one port can be used for display output. The port closer to the HDMI port takes priority).

Antenna Pass-through:

No RF

Power Supply:

Power adapter is not included, please use one of the following:

LIND 11-16VDC Auto Power Adapter with LED light and cigarette lighter connector (7300-0216)
LIND 11-16VDC Auto Power Adapter with bare wire lead (7300-0461)
LIND 11-16VDC Auto Power Adapter with cigarette lighter connector (7300-0462)
