Gamber Johnson TOUGHBOOK 40 Full Port Replication Dock w Quad RF 7160-1728-02

Gamber Johnson Dock 7160-1728-02

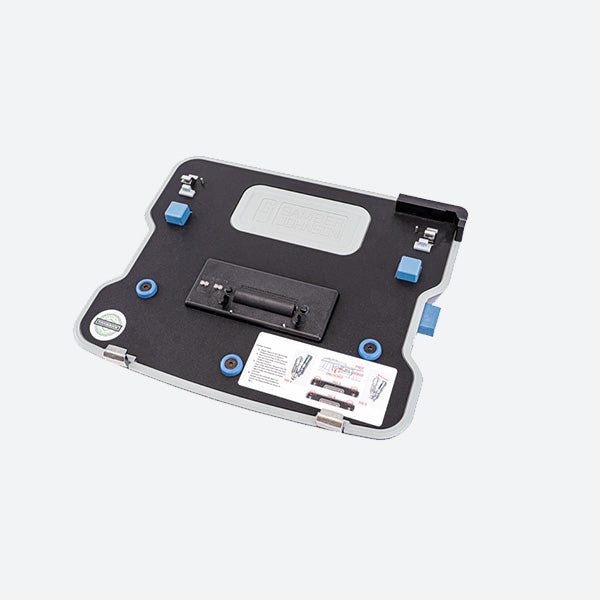

The most feature rich FZ-40 dock, the Gamber Johnson Docking Station 7160-1728-02 comes with Full Port replication and Quad RF pass through. Full port replication includes Ethernet, Serial, HDMI, USB-A, USB-C, and USB-C with Display Port. With Quad RF, the 7160-1728-02 allows an operator to connect external antennas to boost the internal signals of the FZ-40 laptop. The 7160-1728-02 preserves valuable cabin space by being built to match the footprint of the FZ-40 TOUGHBOOK. If you need help completing the mounting solution for your Panasonic TOUGHBOOK FZ-40 or if you are in the market for the FZ-40 computer itself, Rugged or Die is pleased to offer the entire Gamber Johnson and Panasonic TOUGHBOOK catalog, email us at sales@ruggedordie.com for a free quote!

7160-1728-02 Features

  • Uses Panasonic TOUGHBOOK Certified electronics for reliable connectivity
  • Access to all computer control buttons and most ports while docked

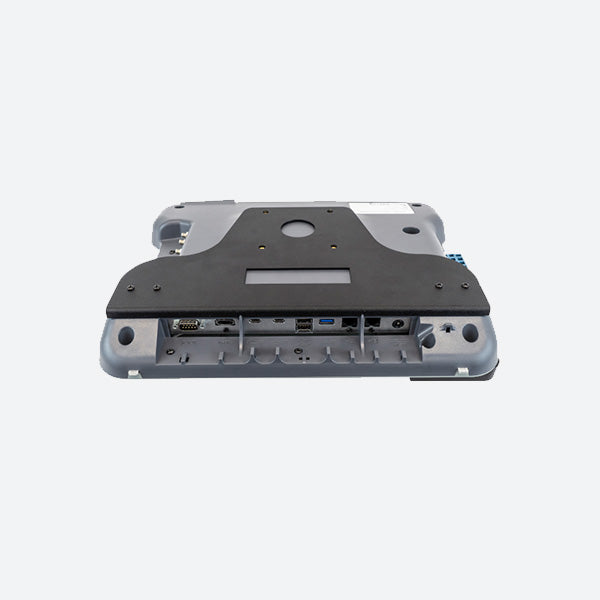

  • Rear-facing I/O ports, integrated cable strain relief and cable management system
  • LED indicator light reflects docking connection to ensure proper docking
  • Shutter cover for extra docking connector protection
  • Designed to the footprint of the computer to preserve cabin space

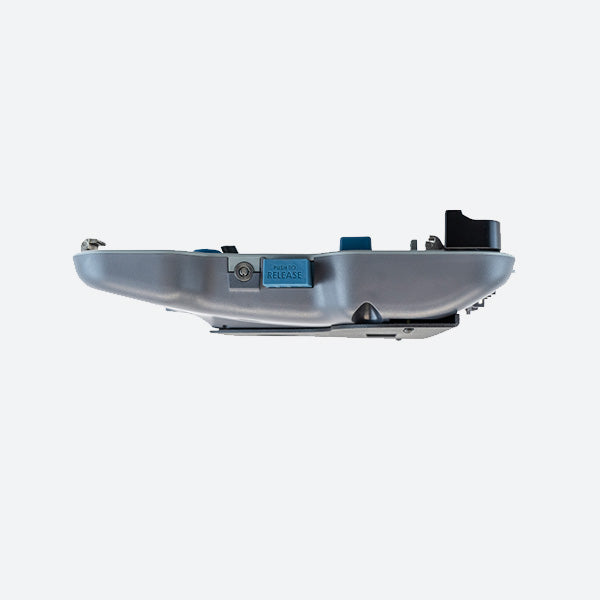

  • Right-facing docking/release latch for easy docking and undocking
  • Keyed lock for theft deterrence
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75mm mounting pattern for compatibility with a variety of Gamber-Johnson motion attachments
  • Quad RF SMA

Kit Includes:

  • Panasonic TOUGHBOOK 40 Docking Station, Full Port, Quad RF (7160-1728-02)
  • Mounting Hardware
  • Installation Instructions

7160-1728-02 Specifications

Weight

4.5 lbs / 2.04 kg

Height

2.8 in / 7.11 cm

Width

14.65 in / 37.21 cm

Depth

12.31 in / 31.27 cm

Port Replicators:

Panasonic Certified Electronics
(2) Ethernet; RJ45
(1) Serial; 9-pin
(1) HDMI; 19 pin
(2) USB-C 10Gbps (Max 1.5A@5V) with DisplayPort Alternate Mode*
(1) USB-C 0.5Gbps (500mA) front facing
(1) USB-A 10Gbps (900mA)
(2) USB-A 0.5Gbps (500mA)
Power input (15V)
*The two USB Type-C ports support DisplayPort Alternate Mode. (When the two ports are connected, only one port can be used for display output. The port closer to the HDMI port takes priority).

Antenna Pass-through:

Quad RF

Power Supply:

Power adapter is not included, please use one of the following:

LIND 11-16VDC Auto Power Adapter with LED light and cigarette lighter connector (7300-0216)
LIND 11-16VDC Auto Power Adapter with bare wire lead (7300-0461)
LIND 11-16VDC Auto Power Adapter with cigarette lighter connector (7300-0462)
