Gamber Johnson TOUGHBOOK 40 Lite Port Replication Dock No RF 7160-1728-06
Gamber Johnson Dock 7160-1728-06
Built specifically for the Panasonic TOUGHBOOK FZ-40, the Gamber Johnson Docking Station 7160-1728-06 comes with Lite Port replication but no RF pass through. If RF pass through is a required feature (to connect external antennas) please consider Gamber Johnson dock part number 7160-1728-07. Lite port replication includes Ethernet, Serial, USB-A, and USB-C ports. The 7160-1728-06 preserves valuable cabin space by being built to match the footprint of the FZ-40 TOUGHBOOK. If you need help completing the mounting solution for your Panasonic TOUGHBOOK FZ-40 or if you are in the market for the FZ-40 laptop itself, Rugged or Die is pleased to offer the entire Gamber Johnson and Panasonic TOUGHBOOK catalog, email us at sales@ruggedordie.com for a free quote!
7160-1728-06 Features
- Uses Panasonic TOUGHBOOK Certified electronics for reliable connectivity
- Access to all computer control buttons and most ports while docked
- Rear-facing I/O ports, integrated cable strain relief and cable management system
- LED indicator light reflects docking connection to ensure proper docking
- Shutter cover for extra docking connector protection
- Designed to the footprint of the computer to preserve cabin space
- Right-facing docking/release latch for easy docking and undocking
- Keyed lock for theft deterrence
- Gamber-Johnson rugged construction and reliability
- Composite design for reduced weight and durability
- VESA 75mm mounting pattern for compatibility with a variety of Gamber-Johnson motion attachments
Kit Includes:
- Panasonic TOUGHBOOK 40 Docking Station, Lite Port, No RF (7160-1728-06)
- Mounting Hardware
- Installation Instructions
7160-1728-06 Specifications
Weight
4.5 lbs / 2.04 kg
Height
2.8 in / 7.11 cm
Width
14.65 in / 37.21 cm
Depth
12.31 in / 31.27 cm

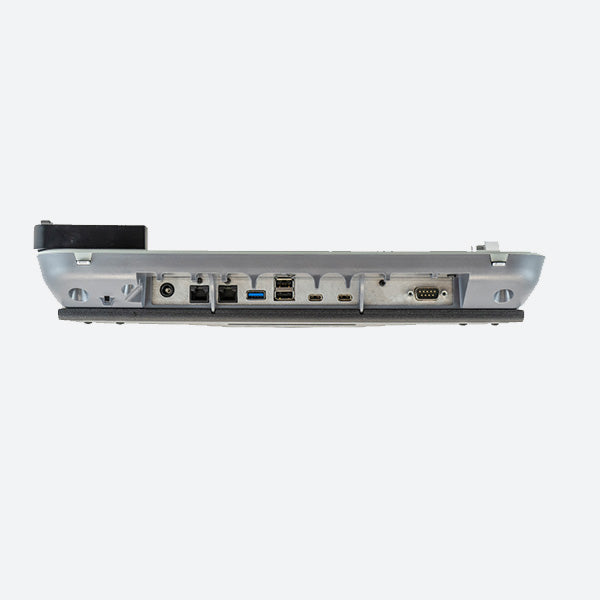

Port Replicators:
Panasonic Certified Electronics
(2) Ethernet; RJ45
(1) Serial, 9-pin
(2) USB-C 3.2 (Max 1.5A@5V)
(1) USB-C 2.0 (500mA) front facing
(1) USB-A 3.2 (900mA) - 9 pin
(2) USB-A 2.0 (500mA) - 4 pin
Power input (15V)
Antenna Pass-through:
No RF
Power Supply:
Power adapter is not included, please use one of the following:
LIND 11-16VDC Auto Power Adapter with LED light and cigarette lighter connector (7300-0216)
LIND 11-16VDC Auto Power Adapter with bare wire lead (7300-0461)
LIND 11-16VDC Auto Power Adapter with cigarette lighter connector (7300-0462)
