Gamber Johnson TOUGHBOOK 40 Lite Port Replication Dock w Quad RF 7160-1728-07

Gamber Johnson Dock 7160-1728-07

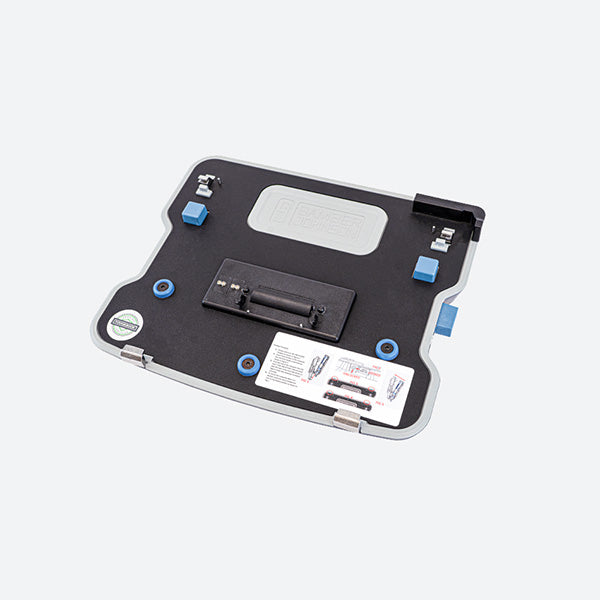

Designed for the Panasonic TOUGHBOOK FZ-40, the Gamber Johnson Docking Station 7160-1728-07 comes with Lite Port replication and Quad RF pass through. Lite port replication includes Ethernet, Serial, USB-A, and USB-C ports. If an HDMI or USB-C with DisplayPort Alternate Mode are required for more advanced displays, please consider a Gamber Johnson FZ-40 dock with full port replication such as Gamber Johnson part number 7160-1728-02. With Quad RF, this FZ-40 docking station can have external antennas attached to boost the internal signals of the TOUGHBOOK such as 4G LTE or GPS. The 7160-1728-07 is built to match the footprint of the FZ-40 TOUGHBOOK, which preserves valuable cabin space in the vehicle. If you need help completing the mounting solution for your Panasonic TOUGHBOOK FZ-40 or if you are in the market for the FZ-40 laptop itself, Rugged or Die is pleased to offer the entire Gamber Johnson and Panasonic TOUGHBOOK catalog, email us at sales@ruggedordie.com for a free quote!

7160-1728-07 Features

  • Uses Panasonic TOUGHBOOK Certified electronics for reliable connectivity
  • Access to all computer control buttons and most ports while docked
  • Rear-facing I/O ports, integrated cable strain relief and cable management system
  • LED indicator light reflects docking connection to ensure proper docking
  • Shutter cover for extra docking connector protection
  • Designed to the footprint of the computer to preserve cabin space
  • Right-facing docking/release latch for easy docking and undocking
  • Keyed lock for theft deterrence Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75mm mounting pattern for compatibility with a variety of Gamber-Johnson motion attachments
  • Quad RF SMA

Kit Includes:

  • Panasonic TOUGHBOOK 40 Docking Station, Lite Port, Quad RF (7160-1728-07)
  • Mounting Hardware
  • Installation Instructions

7160-1728-07 Specifications

Weight

4.5 lbs / 2.04 kg

Height

2.8 in / 7.11 cm

Width

14.65 in / 37.21 cm

Depth

12.31 in / 31.27 cm

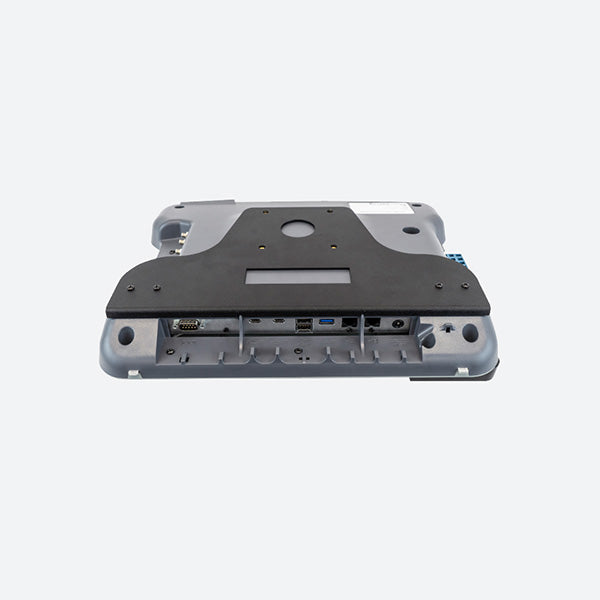

Port Replicators:

Panasonic Certified Electronics
(2) Ethernet; RJ45
(1) Serial; 9-pin
(2) USB-C 3.2 (Max 1.5A@5V)
(1) USB-C 2.0 (500mA) front facing
(1) USB-A 3.2 (900mA) - 9 pin
(2) USB-A 2.0 (500mA) - 4 pin
Power input (15V)

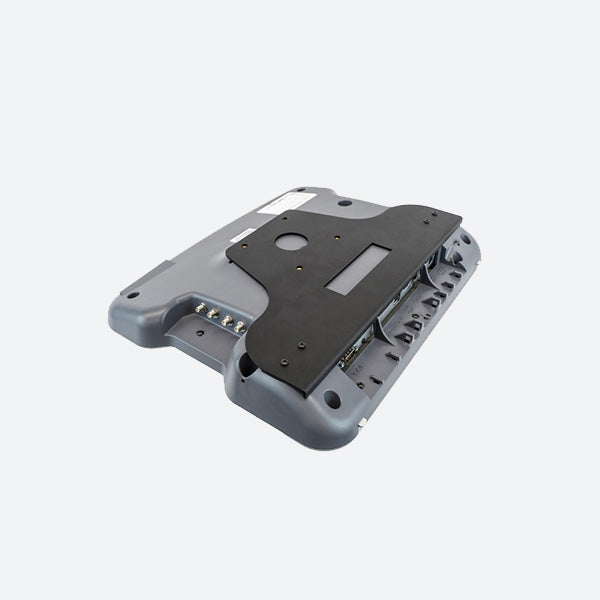

Antenna Pass-through:

Quad RF

Power Supply:

Power adapter is not included, please use one of the following:

LIND 11-16VDC Auto Power Adapter with LED light and cigarette lighter connector (7300-0216)
LIND 11-16VDC Auto Power Adapter with bare wire lead (7300-0461)
LIND 11-16VDC Auto Power Adapter with cigarette lighter connector (7300-0462)
