Gamber-Johnson

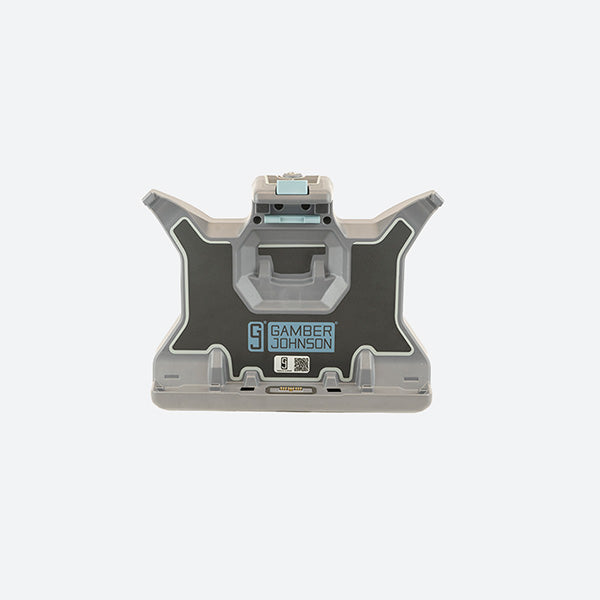

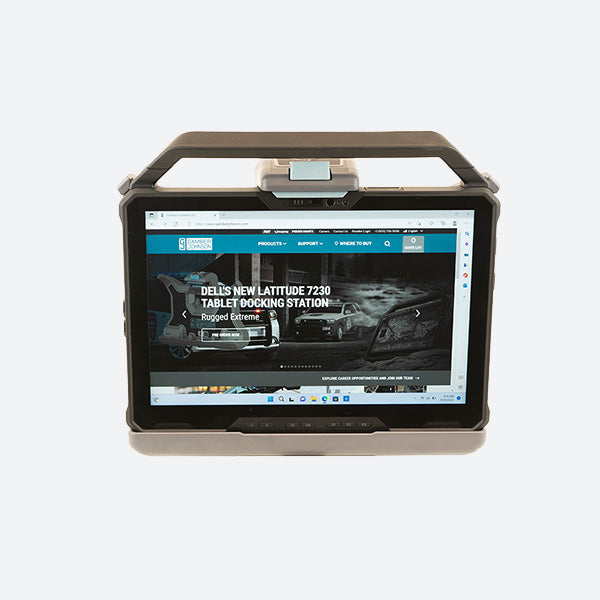

Gamber Johnson Dell Latitude 7230 Lite Port Replication Vehicle Dock NO RF 7160-1772-00

Gamber Johnson Dock 7160-1772-00

Designed for the Dell Latitude 7230 Rugged Extreme Tablet this Gamber Johnson Vehicle Docking Station comes with Lite Port replication but does not feature any RF pass through. Lite port replication on the Gamber Johnson dock includes power input, an RJ45 port, RS232 Serial port, 2 fully powered USB-A ports and 1 USB-C port. Port replication on the dock decreases the wear and tear that would normally accumulate on the Dell Latitude 7230 itself. If your require RF pass through please consider the Quad RF pass through dock (Gamber Johnson part number 7160-1772-04.) If you would like to give us a call at 816-388-0035 a Rugged or Die sales rep would be happy to help assemble the list of optimal mounting equipment to complete your vehicle tablet mount.

7160-1772-00 Features

  • Compatible with the Dell Latitude 7230 Rugged Extreme tablet computer
  • Accommodates the tablet’s hand strap or magnet mount attachment
  • Access to all tablet control buttons and ports while the tablet is docked
  • Downward-facing I/O ports; integrated cable strain relief and cable management system
  • Docking connector gasket for additional water protection
  • One-handed docking and release for efficient use all day long
  • Keyed lock for theft deterrence
  • Gamber-Johnson's rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75 mounting pattern with 1/4-20 mounting studs for easy mounting with Gamber-Johnson mounts and motion attachments

Kit Includes:

  • Dell Latitude 7230 Rugged Extreme Tablet Vehicle Docking Station, Lite Port - NO RF (7160-1772-00)
  • Mounting Hardware
  • Installation Instructions

7160-1772-00 Specifications

Weight

2.8 lbs / 1.27 kg

Height

10.05 in / 25.53 cm

Width

12.14 in / 30.84 cm

Depth

3.18 in / 8.08 cm

Port Replicators:

USB-A 9-Pin - (2) Fully powered (1.5 Amps each)
USB-C (1) Fully powered (1.5 Amps)
RJ45 Ethernet (1)
RS232 Serial (1)
Power Input: 19.5 Vdc

Antenna Pass-through:

No RF

Power Supply:

Not included. Recommended power supply is Lind 120W power adapter (7300-0714).
