Gamber Johnson Dell Latitude 7230 Lite Port Replication Vehicle Dock QUAD RF 7160-1772-04

Gamber Johnson Dock 7160-1772-04

Designed for the Dell Latitude 7230 Rugged Extreme Tablet this Gamber Johnson Vehicle Docking Station comes with Lite Port replication and QUAD RF pass through. Lite port replication on the Gamber Johnson dock includes power input, an RJ45 port, RS232 Serial port, 2 fully powered USB-A ports and 1 USB-C port. Port replication on the dock decreases the wear and tear that would normally accumulate on the Dell Latitude 7230 itself. If your require an HDMI port, please consider a full port replication dock such as the Gamber Johnson 7160-1772-10. With Quad RF pass through, the 7160-1772-04 allows for the connection of external antennas to boost the signals on the 7230 such as 4G LTE or GPS. If you would like to give us a call at 816-388-0035 a Rugged or Die sales rep would be happy to help assemble the list of optimal mounting equipment to complete your vehicle computer mount.

7160-1772-04 Features

  • Compatible with the Dell Latitude 7230 Rugged Extreme tablet computer
  • Accommodates the tablet’s hand strap or magnet mount attachment
  • Access to all tablet control buttons and ports while the tablet is docked
  • Downward-facing I/O ports; integrated cable strain relief and cable management system
  • QUAD RF (SMA) pass-through for additional connectivity
  • Docking connector gasket for additional water protection
  • Keyed lock for theft deterrence
  • Gamber-Johnson's rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75 mounting pattern with 1/4-20 mounting studs for easy mounting with Gamber-Johnson mounts and motion attachments

Kit Includes:

  • Dell Latitude 7230 Rugged Extreme Tablet Vehicle Docking Station, Lite Port - QUAD RF (7160-1772-04)
  • Mounting Hardware
  • Installation Instructions

7160-1772-04 Specifications

Weight

2.8 lbs / 1.27 kg

Height

10.05 in / 25.53 cm

Width

12.14 in / 30.84 cm

Depth

3.18 in / 8.08 cm

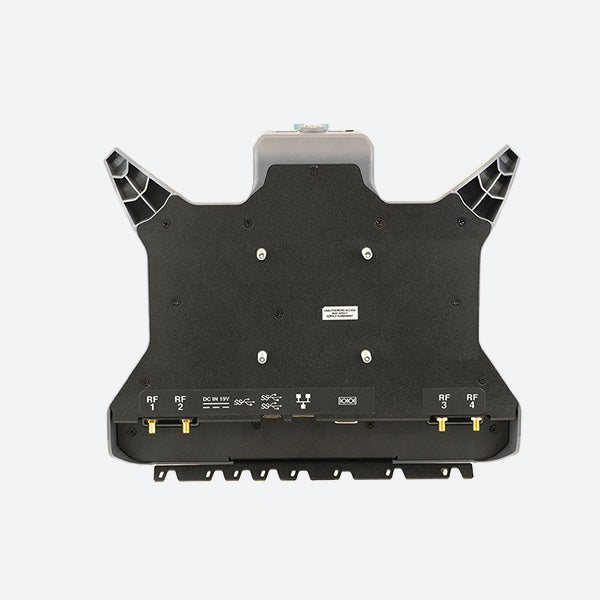

Port Replicators:

USB-A 9-Pin - (2) Fully powered (1.5 Amps each)
USB-C (1) Fully powered (1.5 Amps)
RJ45 Ethernet (1)
RS232 Serial (1)
Power Input: 19.5 Vdc
Antenna: Quad RF (SMA)

Antenna Pass-through:

Quad RF

Power Supply:

Not included. Recommended power supply is Lind 120W power adapter (7300-0714).

$731.87 USD
$731.87 USD
Shipping calculated at checkout.
