Gamber Johnson Dell Latitude 7230 Full Port Replication Vehicle Dock 7160-1772-10

Gamber Johnson Dock 7160-1772-10

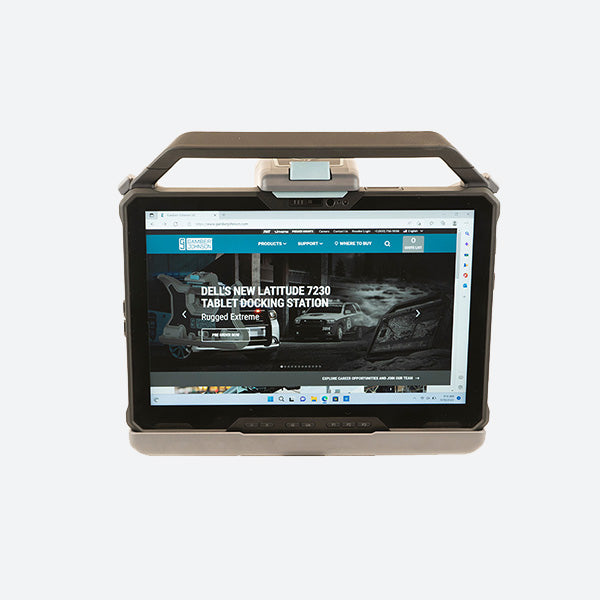

Built for the Dell Latitude 7230 Rugged Extreme Tablet this Gamber Johnson Vehicle Docking Station comes with Full Port replication but does not feature any RF pass through. Full port replication on the Gamber Johnson dock includes all lite port features such as power input, an RJ45 port, RS232 Serial port, 2 fully powered USB-A ports and 1 USB-C port but also includes an HDMI port for advanced display inputs. Port replication on the dock decreases the wear and tear that would normally accumulate on the Dell Latitude 7230 itself. If your require RF pass through please consider the Quad RF pass through dock (Gamber Johnson part number 7160-1772-14.) If you would like to give us an email at sales@ruggedordie.com a Rugged or Die sales rep would be happy to help assemble the list and provide a quote for optimal mounting equipment to complete your vehicle tablet mount.

7160-1772-10 Features

  • Compatible with the Dell Latitude 7230 Rugged Extreme tablet computer
  • Accommodates the tablet’s hand strap or magnet mount attachment
  • Access to all tablet control buttons and ports while the tablet is docked

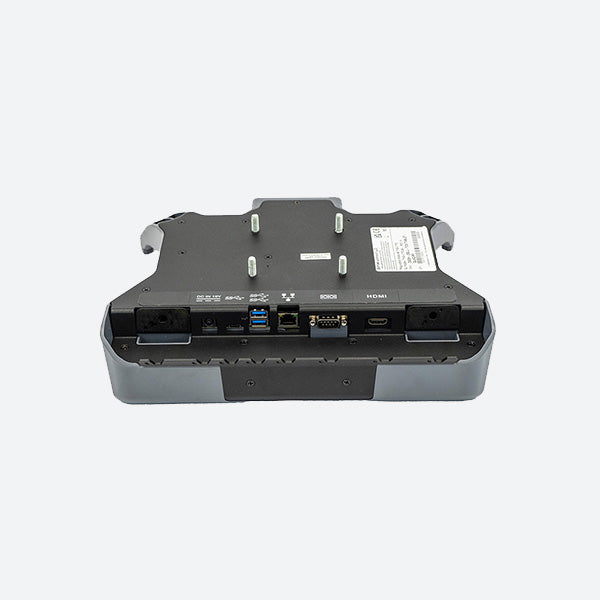

  • Downward-facing I/O ports; integrated cable strain relief and cable management system
  • HDMI video port replication for connecting an additional display
  • Docking connector gasket provides additional water protection
  • One-handed docking and release for efficient use all day long
  • Keyed lock for theft deterrence
  • Gamber-Johnson's rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75 mounting pattern with 1/4-20 mounting studs for easy mounting with Gamber-Johnson mounts and motion attachments

Kit Includes:

  • Dell Latitude 7230 Rugged Extreme Tablet Vehicle Docking Station, Full Port - NO RF (7160-1772-10)
  • Mounting Hardware
  • Installation Instructions

7160-1772-10 Specifications

Weight

2.8 lbs / 1.27 kg

Height

10.05 in / 25.53 cm

Width

12.14 in / 30.84 cm

Depth

3.18 in / 8.08 cm

Port Replicators:

USB-A 9-Pin - (2) Fully powered (1.5 Amps each)
USB-C (1) Fully powered (1.5 Amps)
RJ45 Ethernet (1)
RS232 Serial (1)
Power Input: 19.5 Vdc (Dell verified)
HDMI 1.1 (1080p)

Antenna Pass-through:

No RF

Power Supply:

Not included. Recommended power supply is Lind 120W power adapter (7300-0714).

$683.32 USD
$683.32 USD
Shipping calculated at checkout.
