Gamber-Johnson

Gamber Johnson Zebra ET4X 10 In. SLIM Full Port Replicating Dock 7160-1807-20

Gamber Johnson Dock 7160-1807-20

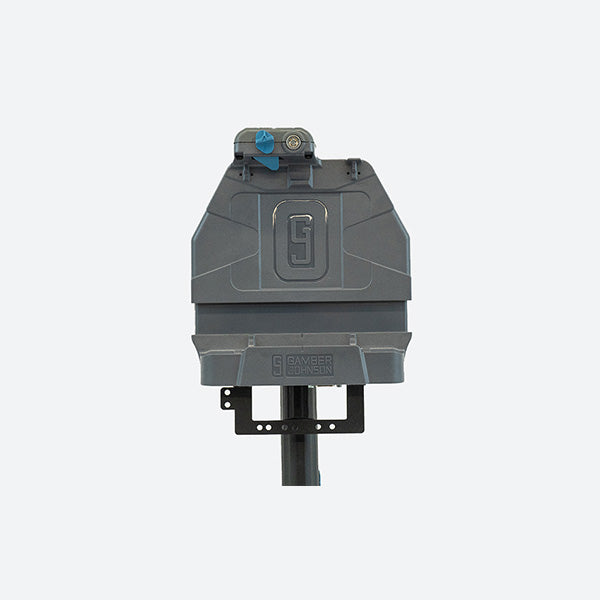

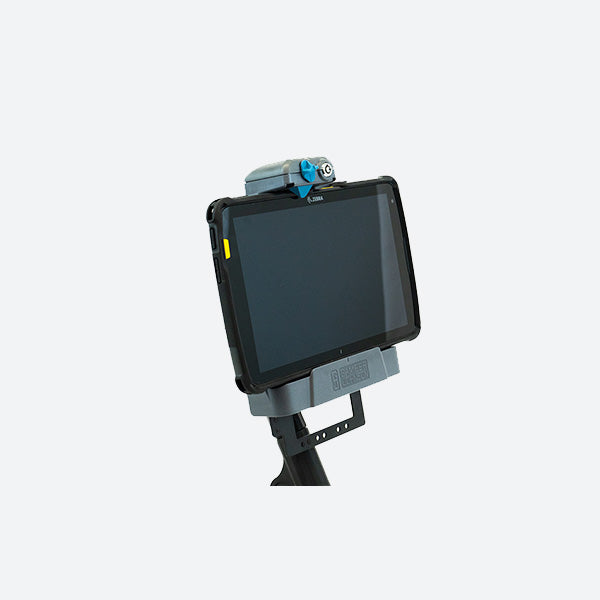

Built for the Zebra ET4X 10 inch tablet, the Gamber Johnson SLIM docking station 7160-1807-20 features Full Port Replication. The Gamber Johnson 7160-1807-20 dock features dual powered USBs, Serial, and ethernet port replication. The ports on the docking station save wear and tear that may be caused on the Zebra tablet itself. Each powered USB port provides 1.5A, which is strong enough to power a long-range scanner and a printer or other peripheral for an ideal material handling or warehouse management solution. Let our Rugged or Die sales team create a one-click bundle for your entire forklift mount solution, just send us your requirements by emailing us at sales@ruggedordie.com

7160-1807-20 Features

  • ebra’s rugged frame is required in order to work with the docking station
  • All features on tablet are functional while the tablet is safely docked
  • 12V power input required
  • Simple, one-handed docking and release operation:
    • Insert bottom of Zebra tablet into the docking station and push top of the tablet in until the lock engages.
    • Push latch button up with your thumb then remove the tablet from the docking station.
  • POGO pin connector provides power to charge the Zebra tablet while docked
  • Barrel Key lock for theft deterrence
  • VESA 75mm mounting pattern; compatible with Zirkona mounting products
  • Can be mounted on a flat vertical surface
  • Composite design to reduce overall weight

Kit Includes:

  • Zebra ET4X 10” SLIM Full Port Replication Docking Station
  • Mounting Hardware

7160-1807-20 Specifications

Weight

1.3 lbs / 0.59 kg

Height

10.1 in / 25.65 cm

Width

7.25 in / 18.42 cm

Depth

2.8in / 7.11 cm

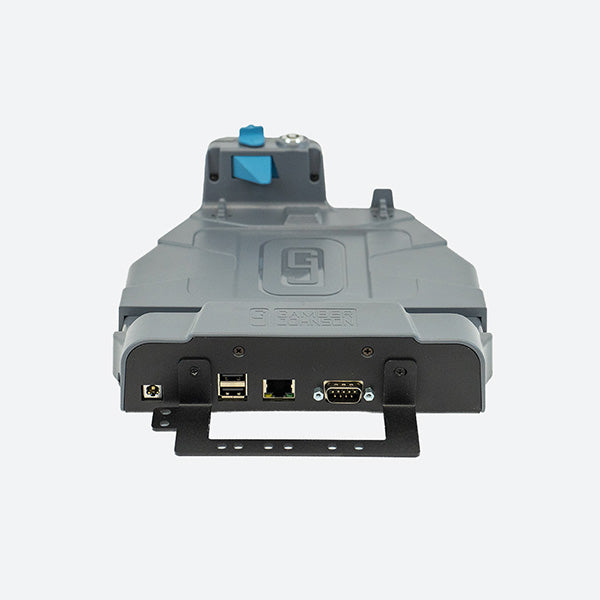

Port Replicators:

(2) USB 2.0
(1) Serial Port
(1) Ethernet Port

Power Supply:

None, use one of the following:

Lind 11-16V Automobile Power Adapter (7300-0415)LIND 12-32V Isolated Power Adapter (7300-0466)
LIND 20-60V Isolated Power Adapter (7300-0467)
LIND 72-110V Isolated Power Adapter (7300-0418)
Lind AC-12V Material Handling Power Adapter (7300-0472)

Compatibility:

Zebra ET4X 10" Rugged Tablet (Zebra's rugged frame is required in order to work with docking station)

InfoCase - ET40/45 - 10" DuraStrap X

$342.86 USD
$342.86 USD
Shipping calculated at checkout.
